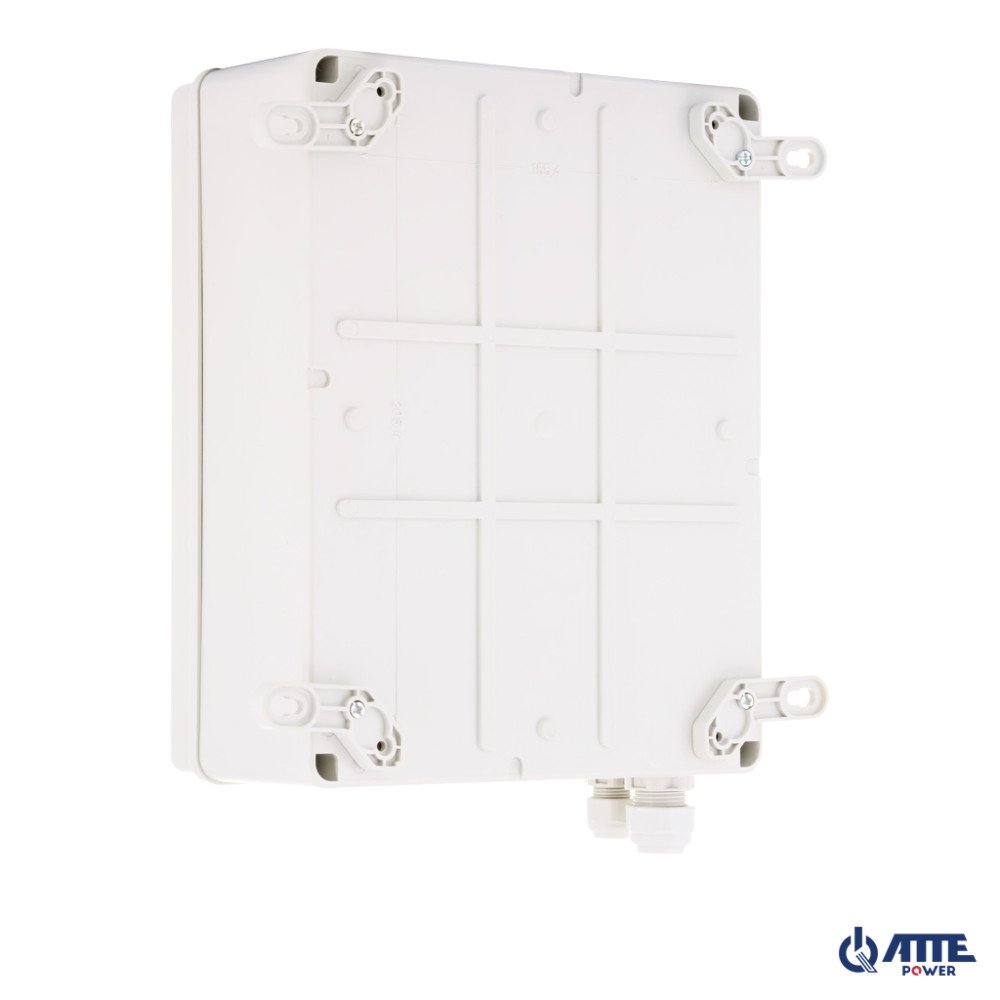

SMPS ATTE AUPS-70-120-XL1 buffer power supply

SMPS buffer power supply, Vin 230VAC, Vout 12VDC, Iout 6A, Pout 72W, in external housing ABOX-XL1 (1x AKU 18Ah), type AUPS-70-120-XL1

KEY FEATURES:

• a complete solution for powering CCTV devices in a small housing
• central power buffering
• long power supply time compared to classic systems using UPS power supplies
• low heating of the inside of the housing thanks to the high efficiency of the power supply
• easy installation of modules with holes in a 10.8 mm pitch

The device is a buffer power supply designed to power CCTV devices or access control systems. The device is a convenient solution to the problem of buffer power supply for cameras and other monitoring devices requiring uninterruptible power supply. The power supply allows you to create distributed monitoring systems with centrally buffered power supply. The systems are designed to work with lead-acid or dry SLA batteries.ABOX series external enclosuresare a convenient solution to the problem of protecting devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other unfavorable atmospheric factors. The models available in the offer are equipped with a mounting plate with special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the mounting plate. TECHNICAL DATA:

Case	plastic / gray RAL7035
Degree of protection of the housing	IP56
Housing dimensions (W × H × D)	300x220x120mm
Installation	wall-mounted, mounting brackets
Power supply type	impulse, efficiency 90%
Power supply power	80W – continuous power, 110W maximum power
Output voltage	11.5÷13.9V - mains power 10.5÷12.6V - battery operation
Battery charging current	1A or 2A selected with jumper JP1
Battery disconnect voltage	10.2V automatic return after the mains voltage returns
Overload protection	9A – power supply protection activation threshold
Output short circuit protection	6.3A – for battery operation (fuse) For mains operation, a restart of the power supply is required
Protection against reverse battery connection	fuse 6.3A
Technical outputs	open collector outputs, maximum 50mA per output OUF – no voltage +DC_OUT, ACF – no AC voltage
Start function when AC power is lost	automatic start-up of the power supply after connecting the battery
Operating temperature range	-10°C ... +40°C
