The OPV-16/RACK surge arrester effectively protects the transmission line by allowing the surge current to be discharged to the ground, thus ensuring proper surge protection for electronic devices.

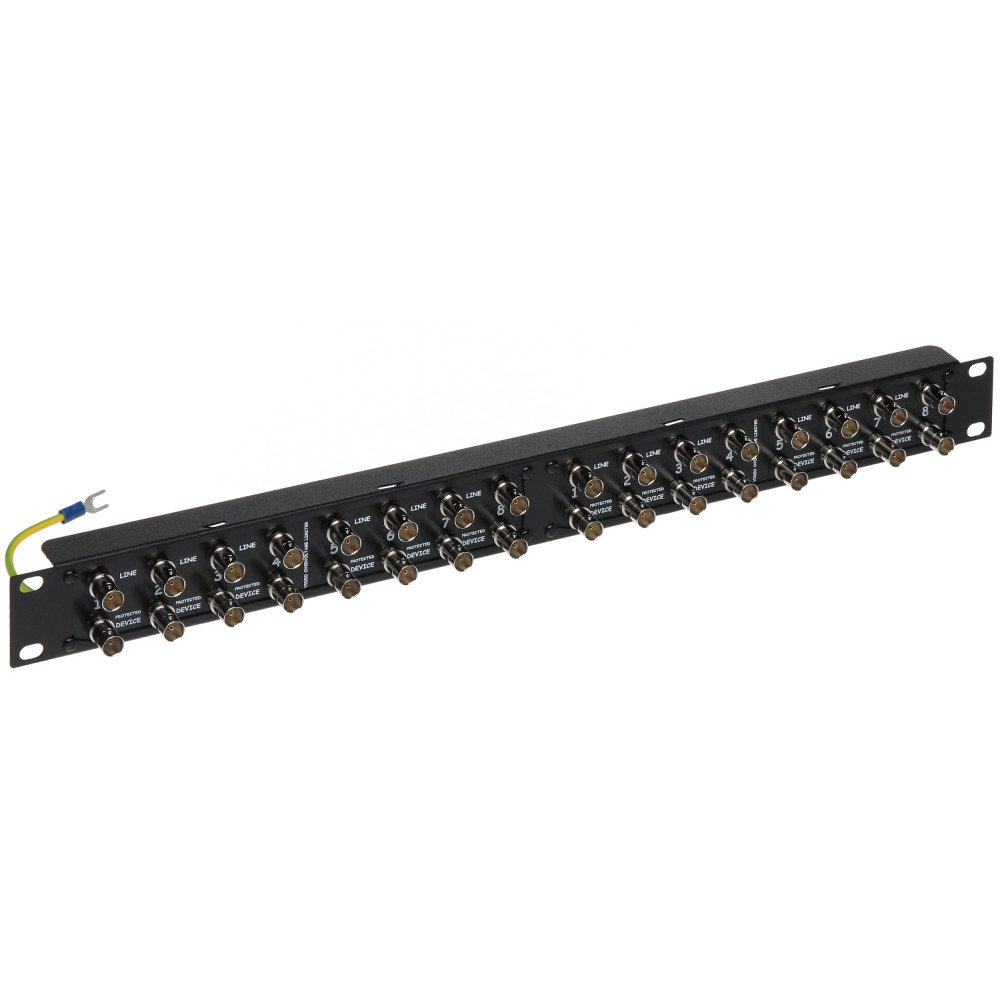

VIDEO OVERVOLTAGE LIMITER OPV-16/RACK
€599.81
Tax included
The OPV-16/RACK surge arrester effectively protects the transmission line by allowing the surge current to be discharged to the ground, thus ensuring proper surge protection for electronic devices.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The OPV-16/RACK surge arrester effectively protects the transmission line by allowing the surge current to be discharged to the ground, thus ensuring proper surge protection for electronic devices.
Our statistics collected on the website for many years indicate that approximately 25% of electronic equipment damage is caused by surges
OPV-16/RACK does not cause loss of signal quality and is a passive device that does not require power supply
ATTENTION! Before installation, please read the following recommendations: Connection work cannot be carried out during a storm. OPV-16/RACK should be connected to a good grounding installation. The limiter should be placed as close to the protected device as possible
OPV-16/RACK is not symmetrical and the protected device should be connected to the \"PROTECTED DEVICE\" BNC output sockets. However, the BNC \"LINE\" sockets are connected to a transmission line where overvoltage may occur
| Standard: |
|
| Protection Voltage: | 2.4 V (core/core) |
| Maximum discharge current: | 5 The |
| Line series impedance: | 1.1 Ω (Wire) |
| Capacity: | 7 pF |
| Frequency response: | 0 ... 140 MHz |
| Through-through damping: | 0.3 dB |
| Response time: | 15 ns |
| Ground: | Indirect, through a lead-out cable |
| Number of channels: | 16 |
| Input Connector Type: | BNC socket |
| Output Connector Type: | BNC socket |
| Case: | 1RU (19") |
| Working temperature: | -50 °C ... 55 °C |
| Permissible relative ambient humidity: | 95 % |
| Libra: | 0.55 kg |
| Dimensions: | 483 x 44 x 38 mm |
| Manufacturer / Brand: | DELTA |
| Guarantee: | 3 lata |
