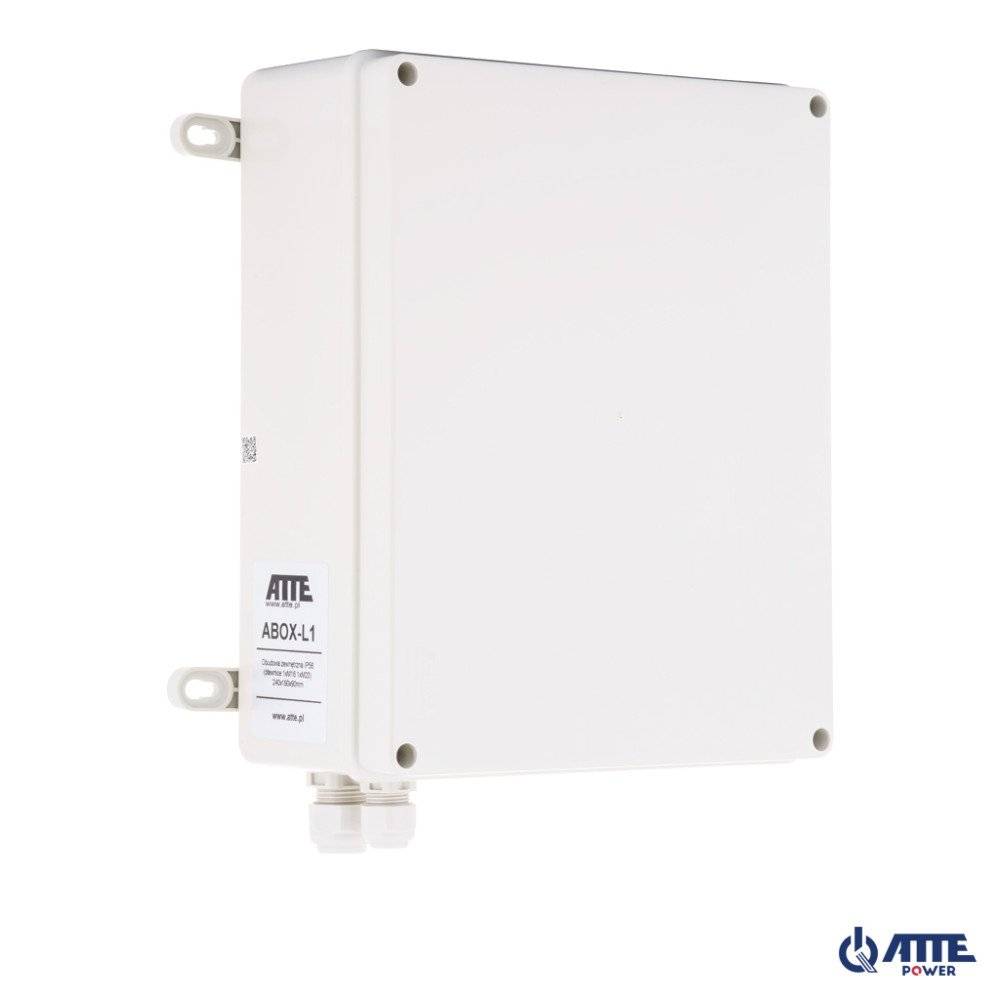

SMPS ATTE AUPS-70-120-L1 buffer power supply

SMPS buffer power supply, Vin 230VAC, Vout 12VDC, Iout 6A, Pout 72W, in external housing ABOX-L1 (1x AKU 7Ah), type AUPS-70-120-L1

KEY FEATURES:

• a complete solution for powering CCTV devices in a small housing
• central power buffering
• long power supply time compared to classic systems using UPS power supplies
• low heating of the inside of the housing thanks to the high efficiency of the power supply
• easy installation of modules with holes in a 10.8 mm pitch

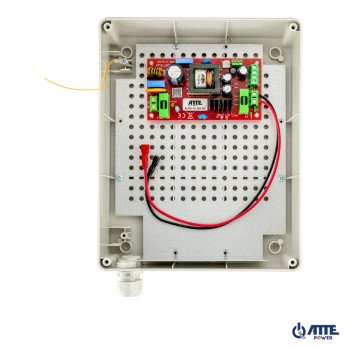

The device is a buffer power supply designed to power CCTV devices or access control systems. The device is a convenient solution to the problem of buffer power supply for cameras and other monitoring devices requiring uninterruptible power supply. The power supply allows you to create distributed monitoring systems with centrally buffered power supply. The systems are designed to work with lead-acid or dry SLA batteries.ABOX series external enclosuresare a convenient solution to the problem of protecting devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other unfavorable atmospheric factors. The models available in the offer are equipped with a mounting plate with special holes in a 10.8 mm pitch. It is compatible with the spacing of mounting holes of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any perforated part of the mounting plate. TECHNICAL DATA:

Battery	1 x gel or AGM battery 12V / 7Ah
Output voltage	12 VDC +/-15%
Output current	6A
Power supply power	72W
Efficiency	90% @70 W
Input voltage	190 ... 260 VAC, 50Hz
Battery charging current	1 A or 2 A (selected with jumper JP1)
Power supply input protection	3.15A slow-blow fuse
Power supply output protection	Mains power: Electronic overload protection at 9A (restart of the power supply required) Battery operation: 6.3A fuse
Battery circuit protection	Against reverse connection and overload: 6.3A fuse Against deep discharge: Battery disconnection for voltage below 10.2 V with automatic recovery
Signaling	LED1 (yellow) - presence of mains voltage LED2 (green) - presence of output voltage LED3 (red) - battery charging
Technical outputs	OUF – no voltage +DC_OUT ACF – no AC voltage Open collector outputs with a maximum load of 50mA (each output)
Start-up in the absence of AC power	Automatic startup of the power supply after connecting the battery

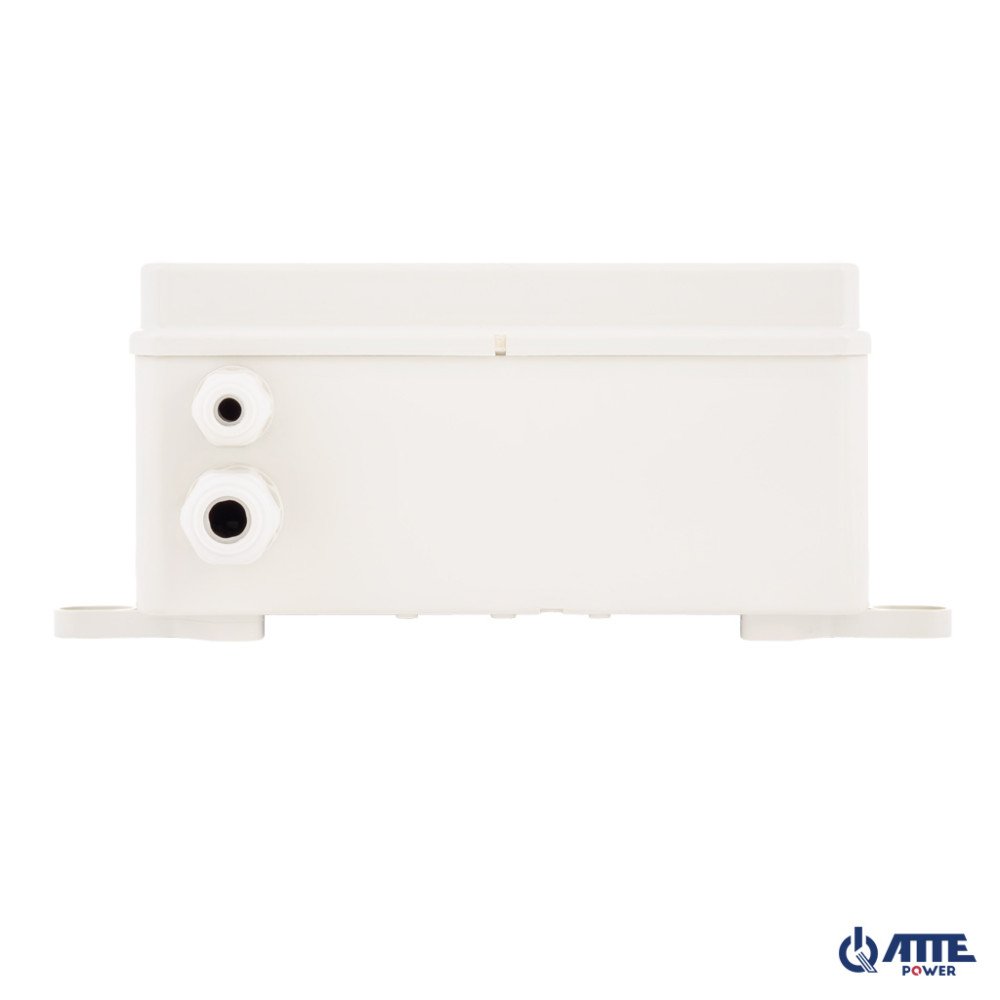

Housing design	ABOX-L1 housing Housing material - plastic Color gray (RAL7035) Installed glands 1 x M16, 1 x M20

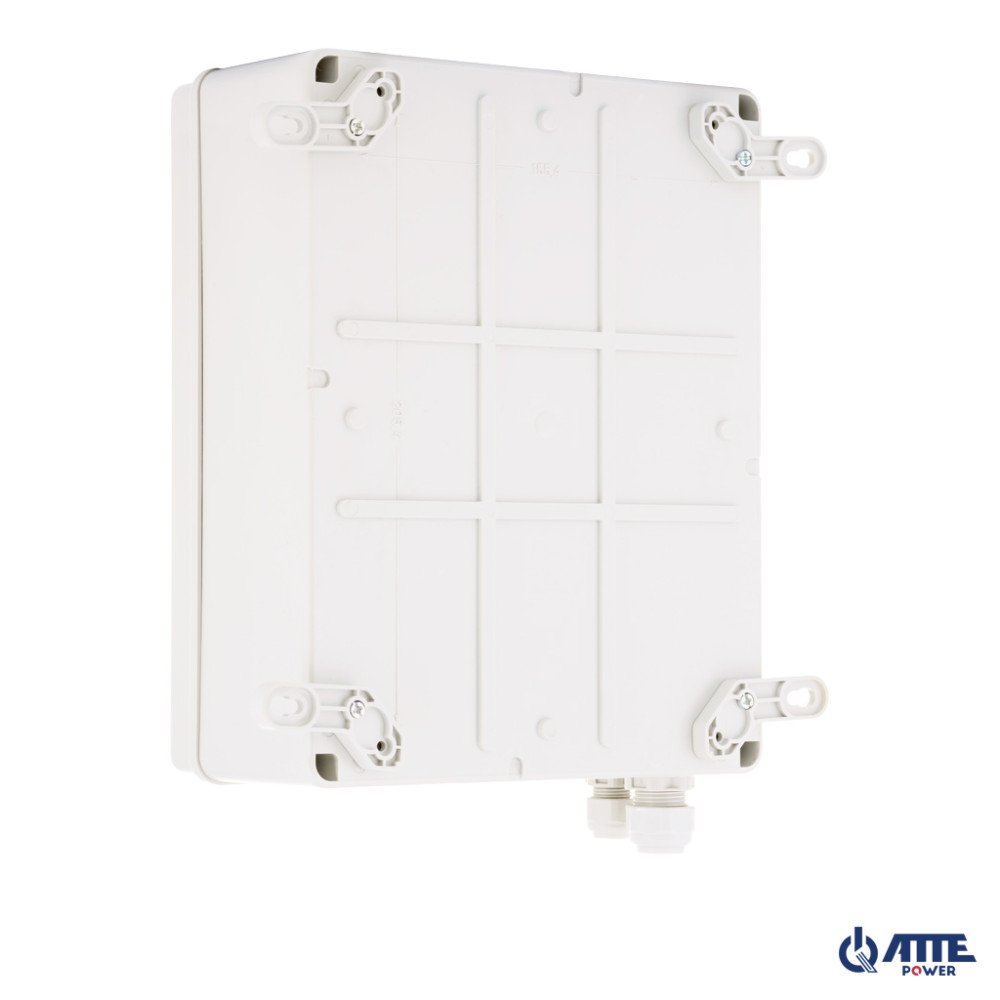

Installation	Wall mounting using mounting brackets (included)
Degree of protection	IP56
Operating temperature	-20 ... +50°C
Dimensions	240 x 190 x 90 mm
Libra	0,93 kg
