Protective strip protects devices against the effects of lightning or overvoltage from the AC 230V network

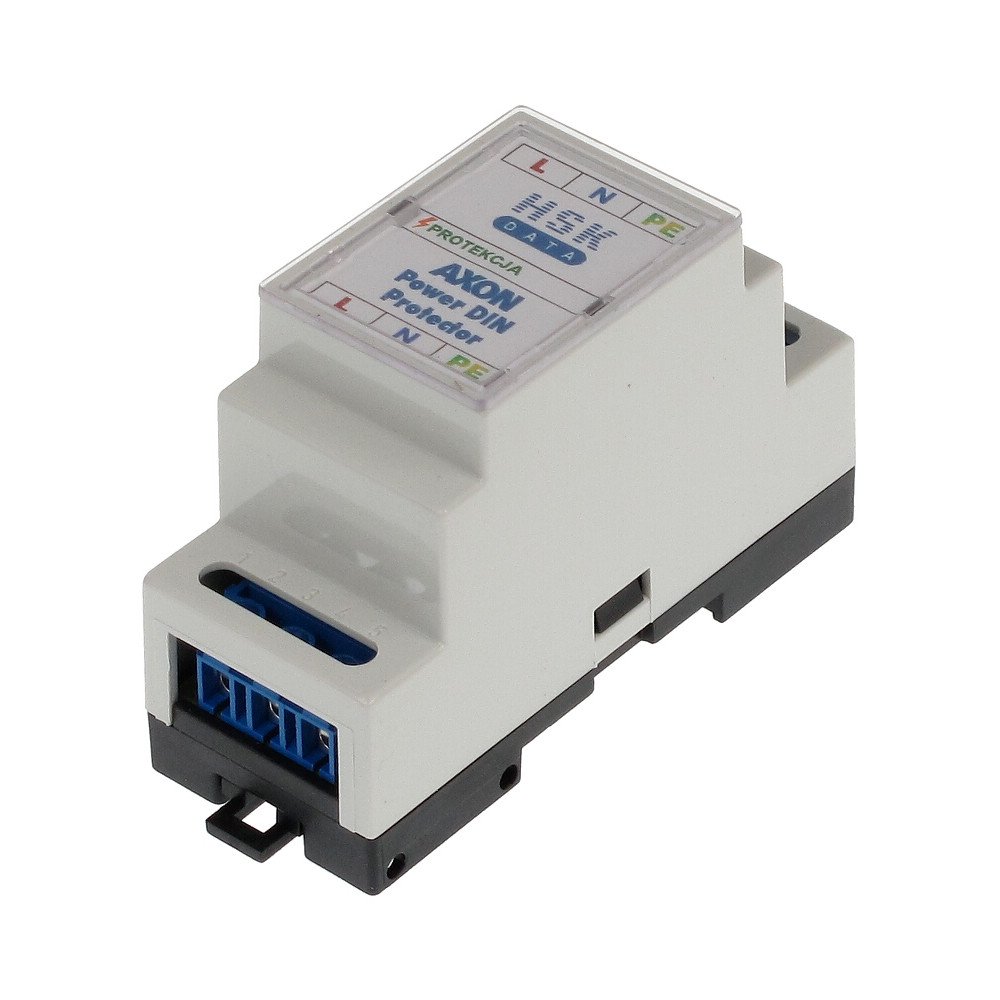

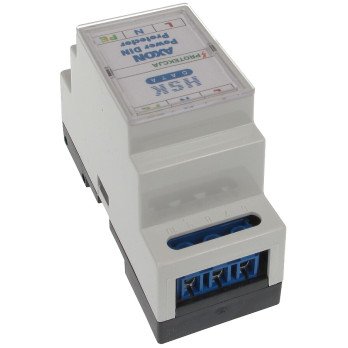

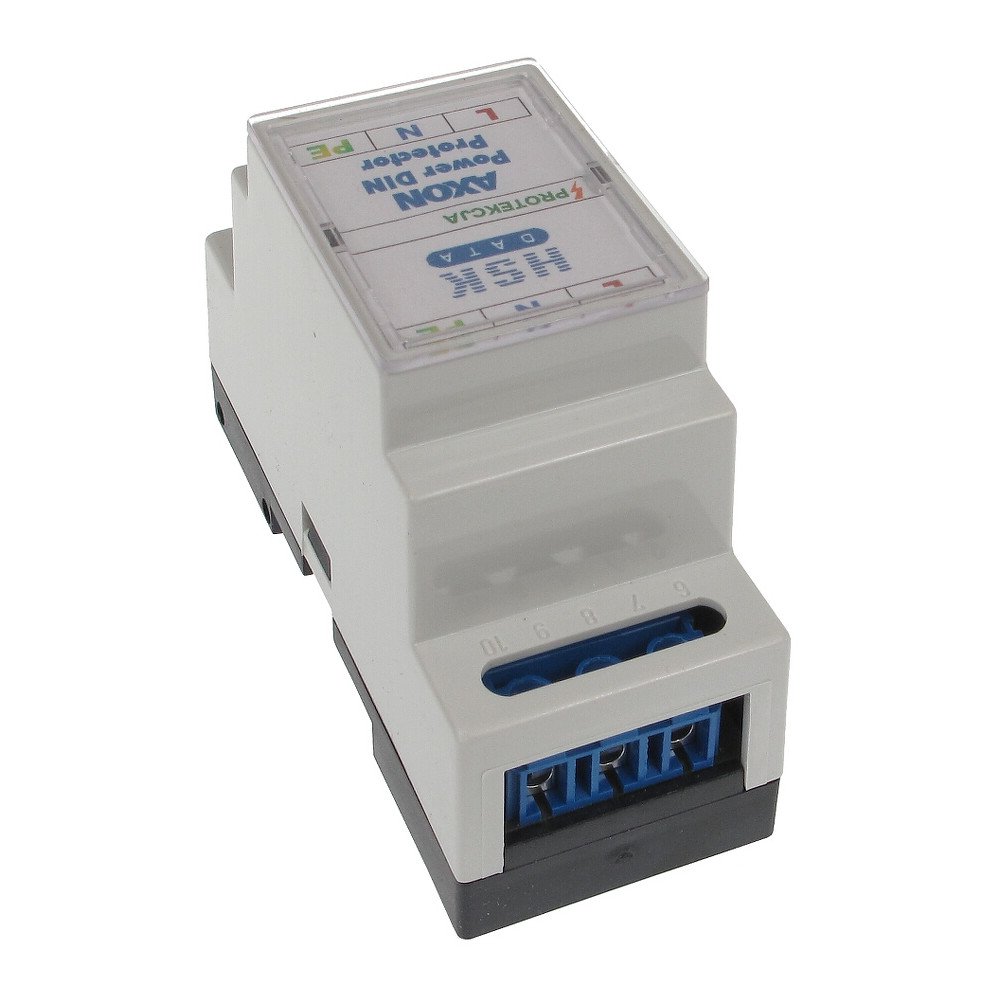

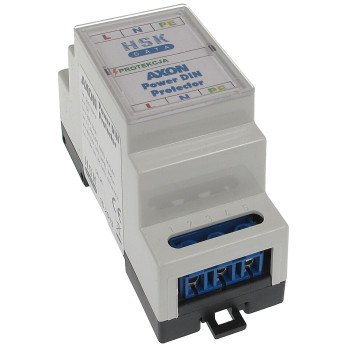

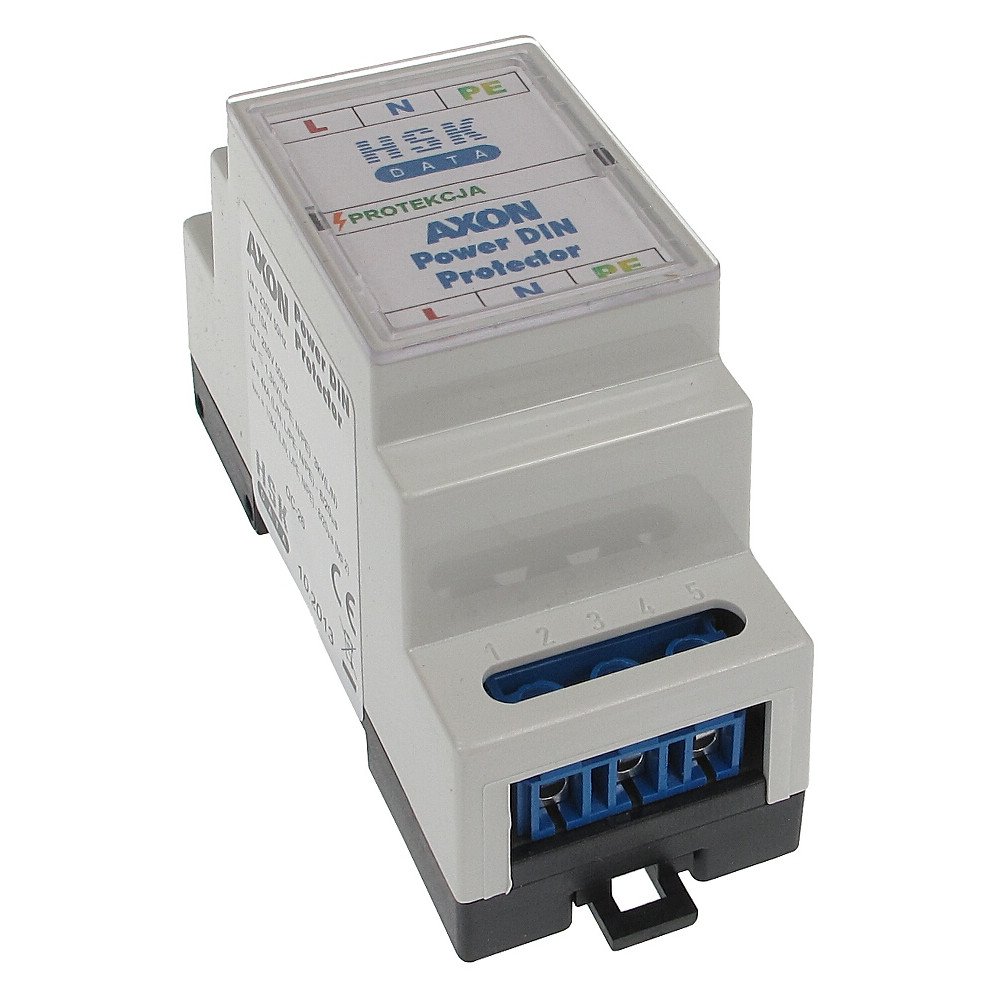

AXON-POWER/DIN OVERVOLTAGE LIMITER
€284.97
Tax included
Protective strip protects devices against the effects of lightning or overvoltage from the AC 230V network
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
A safety device that protects devices against the effects of lightning or overvoltage from the AC 230V network.

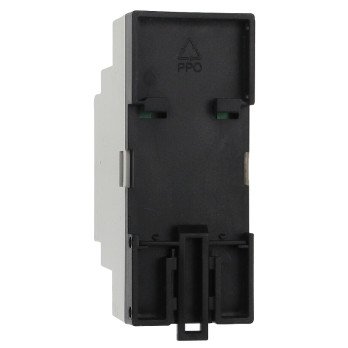

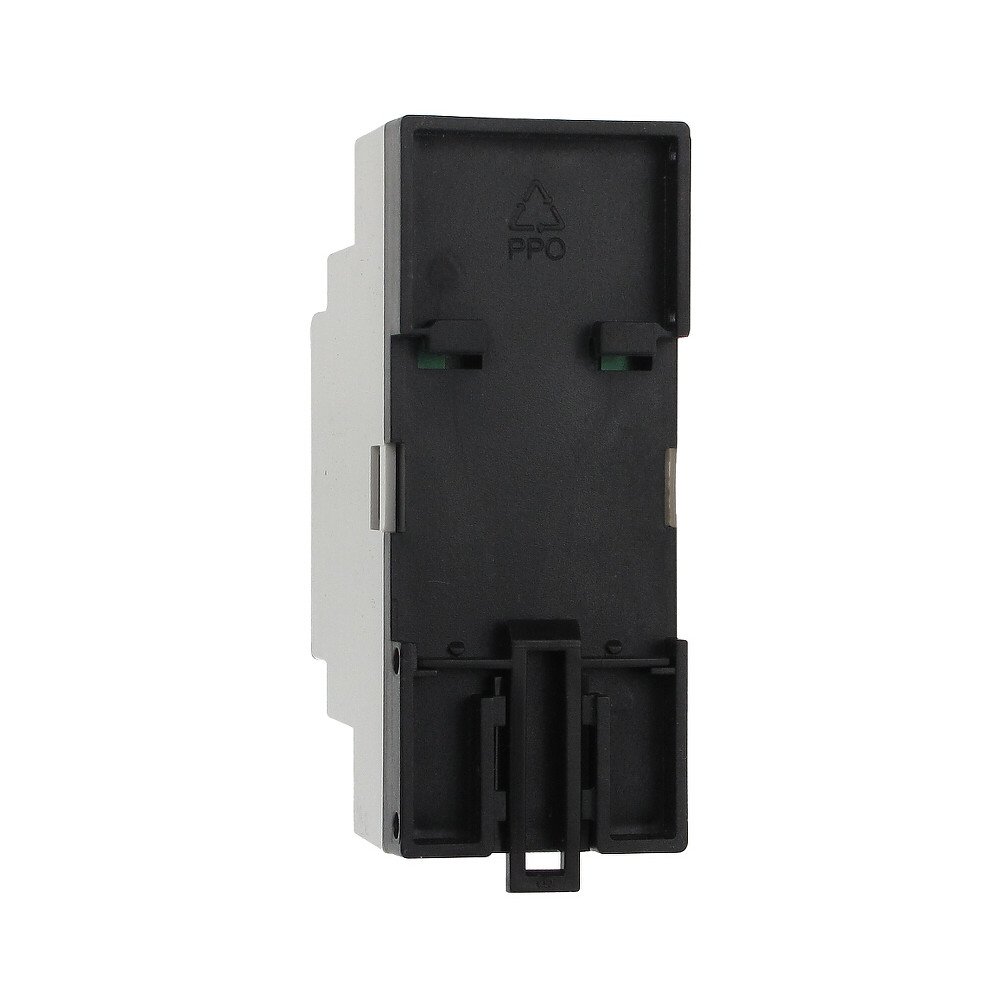

AXON-POWER/DIN is designed for mounting on a 35 mm DIN rail
The condition for proper operation of AXON-POWER/DIN is to connect it to an efficient earthing or PE protective conductor.
| Rated voltage: | 230 V AC / 50 Hz |
| Maximum voltage: | 250 V AC / 50 Hz |
| Rated current: | 10 A |
| Protection level Up L/PE, N/PE: | ≤ 1.3 kV |
| Protection level Up L/N: | ≤ 3 kV |
| Rated discharge current (L/N, L/PE, N/PE): | 4 kA - 8/20 µs |
| Maximum discharge current (L/N, L/PE, N/PE): | 10 3/20 μ is (Typ 2) |
| Operating status indication: | NO |
| Connector type: | 2 x terminal strip |
| Case: |
|
| Libra: | 0.075 kg |
| Dimensions: | 86 x 58 x 35 mm |
| Guarantee: | 2 lata |
