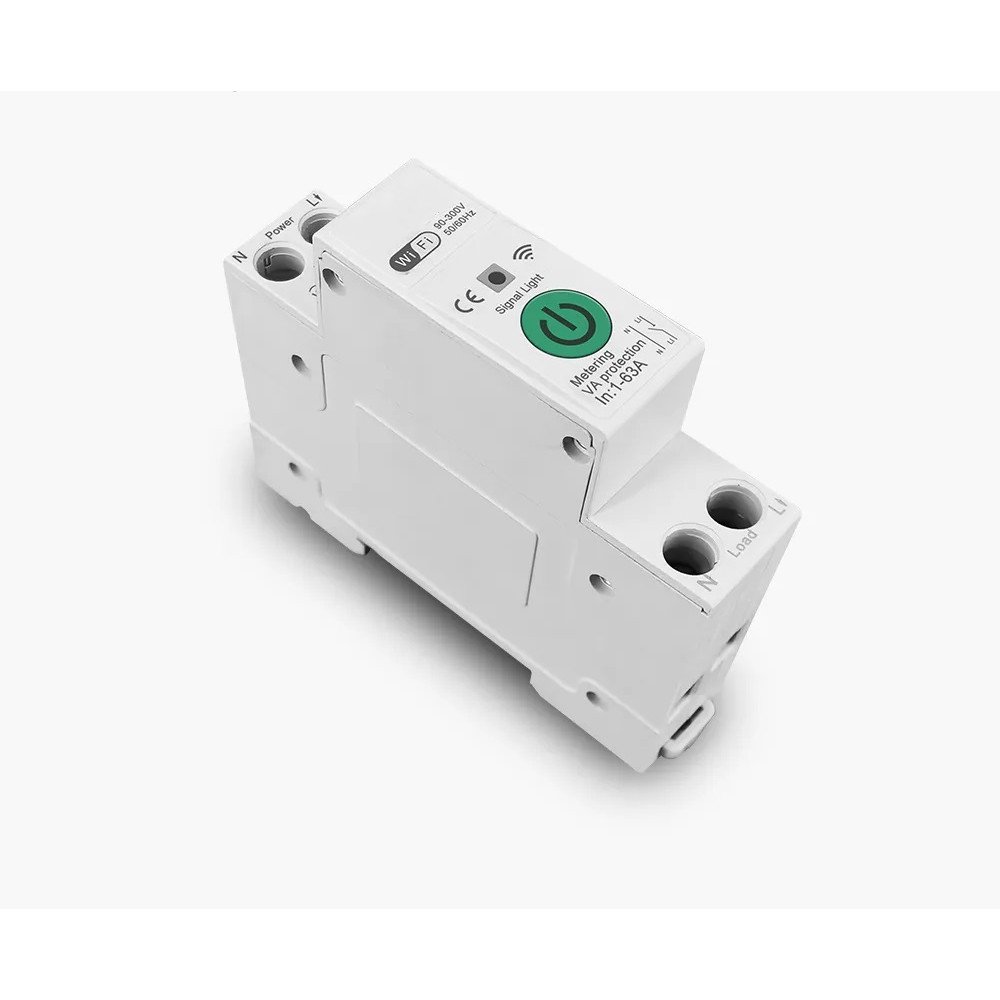

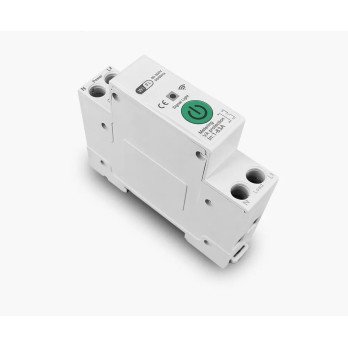

Immax NEO Smart electronic single-phase circuit breaker 1-63A, consumption measurement, WiFi
Immax NEO Smart electronic single-phase circuit breaker 1-63A, consumption measurement, WiFi
€21.97
Tax included
Immax NEO Smart electronic single-phase circuit breaker 1-63A, consumption measurement, WiFi
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Technical parameters:
Protocol: WiFi
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: WiFi: 20dBm
Network standby power (Pnet): 0.4W
Input power: AC 100 - 260 50 Hz / 60 Hz.
Max. loaded: 26kW
Current protection: 1-63A (adjustable in the application)
Overvoltage protection: 220-265V (adjustable in the application)
Undervoltage protection: 76-240V (adjustable in the application)
Thermal fuse, protection against overheating: Yes
Current fuse, protection against overvoltage and overload: Yes
Communication protocol: Zigbee, support Tuya.
Wireless range: 30 m line of sight, 10 m in built-up space
Operating temperature: -25°C to 70°C
Material: PC V0 flame retardant
Installation: on a DIN rail
Number of switched circuits: 1
Dimensions: 82 x 18 x 66 mm
Degree of protection: IP20
Package contents: electronic circuit breaker, user manual
NS29056
459 Items
Data sheet
- APP
- Smarteg Smart Life
ZHA
Zigbee2mqtt - Protocol
- BLE
GRE
LIN
wifi
Zigbee - Voltage
- 240V
5V - IP Class
- IP20
