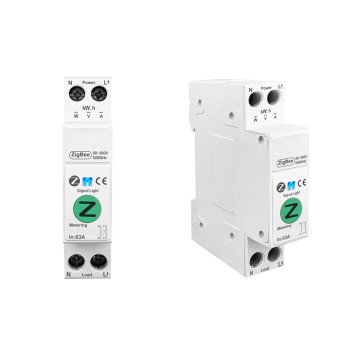

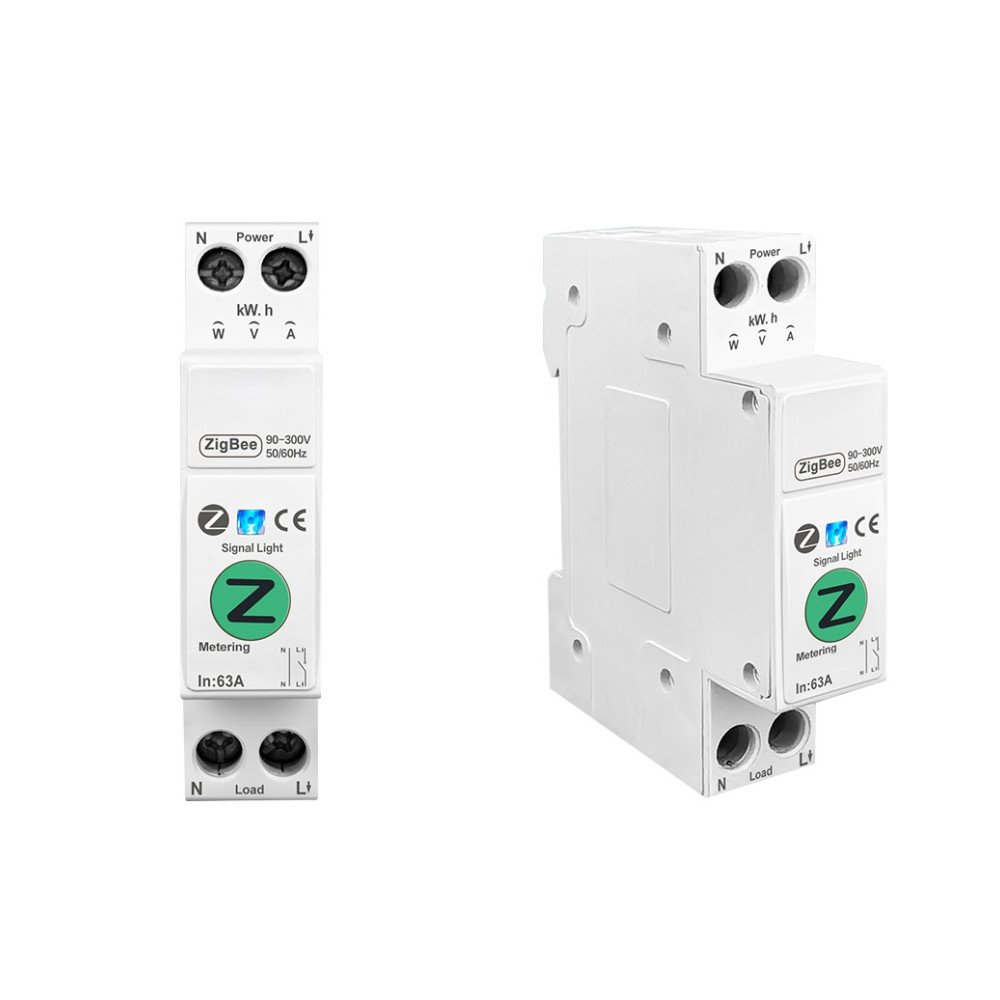

Immax NEO Smart electronic circuit breaker single-phase 1-63A, consumption measurement, Zigbee 3.0

It is conditional that the controller is within reach of the smart gate. ATTENTION - this is not a WiFi controller, it requires Immax NEO BRIDGE PRO Smart Zigbee 3.0 (can be purchased separately), or another TUYA hub based on the ZigBee 3.0 standard. It is fully compatible with iOS, Android, Amazon Alexa, Apple Siri shortcuts, Google Assistant, TUYA, Lidl.

Technical parameters:
Protocol: ZigBee 3.0
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: ZigBee: 10dBm - max 19dBm
Zigbee repeater: No
Network standby power (Pnet): 0.4W
Input power: AC 100 - 260 50 Hz / 60 Hz.
Max. loaded: 26kW
Current protection: 1-63A (adjustable in the application)
Overvoltage protection: 220-265V (adjustable in the application)
Undervoltage protection: 76-240V (adjustable in the application)
Thermal fuse, protection against overheating: Yes
Current fuse, protection against overvoltage and overload: Yes
Communication protocol: Zigbee, support Tuya.
Wireless range: 30 m line of sight, 10 m in built-up space
Operating temperature: -25°C to 70°C
Material: PC V0 flame retardant
Installation: on a DIN rail
Number of switched circuits: 1
Dimensions: 82 x 18 x 66 mm
Degree of protection: IP20

Package contents: electronic circuit breaker, user manual
