Application:(RGB/RGBW/RGB+CCT) 12-24V LED strips;Rated voltage:12... 24 V DC;Maximal total load:144 W @ 12 V, 288 W @ 24 V;Number of inputs:1;Number of outputs:5 (power);Connector type:screw terminals, 5.5/2.1 socket / screw terminals - power input;Wireless:2.4 GHz, ZigBee 3.0;Radio communication range (at open area):30 m;Main features:The repeater function allows you to transfer control to subsequent FUT035S / FUT036S / FUT038S / FUT039 modules even beyond the direct range of the remote control, Small dimensions;

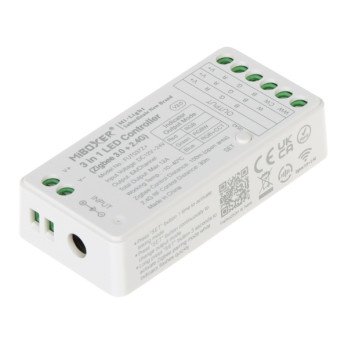

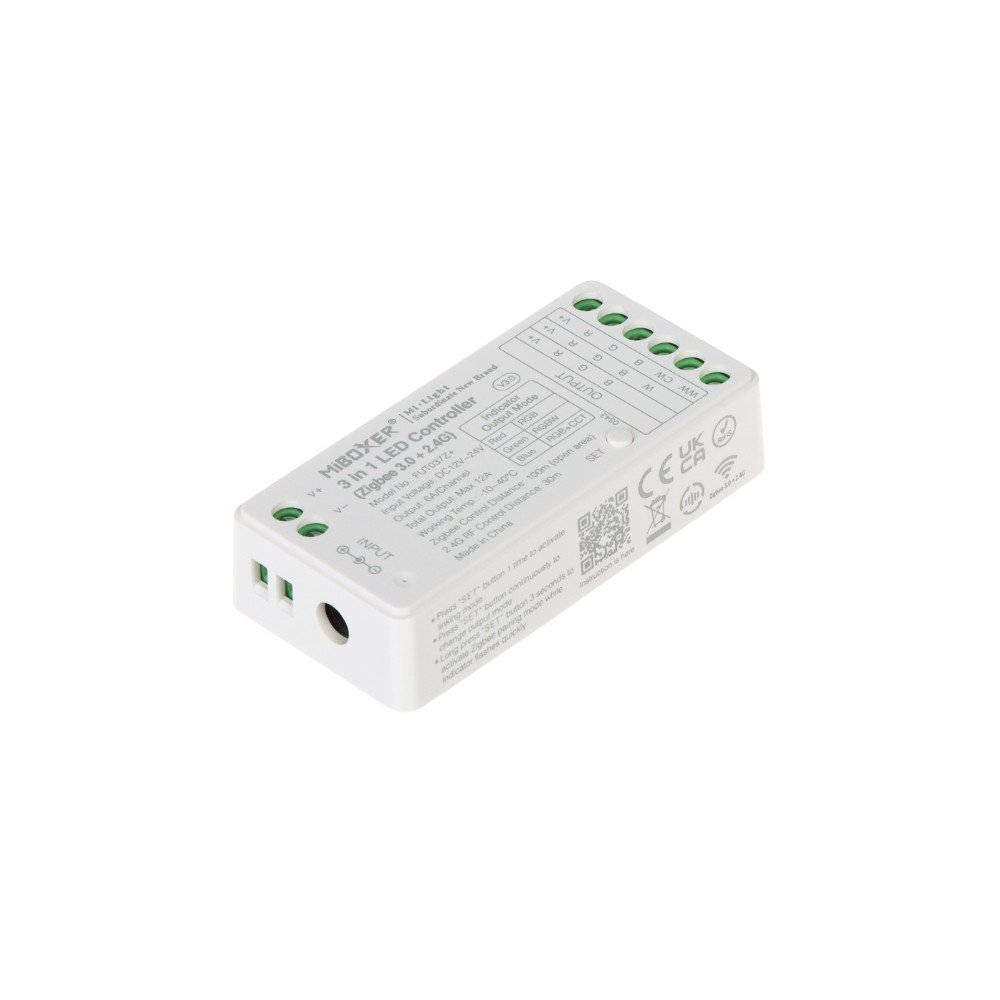

LED LIGHTING CONTROLLER FUT037Z+ ZigBee, 2.4 GHz 12 ... 24 V DC MiBOXER / Mi-Light
€26.89
Tax included
Application:(RGB/RGBW/RGB+CCT) 12-24V LED strips;Rated voltage:12... 24 V DC;Maximal total load:144 W @ 12 V, 288 W @ 24 V;Number of inputs:1;Number of outputs:5 (power);Connector type:screw terminals, 5.5/2.1 socket / screw terminals - power input;Wireless:2.4 GHz, ZigBee 3.0;Radio communication range (at open area):30 m;Main features:The repeater function allows you to transfer control to subsequent FUT035S / FUT036S / FUT038S / FUT039 modules even beyond the direct range of the remote control, Small dimensions;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Application: | Works with LED lighting - (RGB/RGBW/RGB+CCT) 12-24V LED strips |
| Rated voltage: | 12 ... 24 VDC |
| Maximal total load: | 144 W @ 12 V,288 W @ 24 V |
| Total maximal current: | 6 A / Channel, 12 A (total) |
| Number of inputs: | 1 |
| Number of outputs: | 5 (power) |
| Connector type: | screw terminals,5.5/2.1 socket / screw terminals - power input |
| Wireless: | 2.4 GHz,ZigBee 3.0 |
| Radio communication range (at open area): | 30 m |
| Mobile phones support: | Access by a cloud (P2P) - Gateway required ZigbeeThefree application on iOS |
| Main features: | The repeater function allows you to transfer control to subsequent FUT035S / FUT036S / FUT038S / FUT039 modules even beyond the direct range of the remote control,Small dimensions |
| Housing: | Plastic |
| Color: | White |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.36 kg |
| Dimensions: | 75 x 36 x 18 mm |
| Manufacturer / Brand: | MiBOXER / Mi-Light |
| Guarantee: | 2 years |
NS24148
5 Items
Data sheet
- APP
- Google home
Smarteg Smart Life
ZHA
Zigbee2mqtt - Protocol
- BLE
HTTP
HTTPS
LIN
Zigbee - Voltage
- 12-24V
24V - LED colour
- RGB
RGBW
