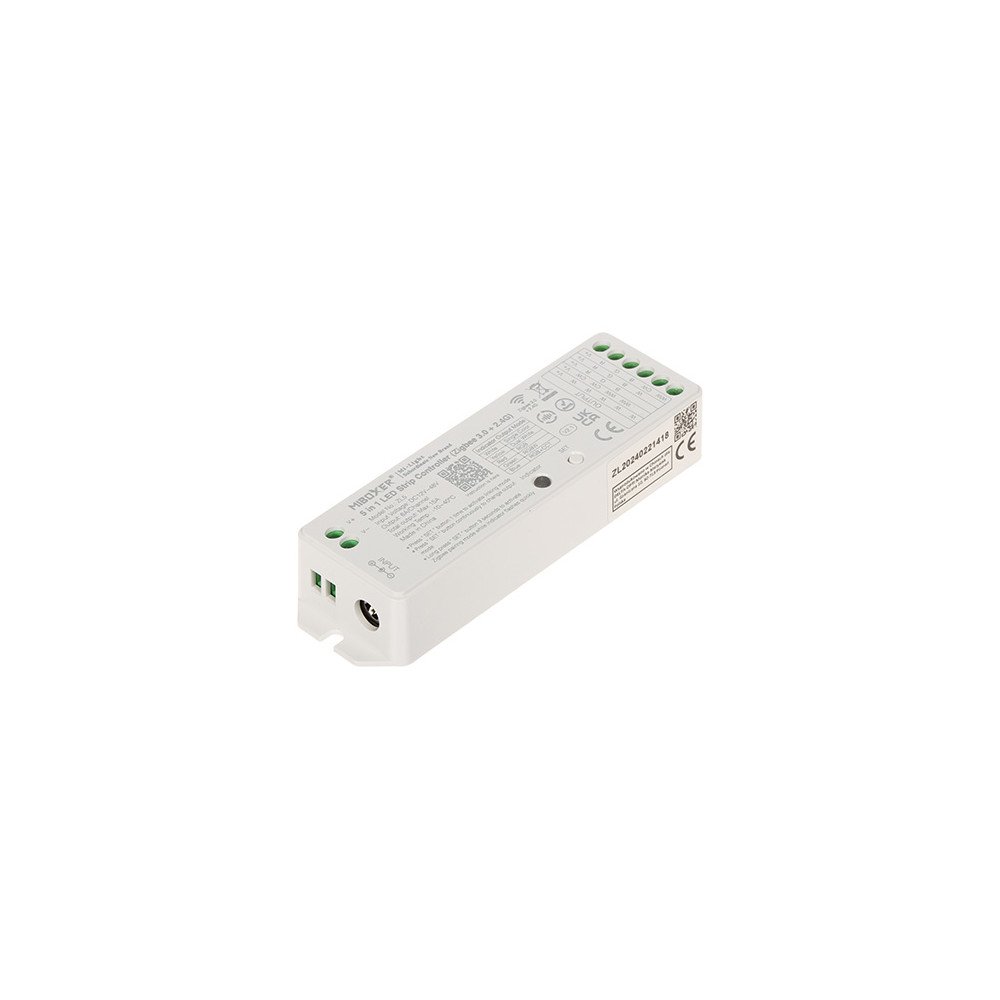

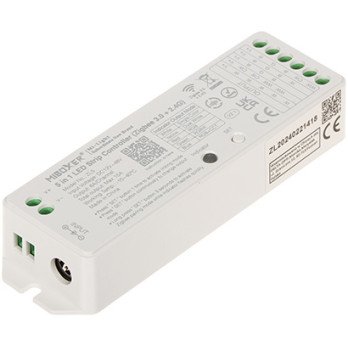

LED LIGHTING CONTROLLER ZL5 ZigBee, 2.4 GHz, RGBCCT (RGBWW) 12 ... 48 V DC MiBOXER / Mi-Light
€26.51
Tax included
Application:(RGB/RGBW/RGBCCT/CCT/MONO) 12-24V LED strips;Rated voltage:12... 48 V DC;Maximal total load:180 W @ 12 V, 360 W @ 24 V;Number of inputs:1;Number of outputs:5 (power);Connector type:screw terminals, 5.5/2.1 socket / screw terminals - power input;Wireless:2.4 GHz, ZigBee 3.0;Radio communication range (at open area):30 m;Main features:The repeater function allows you to transfer control to subsequent FUT035S / FUT036S / FUT038S / FUT039 modules even beyond the direct range of the remote control, Ability to work with any type of LED strip;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Application: | Works with LED lighting -(RGB/RGBW/RGBCCT/CCT/MONO) 12-24V LED strips |
| Rated voltage: | 12 ... 48 VDC |
| Maximal total load: | 180 W @ 12 V,360 W @ 24 V |
| Total maximal current: | 6 A / Channel, 15 A (total) |
| Number of inputs: | 1 |
| Number of outputs: | 5 (power) |
| Connector type: | screw terminals,5.5/2.1 socket / screw terminals - power input |
| Wireless: | 2.4 GHz,ZigBee 3.0 |
| Radio communication range (at open area): | 30 m |
| Mobile phones support: | Android: Free applicationMiBoxer Access by a cloud (P2P)Thefree application on iOS |
| Main features: | The repeater function allows you to transfer control to subsequent FUT035S / FUT036S / FUT038S / FUT039 modules even beyond the direct range of the remote control,The LED ZigBee 3.0 controller has the ability to change PWM frequency modulation,Ability to work with any type of LED strip |
| Housing: | Plastic |
| Color: | White |
| Operation temp: | -10 °C ... 40 °C |
| Weight: | 0.06 kg |
| Dimensions: | 124 x 37 x 22 mm |
| Manufacturer / Brand: | MiBOXER / Mi-Light |
| Guarantee: | 2 years |
NS24147
4 Items
Data sheet
- APP
- Google home
Smarteg Smart Life
ZHA
Zigbee2mqtt - Protocol
- BLE
HTTP
HTTPS
LIN
Zigbee - Voltage
- 12-24V
24V
48V - LED colour
- RGB
RGBC
RGBCCT
RGBW
RGBWW
