Resolution:Camera PT, Camera 2 : 2880 x 1620;Sensor:Camera PT, Camera 2 : 1/3 ";View angle:Camera PT, Camera 2 : 79 °;Range of IR illumination:30 m;White light LED illuminator range:30 m;Image compression method:H.265;Audio:Microphone built-in, Bi-directional audio streaming support;Memory card slot:Micro SD card support up to 256GB;Power supply:5V DC;

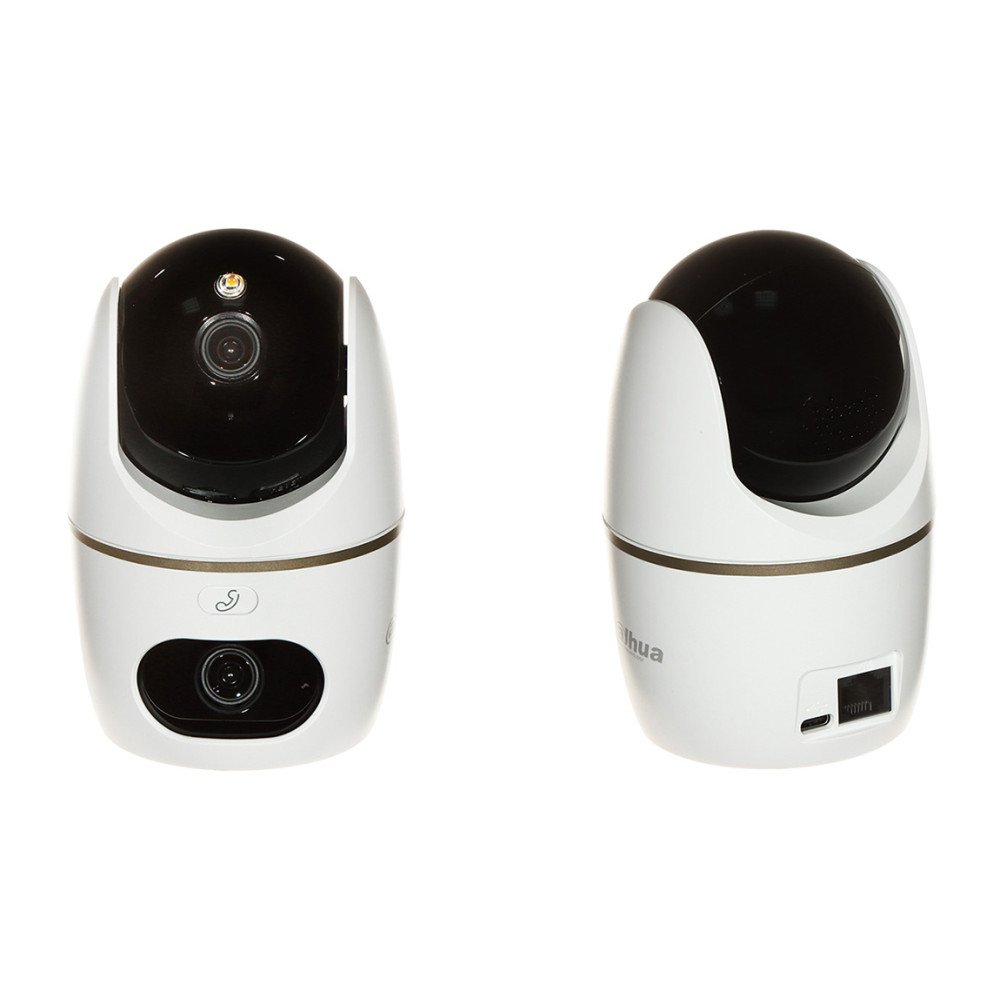

IP PTZ CAMERA INDOOR H5D-5F Hero Dual D1 Wi-Fi 6, - 5 Mpx 3.6 mm DAHUA
€92.89
Tax included
Resolution:Camera PT, Camera 2 : 2880 x 1620;Sensor:Camera PT, Camera 2 : 1/3 ";View angle:Camera PT, Camera 2 : 79 °;Range of IR illumination:30 m;White light LED illuminator range:30 m;Image compression method:H.265;Audio:Microphone built-in, Bi-directional audio streaming support;Memory card slot:Micro SD card support up to 256GB;Power supply:5V DC;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Standard: | IP |
| Resolution: | Camera PT, Camera 2 : 2880 x 1620 - 5Mpx |
| Sensor: | Camera PT, Camera 2 : 1/3 " Progressive Scan CMOS |
| Lens: | Camera PT, Camera 2 : 3.6 mm |
| View angle: | Camera PT, Camera 2 : 79 ° |
| Optical zoom: | |
| Digital zoom: | |
| Range of IR illumination: | 30 m @ Camera PT, Camera 2 |
| White light LED illuminator range: | 30 m @ Camera PT |
| Horizontal rotation range: | Camera PT : 0 ° ... 349 ° - Rotation of the head is limited by stops |
| Vertical rotation range: | Camera PT : -5 ° ... 90 °Camera 2 : -10 ° ... 15 ° (manual adjustment) |
| RS-485 interface: | |
| Horizontal scan: | |
| Route settings: | |
| Image compression method: | H.265 |
| Alarm inputs / outputs: | |
| Audio: | Microphone built-in,Speaker built-in - Alarm sirenAudio detectionBi-directional audio streaming support |
| Main stream frame rate: | Camera PT, Camera 2 : 15fps@ 5Mpx |
| Network interface: | Wi-Fi 6, IEEE 802.11 b/g/n/ac/ax 10/100 Base-T (RJ-45) Fast pairing with Bluetooth |
| Memory card slot: | Micro SD card support up to 256GB |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=1 - Sub stream |
| Intelligent Image Analysis: | Human detectionSmart motion detection (distinguishing between people and animals) |
| Main features: | Intelligent Object TrackingBuilt-in Wi-Fi moduleActive deterrence function - Light and sound alarm - Active intrusion deterrence works by blinking white light and siren sound D-WDR - Wide Dynamic Range Image rotation and mirror ICR - Movable InfraRed filter Day/night mode Auto White Balance AGC - Automatic Gain ControlSharpness - sharper image outlinesConfigurable: brightness, contrast, saturation Motion Detection |
| Housing: | Mini Speed Dome, Plastic |
| Color: | White + Black |
| "Index of Protection": | IP66 |
| I rating: | |
| Power supply: | 5 VDC/ 1 A (power adapter included) |
| Power consumption: | ≤ 2.5 W (typical),5.4 W (max) |
| Operation temp: | -10 °C ... 45 °C |
| Weight: | 0.23 kg (with bracket) |
| Dimensions: | 81 x 126 mm (with bracket) |
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
NS20654
5 Items
Data sheet
- Protocol
- ARP
BLE
Bluetooth
Ethernet
GRE
IEEE 802.11ax
LIN
MOST
ONVIF
QUIC
RS-485
RTSP
SDI
Wi-Fi - Voltage
- 5V
- IP Class
- IP66
- Image compression method
- H.264
H.265
HEVC
