Resolution:Camera PT, Camera 2 : 2304 x 1296;Sensor:Camera PT, Camera 2 : 1/2.8 ";View angle:Camera PT : 53 °, Camera 2 : 95 °;Range of IR illumination:50 m;White light LED illuminator range:40 m;Image compression method:Smart H.265+;Memory card slot:Micro SD card support up to 256GB;Power supply:12V DC;

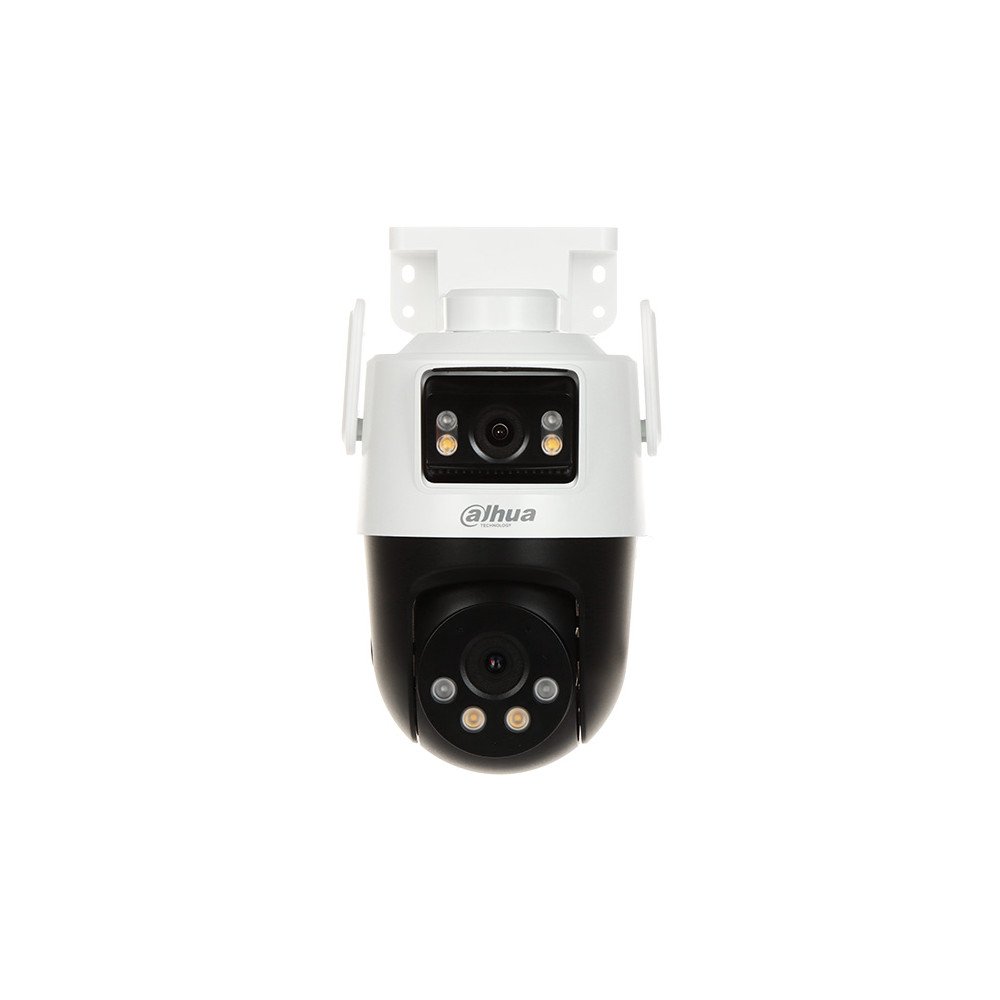

PT OUTDOOR IP CAMERA P3D-3F-PV-0280B/0600B Picoo Dual D1 Wi-Fi 6, - 3 Mpx 6 mm, 2.8 mm DAHUA
€120.79
Tax included
Resolution:Camera PT, Camera 2 : 2304 x 1296;Sensor:Camera PT, Camera 2 : 1/2.8 ";View angle:Camera PT : 53 °, Camera 2 : 95 °;Range of IR illumination:50 m;White light LED illuminator range:40 m;Image compression method:Smart H.265+;Memory card slot:Micro SD card support up to 256GB;Power supply:12V DC;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
| Standard: | IP |
| Resolution: | Camera PT, Camera 2 :2304 x 1296 - 3Mpx |
| Sensor: | Camera PT, Camera 2 : 1/2.8 " Progressive Scan CMOS |
| Lens: | Camera PT : 6 mm,Camera 2 : 2.8 mm |
| View angle: | Camera PT : 53 °, Camera 2 : 95 ° |
| Optical zoom: | |
| Digital zoom: | |
| Range of IR illumination: | 50 m @ Camera PT30 m @ Camera 2 |
| White light LED illuminator range: | 40 m @ Camera PT20 m @ Camera 2 |
| Horizontal rotation range: | Camera PT : 0 ° ... 352 °Camera 2 : 0 ° ... 90 ° (manual adjustment) |
| Vertical rotation range: | Camera PT : 0 ° ... 90 °Camera 2 : -10 ° ... 15 ° (manual adjustment) |
| RS-485 interface: | |
| Horizontal scan: | |
| Route settings: | |
| Image compression method: | Smart H.265+ /H.265 |
| Alarm inputs / outputs: | |
| Audio: | Audio inputAudio outputSpeaker built-in - Alarm sirenAudio detection |
| Main stream frame rate: | Camera PT, Camera 2 : 15fps@ 3Mpx |
| Network interface: | Wi-Fi 6, IEEE 802.11 b/g/n/ac/ax 10/100 Base-T (RJ-45) Fast pairing with Bluetooth |
| Memory card slot: | Micro SD card support up to 256GB |
| WEB Server: | Built-in |
| Max. number of on-line users: | 20 |
| ONVIF: | |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / - The administrator password should be set at the first start |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| ONVIF port: | 80 |
| RTSP URL: | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1subtype=1 - Sub stream |
| Intelligent Image Analysis: | Vehicle / human identificationFiltering of false alarms based on the recognition of persons and vehicles |
| Main features: | Intelligent Object TrackingBuilt-in Wi-Fi moduleSmart Dual Illumination technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image qualityActive deterrence function - Light and sound alarm - Active intrusion deterrence works by blinking white light and siren sound D-WDR - Wide Dynamic Range Image rotation and mirror ICR - Movable InfraRed filter Day/night mode Auto White Balance AGC - Automatic Gain ControlSharpness - sharper image outlinesConfigurable: brightness, contrast, saturation Motion Detection |
| Housing: | Mini Speed Dome, Plastic |
| Color: | White + Black |
| "Index of Protection": | IP66 |
| I rating: | |
| Power supply: | 12 VDC/ 1 A (power adapter included) |
| Power consumption: | ≤ 2.3 W (typical),10 W (max) |
| Operation temp: | -20 °C ... 50 °C |
| Weight: | 0.62 kg (with bracket) |
| Dimensions: | 119 x 159 x 210 mm (with bracket) |
| Supported languages: | English |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
NS20641
3 Items
Data sheet
- Protocol
- ARP
BLE
Bluetooth
Ethernet
GRE
IEEE 802.11ax
LIN
MOST
ONVIF
QUIC
RS-485
RTSP
SDI
Wi-Fi - Voltage
- 12V
- IP Class
- IP66
- Image compression method
- H.264
H.265
HEVC
Smart H.265+
