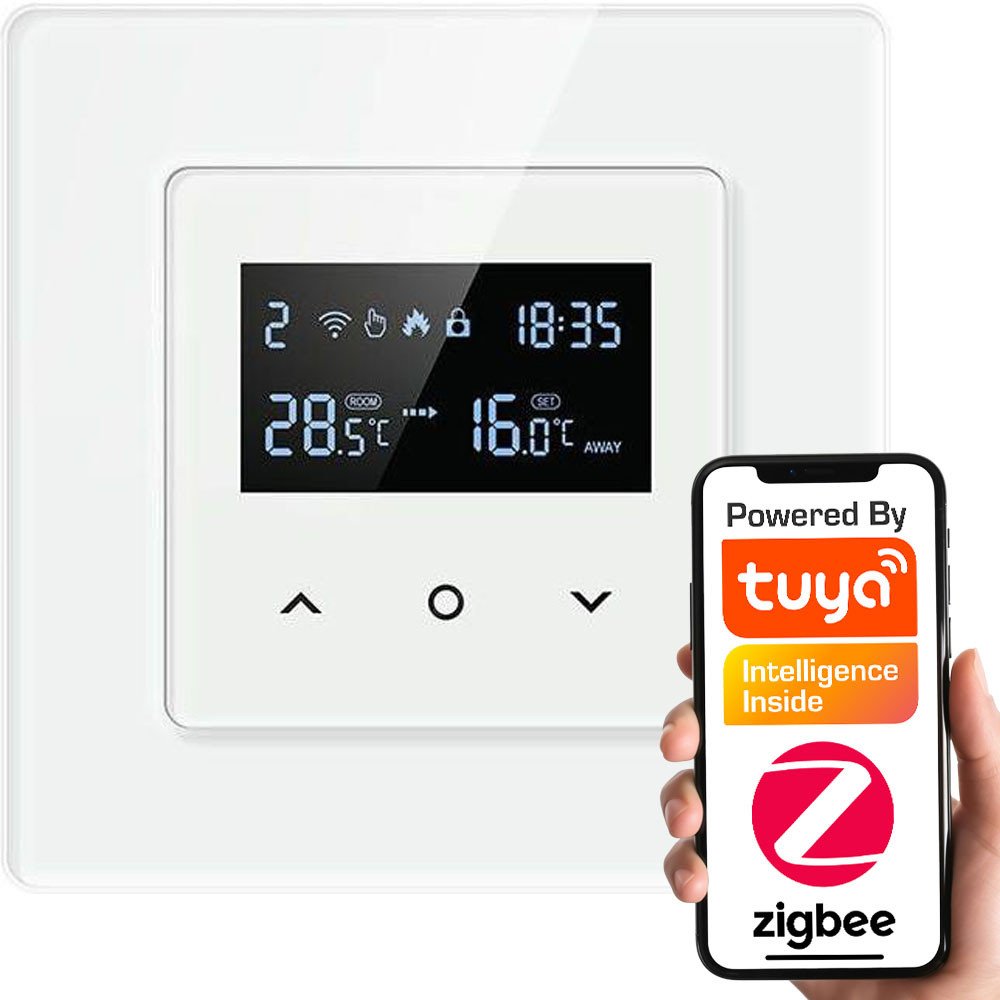

PSMART Relay Thermostat 3A White RM ZigBee TUYA

Smart thermostat for gas boilers, water heaters, and other heating devices. Remote control via TUYA Smart Life app, compatible with Amazon Alexa, Google Assistant, and Yandex Alice.

Energy-saving and integration with other RM series devices.

✅ Control via TUYA Smart / Smart Life app from anywhere

✅ Precise temperature sensor ±1°C

✅ Hysteresis adjustment 0.5°C–9.5°C

✅ Temperature calibration in the app

✅ Relay inversion (heating/cooling)

✅ Screen brightness adjustment

✅ Sensor selection: internal, external, or both

✅ Anti-freeze protection

✅ Can be combined with RM series in frames

✅ Touch and voice control

✅ 7-day scheduling with up to 6 cycles/day

ℹ️ Requires ZigBee gateway (available in the offer)

▶️ Easy Access to Information

The LCD display shows temperature, operating mode, time, and connection status.

Screen brightness can be adjusted or turned off completely.

✨ Can be combined with other RM series devices to create elegant sets.

▶️ Thermostat Scheduling

With TUYA or Smart Life app, set schedules for 5+2, 6+1, or 7 days per week, with up to 6 temperature changes per day. Available modes: manual and automatic.

▶️ Convenient Control

✅ From TUYA / Smart Life app

✅ Voice commands (Alexa, Google Assistant, Yandex Alice)

✅ Directly from the touch display

These options give you full control of your home temperature wherever you are. ✔️

▶️ Additional Features

Child lock, possibility to group multiple thermostats, and sharing control with other household members.

ℹ️ Wiring Diagram

ℹ️ Dimensions

ℹ️ Specifications

• App: TUYA Smart / Smart Life
• Communication: ZigBee 3.0
• Power supply: AC 100-240 V 60 Hz
• Max load: 3 A
• Sensor: NTC
• Display: LCD
• Accuracy: 1°C
• Temperature range: 5–60°C
• Operating temperature: -5–50°C
• Displayed temperature range: 0–51°C
• Power consumption: 1W
• Dimensions: 80 × 80 × 44 mm
• Voice control: Amazon Alexa, Google Home, Yandex Alice

ℹ️ Included

• PSMART Smart Relay Thermostat 3A White RM ZigBee TUYA
• User manual
• 2x screws

Product code: T466
