➡️ Discover the magic of intelligent lighting with the WLED RGBIC ESP32 WiFi Mini Controller!

The compact controller allows you to create amazing lighting effects synchronized with music. Perfect for homes, parties and DIY projects.

✨ Control LED strips using the mobile app or built-in remote control, integrate Home Assistant and enjoy unlimited personalization possibilities ✨

➡️ This is a small but extremely efficient device that allows you to control a wide range of RGBIC LED strips via a mobile application. Thanks to the built-in microphone, the lighting can respond to sound, creating dynamic light shows.

⭐ Main advantages ⭐

✅ Control via a popular applicationHILLOCKfrom anywhere in the world

✅ ChipsetESP32ensures stability and efficiency as well as low power consumption

✅ Voltage ranges from12Vdo24V

✅Over 100 dynamic modes, including gradient, flashing and more

✅Built-in microphonewith functionsynchronization lighting to the rhythm of the music

✅Function segmentationallows you to divide the LED strip into sections and assign itvarious lighting effectseach of them

✅ Programmableschedulefrom the application level on the smartphone running the systemAndroidtheiOS

✅Tryb DIYallows you to personalize your own lighting effects by configuring parameters such as color, brightness, speed and more

✅ Ability to save up to 250 personalized modes

✅Built-in buttonallows you to turn it on, off, change color, or reset and pair

✅ Easy lighting configuration from the WLED application

✅Control voiceviaAmazon AlexatheGoogle Assistant, only for devices compatible with these systems

✅ An additional communication gateway is not required for the device to operate properly,just connect to your home WiFi router

➡️ WLED application

The control application has extensive options for controlling lighting systems

Functions such as selecting the lighting color, dimming, selecting dynamic modes, creating automation or work schedules allow you to gain full control over your home lighting system.

✔️ Set the lighting on the LED strip in segments

RGBIC strips are distinguished by the fact that each diode can glow with an individual color. Using the WLED application, you can set different colors on one section of the LED strip via the controller.

➡️ Easy and Fast Power - Easy and Fast Lighting

Connecting the RGBIC LED strip is extremely simple thanks to the output connectorJST SM 3-pin.

You will power the controller and the tape viaDC connector, which is located on the other side of the controller.

The supported voltage ranges from12Vdo24V

Built-in microphone with lighting synchronization to the rhythm of music ✔️

The function makes the light react to sounds surrounding the controller. Lighting effects that change to the rhythm of the current music are an impressive addition to any party.

Built-in button to control LED lighting directly from the controller! ✔️

ℹ️ Button functions:

➡️ Short press of the button:Enable/disable

➡️ Holding the button for about 1 second:Color change

➡️ Holding the button for about 10 seconds:Reset the controller and activate the pairing function with the application

Compact device size ✔️

The device is theresmallilightwhich allows you to place it anywhere.

✨ DIY Connection Mode ✨

It allows you to adjust every detail to your needs. Using the WLED application, you can save up to 250 of your own LED lighting settings!

ℹ️ Dimensions:

ℹ️ Specification:

• App:HILLOCK
• Communication:WiFi 2.4 GHz
• Power supply:12 - 24V DC
• Error 500 (Server Error)!!1500.That’s an error.There was an error. Please try again later.That’s all we know.72W (24V) / 36W (12V)
• Max current:3A

• Chip type:ESP32
• Built-in microphone
• Supported tapes: e.g. WS2811, SK6812, SM16703P, WS2812
• Power connector:DC 2,1 / 5,5
• Error 500 (Server Error)!!1500.That’s an error.There was an error. Please try again later.That’s all we know.JST SM 3-pin

ℹ️ The set includes:

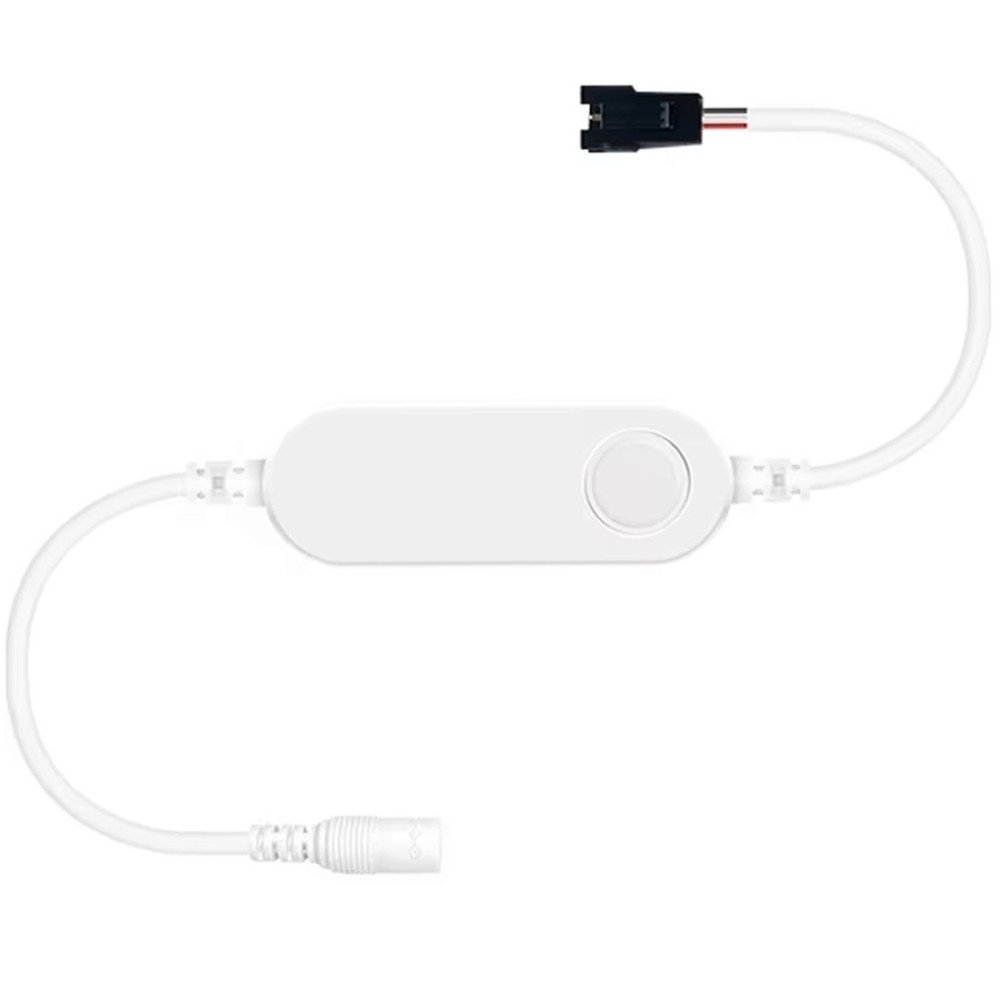

• Mini LED controller with microphone 3A 12-24V RGBIC ESP32 WiFi WLED
• User manual

Product code: LC089
