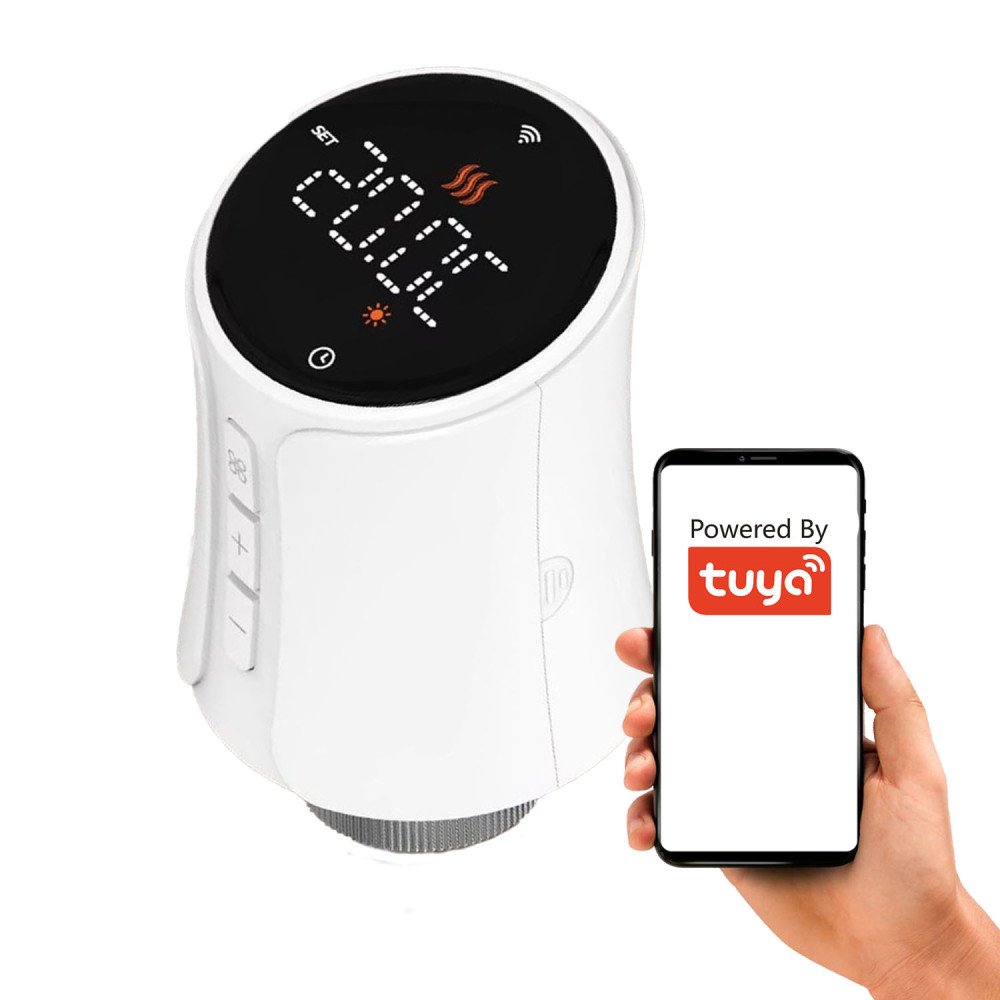

GTZ07 ZigBee TUYA thermostatic head

➡️ An advanced thermostatic head for radiator valves will allow you to remotely and automatically control the temperature in your room! The head has the option of automating the schedule, allowing you to set up to six time intervals per day.

✅ Additional 6 adapters allow you to mount the head on virtually any valve!

✅ The head has a built-in display that will enable quick editing and viewing of settings, and identical functionality in the TUYA mobile application. It is also possible to lock the buttons on the head, preventing unwanted changes, e.g. by children.

✅ One of the many advantages of this model is the ability to rotate the screen 180°, which will allow you to adjust it to the circumstances. The screen brightness is also adjustable between three levels. The device also has a function that automatically prevents limescale build-up, extending the life of the device.

⭐ Main advantages ⭐

✅ Control via the popular TUYA Smart | application Smart Life from anywhere in the world

✅ Precise, remote and automatic setting of the radiator temperature using the application

✅ Customize your daily schedule(6 time slots)

✅ Possibility to set hysteresis from 0.5 °C

✅ Displayrotating 180°will allow installation in a convenient position

✅ Four modesto choose from:manual, energy-saving, comfortandholiday

✅ Variable display brightness(3 levels to choose from)

✅ Child lock,which will block the buttons from making unwanted changes

✅ Featureautomatic turning off of the heating when a temporarily open window is detected

✅ Weekly maintenance function that prevents limescale build-up

✅ Low battery notification

✅ Long battery life of about 1.5 years (depending on the amount of work of the head)

✅ Voice controlvia Amazon Alexa or Google Assistant, only for devices compatible with these systems

ℹ️ ATTENTION! For proper operation, an additional ZigBee communication gateway is required, available in our offer.

✔️ Customize your daily schedule

Using the TUYA mobile application, you can easily set the selected program in any six time intervals. This solution minimizes the need to constantly change settings. Setting your preferences once at specific times will save you the hassle.

✔️ Display configuration

The head display can be rotated 180°, which allows you to adjust it to the place where it is mounted. In addition, it is possible to change the screen brightness.

✔️ Automatic open window detection function

When the valve is set to heating and detects a temperature drop of 1.5℃ within 5 minutes, it will automatically stop heating for 30 minutes. This function prevents energy wastage when the room is temporarily aired.

ℹ️ Screenshots from the TUYA application

✔️ Child lock

To activate the child lock, simply hold the button for 3 seconds. This will lock the buttons on the head, preventing unwanted changes from being made.

✔️ Control using voice assistants

Voice control via Amazon Alexa or Google Assistant, only for devices compatible with these systems.

✔️ Versatile compatibility

Additional 6 adapters allow you to mount the thermostatic head on virtually any valve.

✨ Weekly automatic device maintenance function

The device turns on automatically every Monday at 12:00 for maintenance purposes to prevent scale formation in the device.

Basics of the ZigBee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network problems. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.

⚡ Low battery notifications

Thanks to this necessary function, you will avoid a situation in which the device discharges just when you need it.

ℹ️ Dimensions and description:

1. LED display
2. Mode selection button
3. + button
4. Button -
5. Valve connector
6. Settings button
7. Battery cover

ℹ️ Specification:

• App:TUYA Smart / SmartLife
• Communication:ZigBee 3.0
• Power supply:3 x 1.5 V AA batteries
• Working temperature:0-50°C
• Temperature adjustment range:5-35°C
• Accuracy:0,1°C
• Tightness class:IP20
• Mounting:M30 x 1.5 mm (6 adapters included)
• Libra:145 g

ℹ️ The set includes:

• GTZ07 thermostatic head
• Set of 6 adapters
• User manual

Code the product: GTZ07
