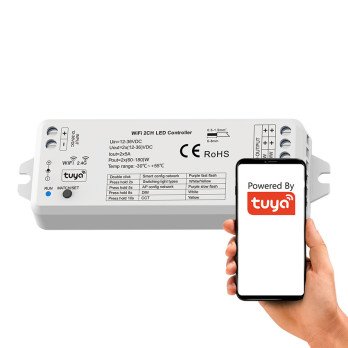

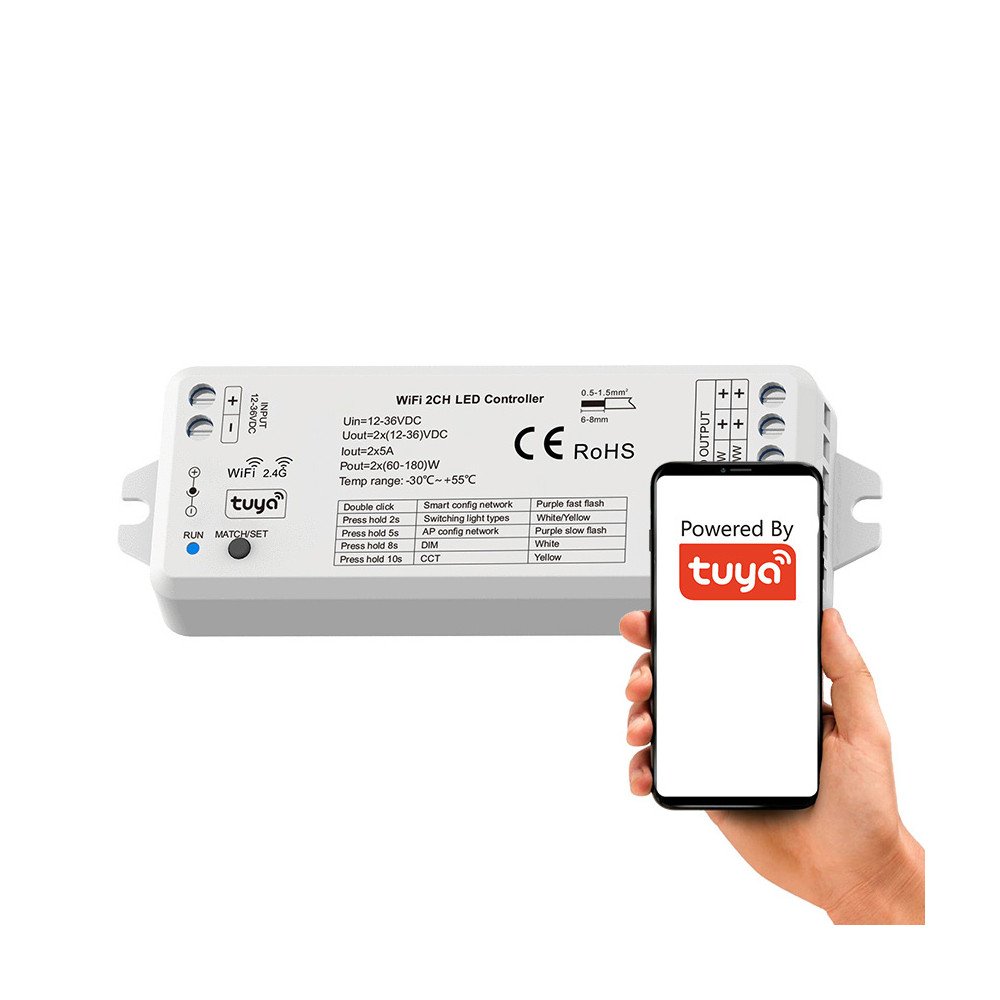

Kontroler LED MONO CCT 2*5A 12-36V Seria SD WiFi + RF TUYA

The controller is designed to control white WW/CW LED strips (2 wires) for smooth dimming and brightening, and to control the white color temperature for CCT strips (3 wires).

Control can be done via the TUYA Smart application or using SD series remote controls. Optionally, the controller also supports Alexa and Google Assistant voice control.

The device has a DC power input and a 2-channel DC voltage output. Additionally, it has a connection for a physical switch (dimmable using a bell switch). In this model, we can connect a CW/WW tape (3 wires) or two White tapes (2 wires) to two ports.

Devices in this series can communicate with each other using a dedicated 2.4 GHz RF frequency.

All SD series devices are available in our offers and in connected sets.

Main advantages:

• Control using the free and popular TUYA | application Smart Life from anywhere in the world
• The device can wirelessly transmit status to other 2.4 GHz RF controllers. Once connected, the values ​​from the main controller are sent wirelessly to the second RF controller, which allows the use of several controllers while controlling only one of them at a time. At the bottom of the offer we present the operating diagram of the SD series devices
• Connection with a bell button that allows you to change the light intensity on a scale from 0 to 100%
• Possibility to configure dimming in DIM mode or white light temperature in CCT mode (variable color)
• Option of 3 seconds of transition effect when dimming/brightening the light
• Possibility of additional integration of remote controls and RF panels from the dedicated SD series
• Voice control via Amazon Alexa or Google Assistant, only for devices compatible with these systems
• Configuration of the selected lighting mode using the button located on the controller housing
• Function of the controller operating to the rhythm of music (using the smartphone's microphone)
• Configuration of the lighting activity schedule from the mobile application
• DC power supply and dual-channel constant voltage output
• An additional gateway is not required to operate the device. Connect the device to your home WiFi router and use its full capabilities in any location

Examples of using the LED controller

The controller has changing operating modes:

- mono DIM (dimmable)

- CCT white color change

Screenshots from the TUYA Smart application:

Visualization of the connection system:

Create an extremely advanced lighting system with the SD series!

The device can wirelessly transmit status to other 2.4 GHz RF controllers. Once connected, the values ​​from the main controller are sent wirelessly to the second RF controller, which allows the use of several controllers while controlling only one of them at a time. At the bottom of the offer we present the operating diagram of the SD series devices.

Technical drawing and dimensions

Specifications:

• App:YOURS | Smart Life
• Communication:WiFi + RF 2.4 GHz (seria SD)
• Power supply:12-36 V DC
• Input current:10.5 A
• Output voltage:2 x (12-36) V DC
• Output current:5 A/channel
• Output power:2 x (60-180) W
• Libra:0.073 kg
• PWM frequency:2000 Hz (default)
• Light dimming range:0~100％
• Dimming curve:logarithmic
• Working temperature:-30℃ ~ 55℃
• Grayscale dimming:4096 degrees
• Waterproof class:IP20
• Certificates:WHAT, RED
• Channels:2

Dimensions:

120 x 43 x 27 mm

Included:

• MONO CCT LED Controller 2*5A 12-36V Switch SD Series WiFi+RF TUYA
• Instruction

Product code:LC081
