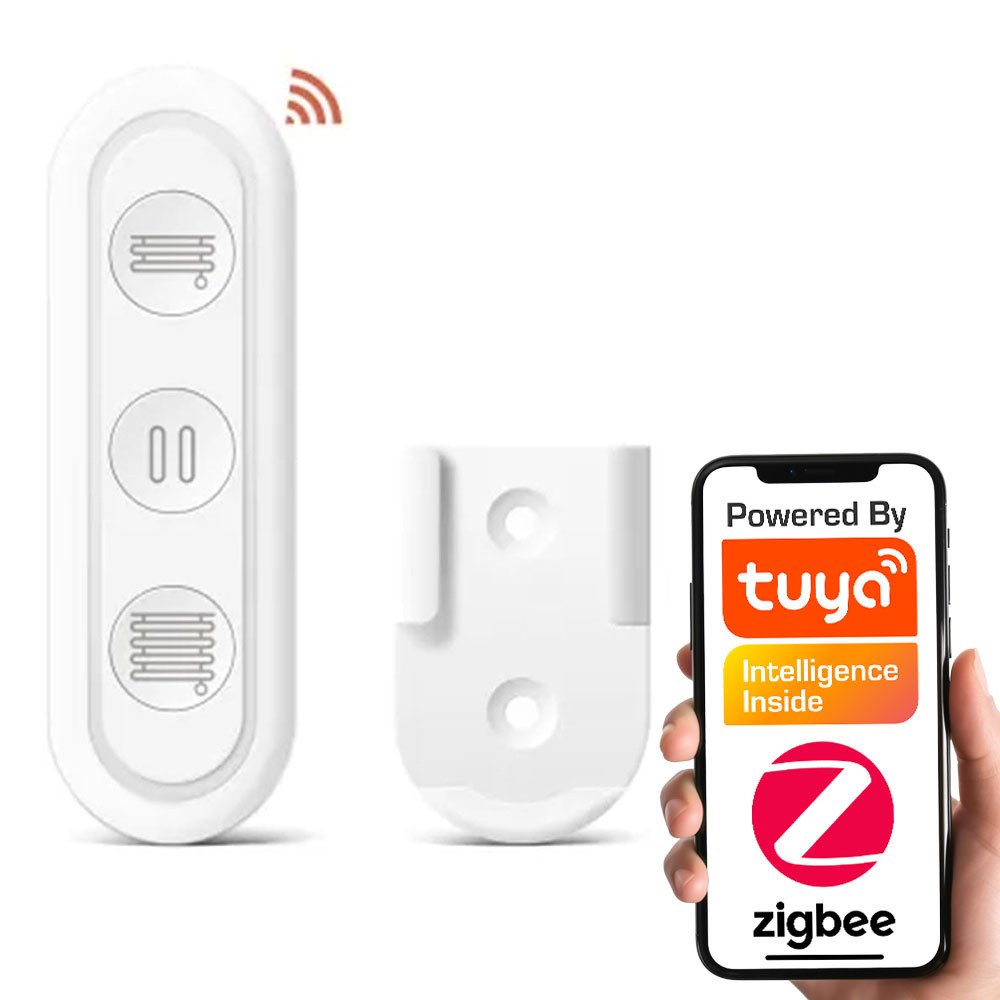

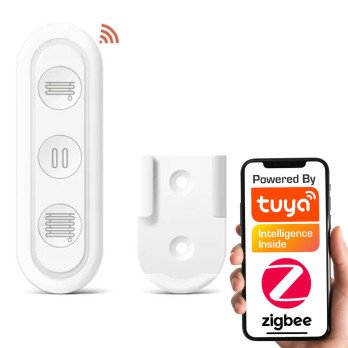

Pilot | 3 Channels | 9 Programs | For roller shutter controllers | LR series | ZigBee | TUYA

✅ Dedicated to roller blind controllers, it allows you to open and close roller blinds/curtains in your home. In the TUYA application, it is visible as a scene remote control, which also allows you to control other devices.

✅ Icons on the remote control make it easier to identify assigned blind scenes. Each button supports up to 3 scenes (single press, double press, hold), for a total of 9 available functions.

✅ Thanks to its universality, the remote control can control other ZigBee devices and act as a panel for intelligent scenes or automation.

⭐ Main advantages ⭐

✅ Each button offers 3 actions: single click, double tap and hold. You can handle up to 9 scenes in total!

✅ The remote control has buttons to control the blinds: raising, stopping and lowering.

✅ You can easily pair it with LR series devices, managing them wirelessly in your ZigBee network.

✅ Use it not only for blinds! It will also work as a scene remote control, controlling other intelligent ZigBee devices.

✅ The set includes a practical wall mounting bracket.

ℹ️ Requires an additional ZigBee gateway, which you can find in our offer!

ℹ️ Blinds/curtains control in the scope of:

➡️ Opening

➡️ Closing

➡️ Blocking the blinds in a specific position

ℹ️ Screenshots from the TUYA application:

ℹ️ Basics of the ZigBee protocol:

The ZigBee protocol operates on a frequency that propagates well in buildings2.4 GHz

ZigBee connectivity is MESH connectivity, which means thatany ZigBee device with full L+N power works as a signal repeaterfor other devices.If a remote sensor does not have communication with the ZigBee gateway, it is sufficient that it has radio communication with another ZigBee devicewith full L+N power supply that has communication with the gateway (up to 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection

Devices using ZigBee protocol when state changesconnect to the control panel in 0.2 seconds,and WiFi need about 5 secondsto connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules.

OnlineWiFiyou will start to experience network problemsat 25 devices❌

To the switchboardZigBeeyou can easily addover 50 devices✔️

ZigBee gateway and ZigBee devices allow formuch wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago.

ZigBee communicationuses very little energy, which giveslong service lifeon battery power.

ℹ️ Specifications

• App:TUYA Smart | Smart Life
• Power supply:CR2032 battery
• Communication:ZigBee 3.0
• Standard ZigBee:IEEE 802.15.4
• Number of buttons:3
• Maximum number of assigned scenes:9

ℹ️ In the set:

• Remote control 3 channels 9 programs for roller shutter controllers LR ZigBee TUYA series
• Wall holder
• User manual

ℹ️ Product code: T068
