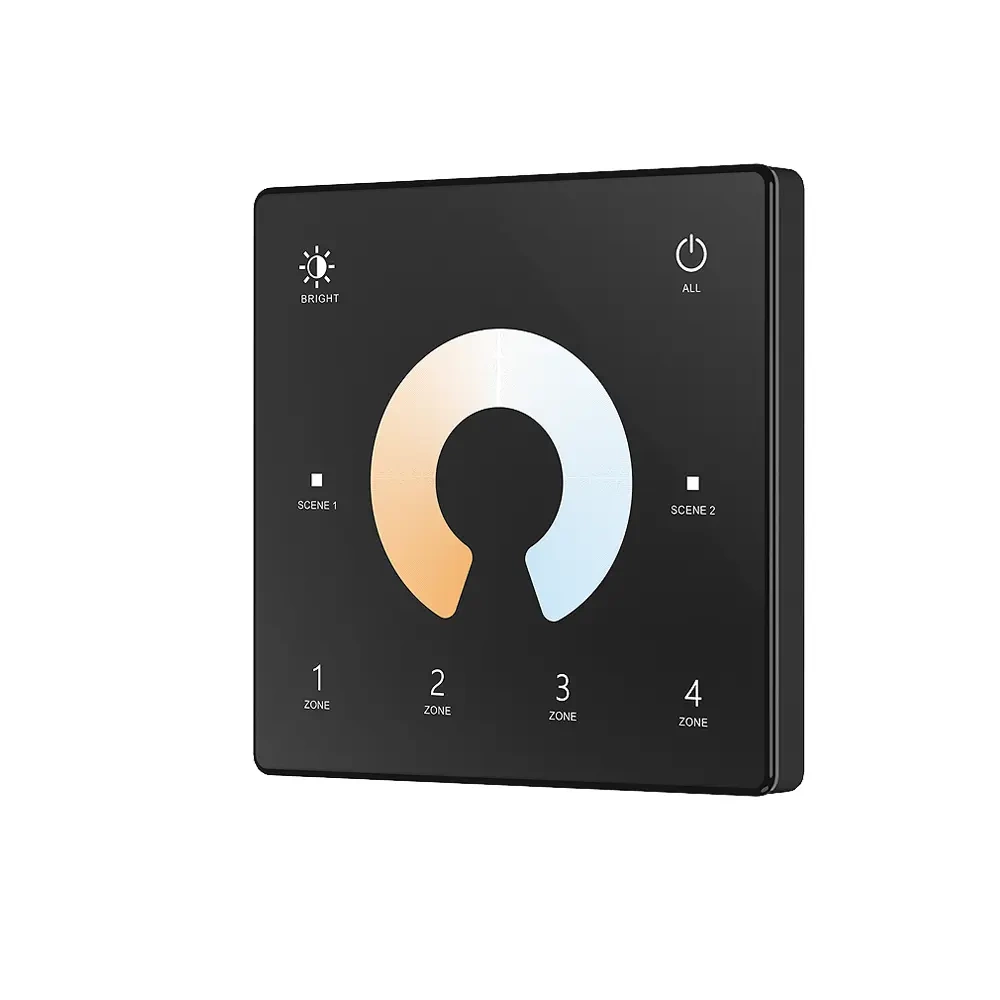

Remote Control CCT LED Panel Slim Black Wall Mounted 4 Zone LED RF 2.4 GHz SD Series

Wall panel for controlling an LED installation with variable color temperature (e.g. CCT LED strip) for up to 4 zones. The device allows you to turn on and off the lighting, as well as access to adjust the color temperature from warm white (2700 K) to cold white (6500 K) using touch buttons. The panel operates on the basis of 2.4 GHz radio communication, and the panel range is approximately 30 meters. It is possible to extend this value by retransmitting the radio signal in other receivers.

Attention! The panel is compatible with dedicated LED controllers and relays from the SD series ("SD Series" in the name)

The device is powered by a 3 V CR 2032 battery and is also equipped with an energy-saving mode, which allows for long use. The glass panel is distinguished by an elegant, flat casing with a thickness of 9.5 mm, which can be easily mounted on the wall.

Main advantages

Support for CCT LED lighting installations (with variable color temperature)
The panel supports 4 lighting zones
Smooth dimming control without visible jump effect
Possibility to assign lighting settings to one of two scene buttons
2.4 GHz radio communication
The range of the panel is approximately 30 meters (in open space) + range extension (possibility of retransmission between LED receivers)
Possibility to assign multiple LED receivers to the panel
There is no need to run additional cables
Controller powered by CR 2032 battery (not included)
Slim design - only 9.5 mm thick
Panel made of glass
Quick, easy assembly and installation

Description of the panel operation

1.Turn on/off all lighting zones.

2.Change the color temperature between warm white, natural white and cool white.

3.Brightness increase +10 levels.

4.Brightness reduction -10 levels.

5.Touch to change the white color temperature.

6.A short press brings up the scene, a long press for 5 seconds saves the current lighting state as zone 1/2/3/4.

Create an extremely advanced lighting system with the SD series!

Search for other remote controls, controllers, relays and dimmers in our SD series offer.

Specification

Communication: RF 2.4GHz
Remote control intended for lighting installationsCCT (LED strip with variable color temperature)
Lighting control system:PWM
Lighting control method:radio (2.4 GHz)
Number of supported zones/channels:4 zones
Power supply:1 x 3V CR 2032 battery (not included)
Remote control range:up to about 30 meters in an open area (possibility of retransmission between LED receivers)
Working temperature:from -30 to + 55°C
Tightness class:IP20
Built-in magnet for easy attachment to wall mounting bracket
