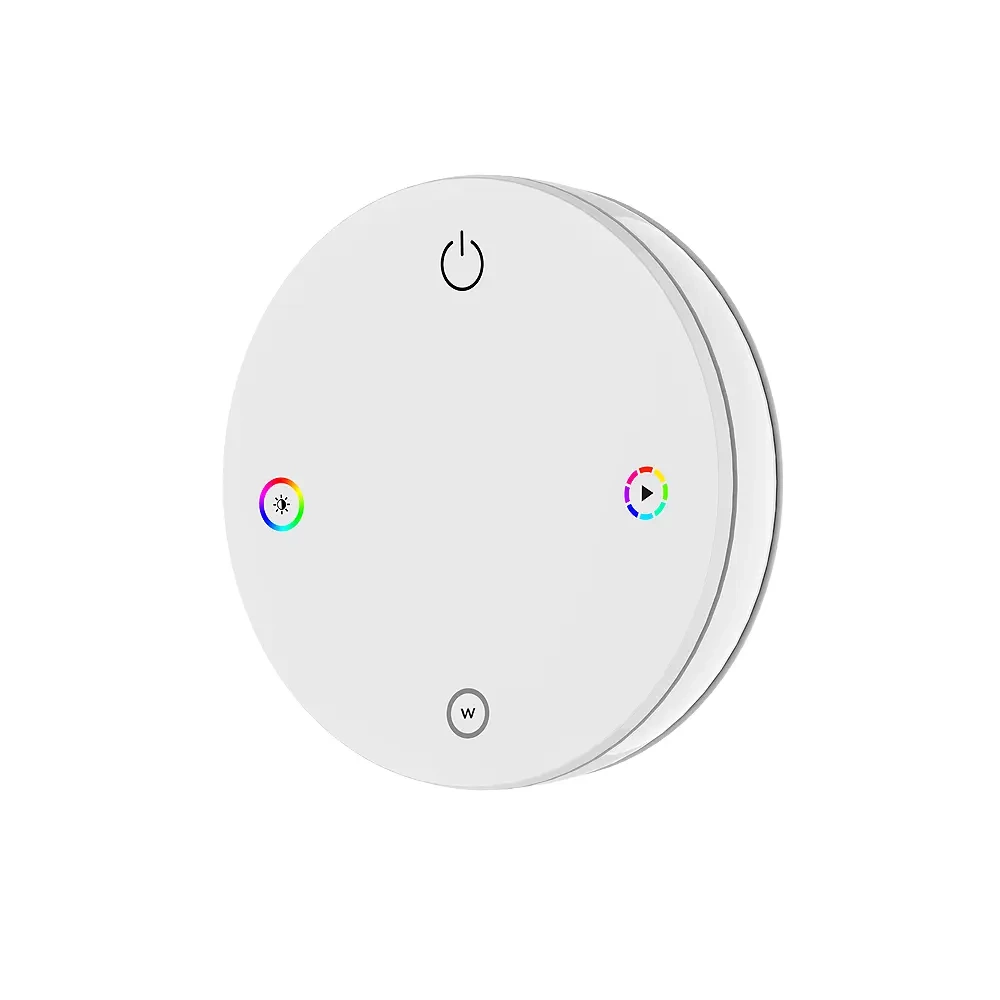

Remote control for RGB/RGBW LED controller dimming 1 zone RF 2.4GHz SD series

➡️ Radio remote control for RGB/RGBW LED controller (SD series) is a device designed for small lighting installations, supporting 1 zone of colorful RGB or RGBW LED lighting.

☑️ Allows dimming and brightening, adjusting the RGB color and turning on white. 2.4 GHz radio communication provides a range of up to 30 meters, which can be increased by signal retransmission.

☑️ The remote control is intuitive to use (4 buttons), powered by a CR 2032 battery and has a magnetic housing.

ℹ️ Attention! The remote control is compatible with SD Series devices ("SD Series" in the name).

⭐ Main advantages ⭐

✅ Supports both RGB and RGBW lighting

✅ Compatible with SD series devicesRF 2.4 GHz

✅ Possibility to assign multiple SD series LED receivers to the remote control

✅ The remote control supports 1 lighting zone

✅Select one of 24 static colors with one button

✅Dedicated button for dynamic lighting programs

✅ Magnetic housing allows you to place the remote control in a convenient place

✅ The range of the remote control is approximately 30 meters (in open space)

✅ Controllerbattery poweredCR2032 (not included)

✅Handy and compact design

✅Quick assembly and installation

ℹ️ Description of the remote control operation

➡️ Button 1.Button to turn the lighting on and off.

➡️ Button 2.Press briefly to cycle through 24 colors. Hold longer to adjust brightness.

➡️ Button 3.Press briefly to activate dynamic mode. Hold for about 2 seconds to set the speed.

➡️ Button 4.Press briefly to turn on the white light. Hold longer to adjust the brightness.

✨ Create an extremely advanced lighting system with the SD series! ✨

ℹ️ Search for other remote controls, controllers, relays and dimmers in our SD series offer.

ℹ️ Specification

• Remote control designed for RGB / RGBW installations (multicolor / multicolor + white)
• Lighting control system:PWM
• Lighting control method:radio (2.4 GHz)
• Number of supported zones/channels:1 zone
• Power supply:1 x 3V CR 2032 battery (not included)
• Communication type:one-way
• Remote control range:up to about 30 meters in open areas
• Working temperature:from -30 to + 55°C
• Tightness class:IP20
• Built-in magnet for easy attachment to wall mounting bracket

ℹ️ Dimensions:

• 75 x 18 mm

ℹ️ The set includes:

• Pilot
• Mounting bracket

Product code:PLD071
