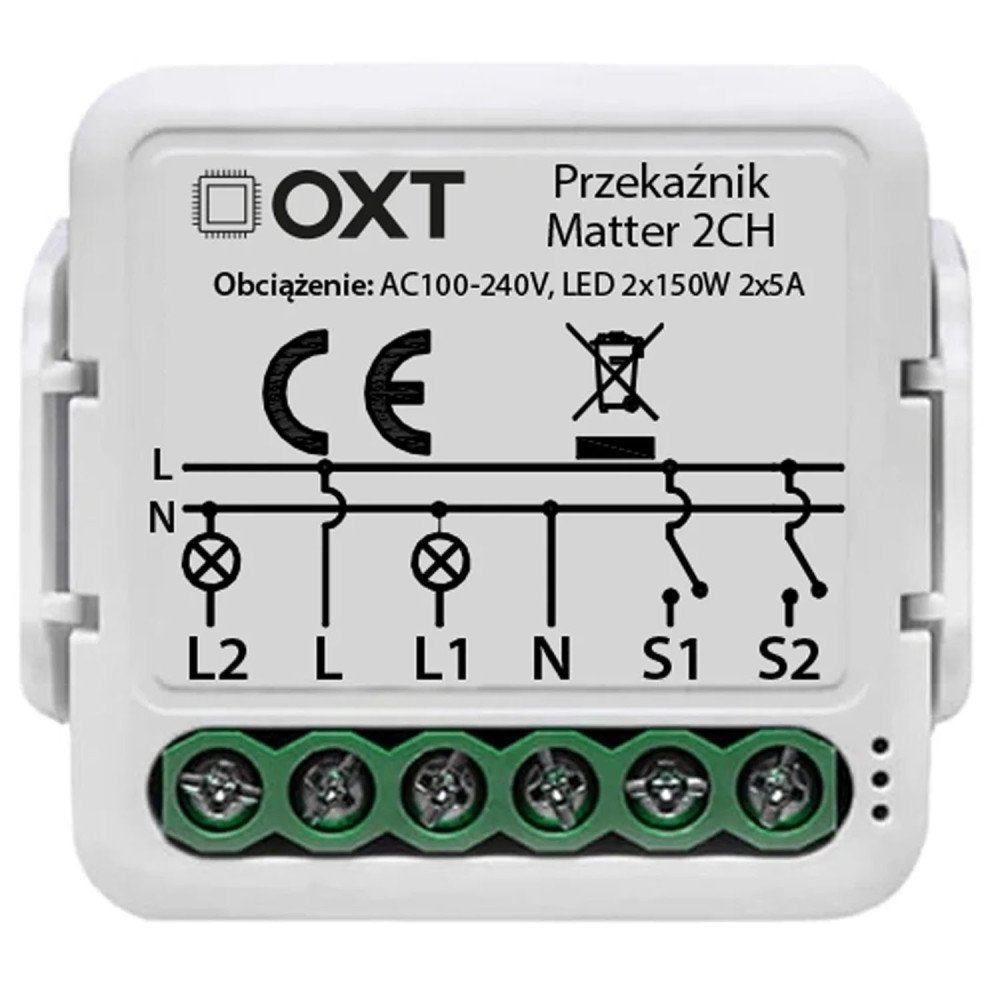

OXT module relay 2 circuits Matter Wi-Fi Homekit

OXT module with the latest Matter protocol and WiFi communication.

With this module, it is possible to turn traditional home switches into smart switches controlled via the popular TUYA app.

With the help of Matter communication, it is possible to integrate all devices running under different platforms such as Apple Home, Google Home, Amazon Alexa or Samsung SmartThings with one selected application.

For proper operation, an additional coordinator supporting the Matter protocol is required, which is also compatible with the application with which we will want to control the devices.

The OXT module is compatible with the latest Matter protocol

Provides compatibility with :

• Google Home (coordinatorGoogle Nest / HUB / MAX)
• HomeKit (coordinatorHomePod or AppleTV)
• Alexa (coordinatorAlexa Echo, Show)
• SmartThings (SmartThings HUB coordinator)

And others that have support for the Matter protocol

Main advantages:

• Turning ordinary, traditional switches into programmable smart devices controlled via the popular TUYA app
• With Matter technology, the devices have the ability to integrate all devices running under different platforms
• Easy, fast installation and configuration. Scan the QR code with one of the apps of your choice, e.g. Apple Home, Google Home, Smart Things
• Control devices via voice commands with voice assistants, i.e. Apple HomeKit, Siri and Google Assistant
• Ability to program the relay to automatically turn devices on and off according to a set schedule
• Multiple connected devices can be turned on in different configurations to create desired scenarios, e.g., house lighting
• Make sure you save on energy consumption and schedule times when you want your appliances to turn on and off
• For proper operation, an additional coordinator / gateway / smart speaker supporting the Matter protocol is required, which is also compatible with the application through which we will want to control the devices

The basics of Matter connectivity

• Matter is an open, interoperable communications standard for smart home devices.
• Interoperability: one of Matter's main goals is to provide interoperability between devices from different manufacturers, enabling them to work together and integrate into smart homes.
• Simplicity of Integration: Matter focuses on simplicity of device integration and configuration, so users can easily add new devices to their smart home and manage them from one place.
• Security: Standard Matter provides advanced security mechanisms such as data encryption, authentication and authorization to protect user privacy and prevent attacks.

Specification:

• App:Apple Home, Google Home, Amazon Alexa, Samsung SmartThings
• Voltage:AC 100-240V 50/60 Hz
• Communications protocol:Matter
• Communication:2.4 GHz Wi-Fi
• Maks. current:2 channels 5 A
• Maks. power per channel:2x150 W
• Operating temperature:-10°C ~ +40°C
• Operating range: 100 m
• Dimensions:Width 39.2mm x Length 39.2mm x Height 18mm
• IP class:IP20

The set includes:

• OXT module relay 2 circuits Matter Wi-Fi
• Attachment clip
• User Manual

Product code: M222
