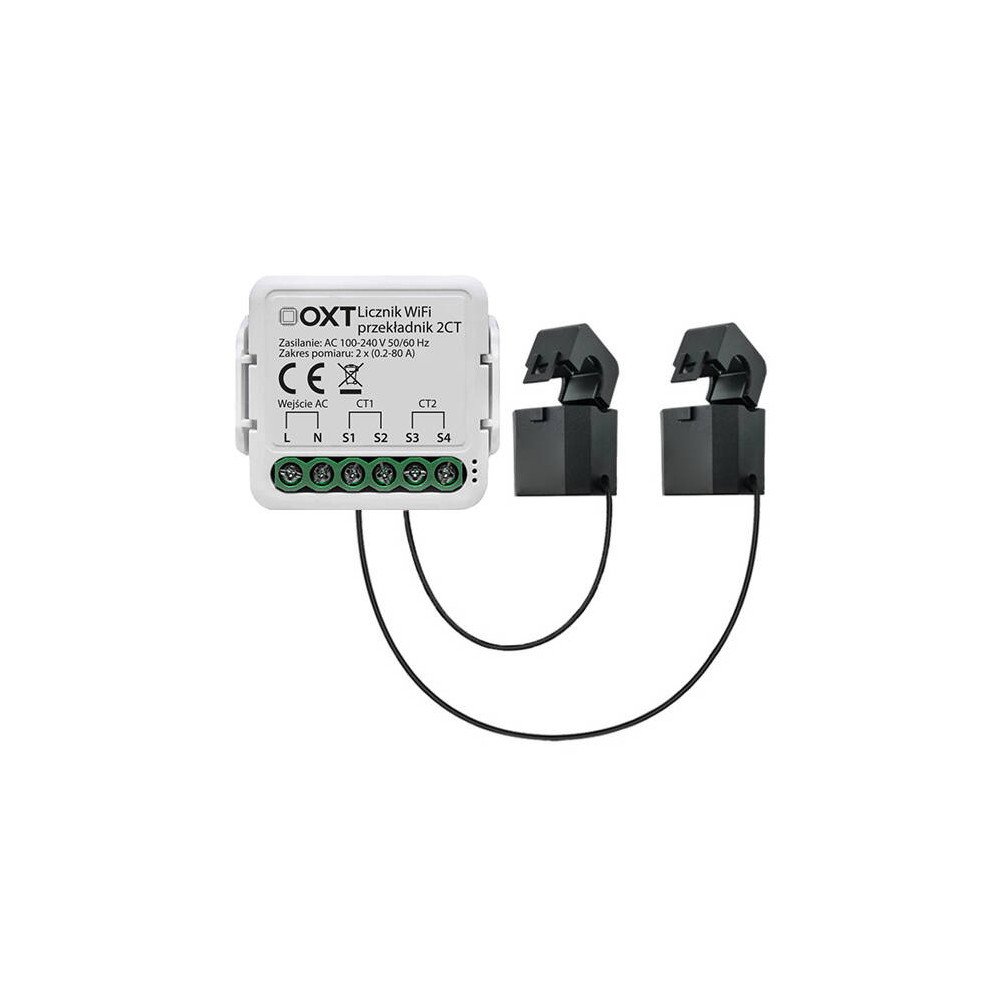

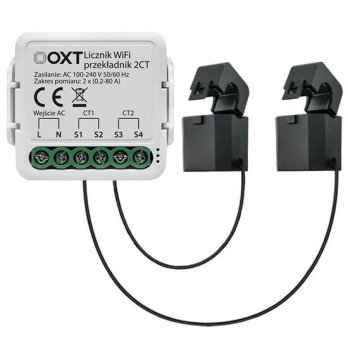

OXT module mini energy meter 2 transformers 80 A CT WiFi TUYA
The new counter of our brand OXT! Small size, big possibilities!
A meter with two measurement loops allows you to connect even several wires of the same phase to the transformer and check the total current consumption that flows through it.
Connect the OXT module to the power supply and select the appropriate wires on which you want to check the power consumption.
Important: the OXT module should be powered from the same phase as the measurement cables.
The main advantages of the device:
- It does not require any interference with the main power cable, connect the CT loop to the phase cable (or several cables), power the device and the measurement is ready
- It has two CT measuring loops 2 x 80 A
- Checking electricity consumption, current (kW, W, A, V) and historical on the chart (kWh) - a great option for subletting premises
- Precise measurement of current consumption up to 80 A with consumption statistics in the application
- You can control another device in the TUYA application based on data from the meter (including total energy kWh, current power W, voltage V, daily kWh consumption)
- Free TUYA Smart or Smartlife application for Android and iOS
- Possibility of installation on a DIN rail (adapter included)
- No additional gateway is required to operate the device. Connect the device to your home WiFi router and take full advantage of its features in any location
Precise data and intelligent power consumption scenarios
The device has detailed information regarding the current measurement of your devices. Appropriate adjustment of advanced settings will save additional costs. Use current consumption statistics as well as additional options for better power management. The model has the option shutdowns after using a set number of kWh!
- Full access to power, power and current consumption settings
- Reliable data from charts
Change your space to a smart one
Program several smart devices that will enable automatic response in any way. Let's assume that you have an advanced motion sensor - when you enter your home, you can program the transmitter accordingly, to automatically turn on the device in your presence. Create your own automations without limits!
- Automate your entire smart home
- Set reactions between smart devices
Set your own schedules
Don't tire yourself out running around your devices. Thanks to the TUYA microprocessor, you can set schedules according to your preferences and daily routine. Set the device to turn on and off according to your needs and save on electricity!
- Turn devices on or off with schedules, countdowns or automation
The following parameters can be used to create scenes:
- Total energy - given in kWh
- Current power - given in W
- Voltage - given in V
- Daily consumption - given in kWh
Meter connection
ATTENTION!The meter must be powered from the same source from which the device is powered. The transformer is directional, that ismust be placed on the phase wire in the direction of current flow- the correct direction is marked on the transformer with an arrow.An incorrect connection may cause problems with correct reading.
Specification:
- Power supply:AC 100-240 V 50/60 Hz, measurement up to 2 x 80 A
- Number of transformers:2
- Communication:WiFi 2.4 GHz 802.11 b/g/h
- Case:ognioodporny ABS
- App:YOURS (Smart Life)
Included:
- OXT module mini energy meter 2 CT WiFi TUYA
- 2 transformers 80 A CT
- User manual
- Packaging
PRODUCT CODE:T232
img src=' border='0' alt='
NS10619
18 Items
Data sheet
- APP
- Smarteg Smart Life
- Protocol
- BLE
GRE
HTTP
HTTPS
LIN
wifi - Voltage
- 240V
