You no longer need a charger to charge your phone or other device, just a USB cable is enough!

The device is compatible with Home Assistant ZigBee2mqtt! Below are screenshots from the HA application.

RM series devices can be combined into frames (available in our offer). Use the RM series in your home - thanks to this you will combine elegant appearance with intelligent control!

ATTENTION! The offer includes a socket module without a frame. Choose the appropriate single or modular frame from the PSMART offer. Product photos are illustrative, with an example of a single frame.

Main advantages:

• Control the operation of devices from anywhere in the world
• The device is compatible with Home Assistant ZigBee2mqtt!
• The socket has a precise current measurement. Checking the current consumption: Power W, Voltage V, Total KWh
• Fast charging with 3.0+/3.0/2.0 protocol and USB/Type C interface with support for various phones and electrical devices, with a maximum output power of DC 20W
• Current measurement history available on the chart (daily, monthly and yearly)
• The device has a pin (grounding)
• The socket has status monitoring after a power failure:on, off, restore to the state before the power loss
• Manual button control
• Possibility of automation based on many parameters
• Possibility to set a schedule and schedule
• Free Tuya Smart or Smartlife application for Android and iOS
• Easy installation and operation
• Voice control via Amazon Alexa or Google Assistant, only for devices compatible with these systems

Note: The two charging ports will operate continuously when the socket is turned off.

For proper operation, an additional ZigBee gateway available in our offer is required.

Built-in 2 USB ports

3.0+/3.0/2.0 protocol and USB/Type C interface with support for various phones and electrical devices, with a maximum output power of DC 20W

Modular socket

Impress everyone with new ZigBee sockets that are advanced and designer. Seemingly an ordinary socket, but inside the latest ZigBee module with the ability to program advanced scenes and automation.

The socket fits perfectly into rooms with closely located (adjacent, modular) flush-mounted boxes. Look for other devices from this series in our offer and connect them using dedicated frames, which can also be found in our offer.

Precise measurement of energy consumption!

• Temporary indication
• Total daily consumption
• Weekly total
• Monthly summary
• Energy consumption chart

PSMART smart socket

The intelligent flush-mounted socket from the RM series allows you to remotely control devices connected to a given socket, set a timer, or monitor energy consumption. It works with Alexa and Google voice assistants and has a number of security features.

The socket fits perfectly into rooms with closely located (adjacent, modular) flush-mounted boxes. Look for other devices from this series in our offer and connect them using dedicated frames, which can also be found in our offer.

*Depending on delivery, the product may differ slightly from the photos presented in the offer.

Smart timer

The socket also allows you to set a schedule via the app, which means you can decide the times at which appliances in your home are turned on or left off. This is a great way to save electricity because thanks to this function you can avoid unnecessary energy consumption.

Remote control

If you forgot to turn off the light when leaving the house, or on the contrary, you would like to leave it on for your pet or scare away potential thieves, you can do it remotely using the application. This is invaluable convenience and comfort that every user will appreciate.

Safe use

The socket has a number of protections against overvoltages and overcurrents, as well as against overheating, so you do not have to worry about the devices connected to the socket.

Below are screenshots from the Home Assistant ZigBee2MQTT application!

Basics of the ZigBee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network issues. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.

Specification:

• Power supply:AC 100 V-240 V (50/60 Hz)
• Maximum continuous power:3000 W
• Maximum peak power:3600 W
• Communication:ZigBee 3.0
• Wireless standard:IEEE 802.15.4
• USB charging power:to 20 W
• USB-A:DC 5 V/3 A, 9 V/2 A, 12 V/1.5 A
• TYPE-C:DC 5 V/3 A, 9 V/2.22 A, 12 V/1.67 A
• USB-A + TYP-C:DC 5 V/3.4 A maks.
• Dimensions without frame:50 x 50 x 42,2 mm
• Dimensions of the socket in the frame:80 x 80 mm

Included:

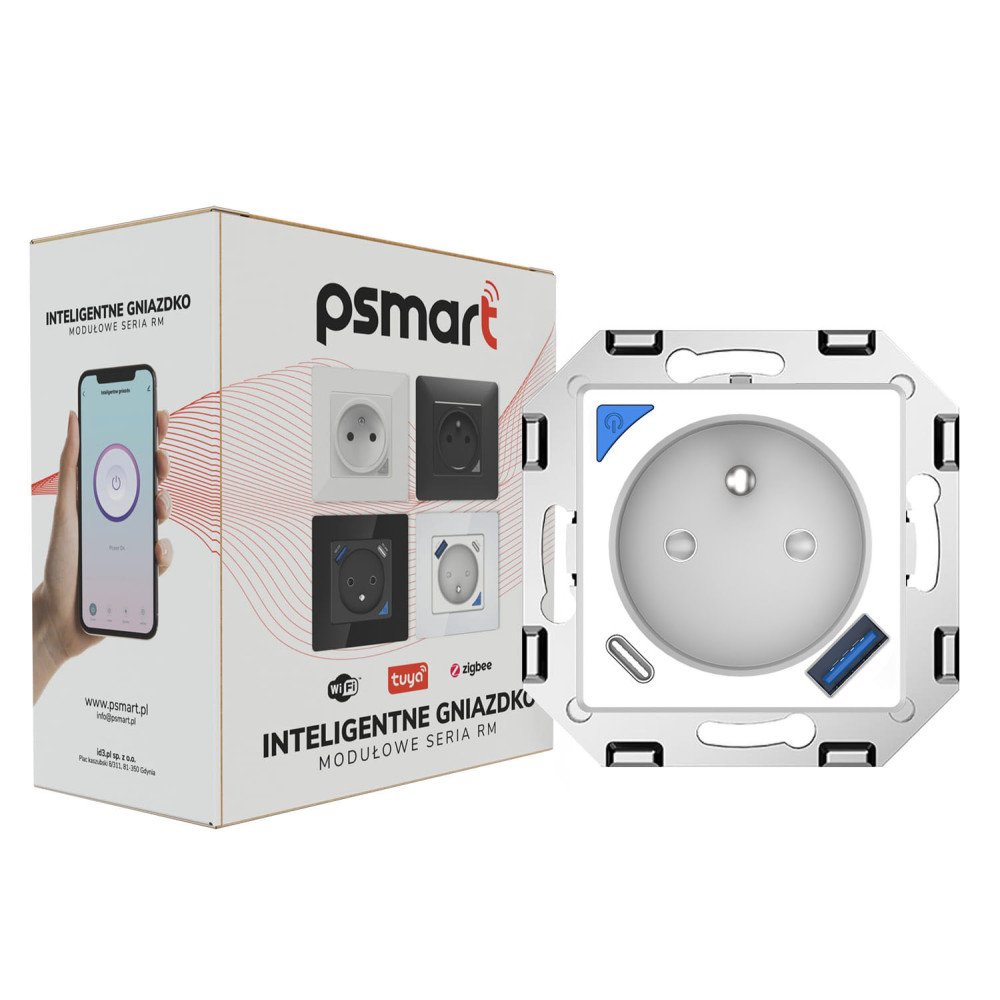

• PSMART USB measurement socket white RM ZigBee TUYA
• Screws for assembly
• Instruction

Product code:T440U

The offer also includes 1, 2 and 3-channel models, white and black RM series lighting modules, and dedicated 1, 2, 3 and 4 module frames!

Get any combination horizontally or vertically.

The modular design allows you to configure switches in 2, 3 and 4 module frames.
