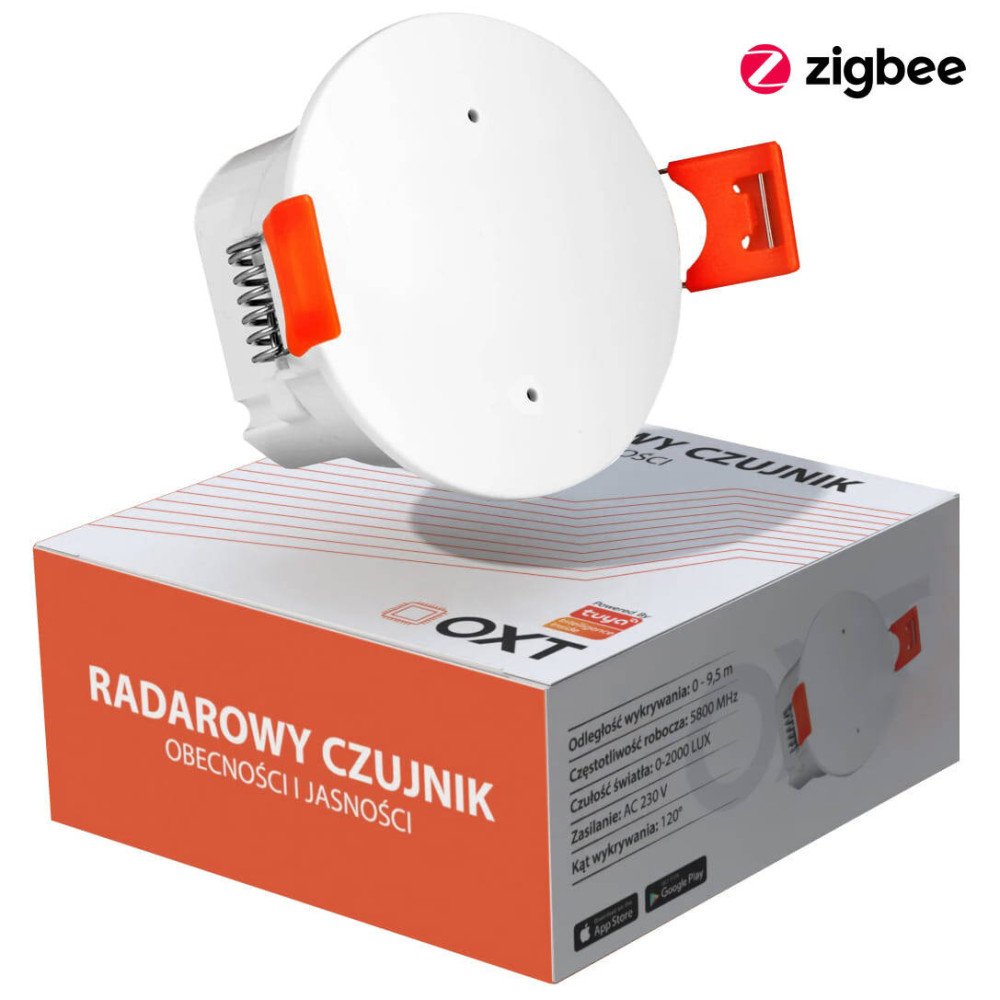

OXT | Radar Sensor | Presence Brightness

230V | ZigBee | TUYA

✅ Doppler radar actively detects presence in the environment

This ensures the light will never turn off during a shower – the sensor detects even the smallest movements, such as breathing, while you remain still.

✅ Built-in brightness sensor

Enables automation scenarios based on ambient light levels.

✅ Full compatibility with Home Assistant ZigBee2MQTT

Our offer includes screenshots showing the device in action within HA.

▶️ Presence Detection Features

• ✅True presence detection:Detects minimal movement such as breathing, even when sitting still.
• ✅Two detection zones:Near (micro-movements), Far (longer range, penetrating obstacles like glass or doors).
• ✅Detection through glass:The light won’t turn off if you are inside a shower cabin.
• ✅Presence history:View logs of previous detection events.

▶️ Control Automation

• ✅Lighting control:Configure automations directly in the app.
• ✅Advanced automations:Based on brightness and presence state (near, far).
• ✅Schedules:Set individual scenarios for specific days and times.

▶️ Light Adjustment

• ✅Automatic brightness adjustment:Reacts to real-time light intensity in the room.

▶️ Configuration Options

• ✅Motion detection sensitivity:0–9
• ✅Detection off-delay:10 s – 1500 s
• ✅Post-detection delay:0 s – 10 s
• ✅Minimum detection distance:0 m – 9.5 m
• ✅Maximum detection distance:0 m – 9.5 m

▶️ Compatibility Integrations

• ✅Home Assistant ZigBee2MQTT:Fully compatible with the system.

ℹ️ Additional Information

• ✅Updated version:Improved reporting and notification frequency compared to the previous model.
• ✅ZigBee TUYA gateway required:Necessary for proper operation.
• ✅Configuration:After installation, configure the sensor in the app; settings depend on the mounting location.

▶️ Build Your Own Smart Home

No need for wall chiseling or wiring!

The device works fully wirelessly, communicating with other system components in one environment (the so-called cloud).

✅Easy integration– connect and control lights, devices, or sensors without additional wiring.

✅Advanced scenarios– create automation between devices, e.g. alarms, alerts, or smart home routines.

✅App control– full system management from one place, using any mobile device.

✅Flexibility expandability– the system depends only on your creativity; our range of compatible devices is constantly growing.

ℹ️ You can optionally set the minimum and maximum detection distance for the target alarm zone from 0.1 m to 9.5 m.

ℹ️ Home Assistant App Screenshots:

ℹ️ Basics of the ZigBee Protocol:

The ZigBee protocol operates on the well-propagating2.4 GHzfrequency, ideal for indoor use.

ZigBee uses a MESH connection, meaningeach ZigBee device with full power (L+N) acts as a signal repeaterfor others.If a distant sensor cannot reach the gateway directly, it can connect through another powered ZigBee device(up to 3 devices in chain). This ensures reliability and stable connections.

ZigBee devicescommunicate with the hub in 0.2 secondsafter state changes, while WiFi requires about 5 seconds. This gives ZigBee a huge advantage for smart automation.

WithWiFi, issues begin to appear at around25 devices ❌

With aZigBee gateway, you can easily add50+ devices ✔️

ZigBee gateways and devices allowlong-term storage of parameters and device historysuch as door openings, temperatures, and motion detection logs saved months back.

ZigBee communicationconsumes very little energy, ensuringlong battery lifefor battery-powered devices.

ℹ️ The prepared hole for placing the sensor should be 50 mm in diameter

ℹ️ Specification:

▶️ Connectivity Power

• Communication protocol:ZigBee 3.0
• Power supply:AND 230 V
• Operating frequency:5800 MHz

▶️ Detection Measurement

• Detection angle:120° (ceiling-mounted)
• Detection range:0–9.5 m
• Illuminance measurement range:0–2000 lux

▶️ Build Protection

• Protection rating:IP20
• Dimensions:39 × 62 × 62 mm

ℹ️ Included in the box:

• OXT Presence Brightness Radar Sensor 230 V ZigBee
• Ceiling mounting bracket
• User manual

ℹ️ Product code: T160
