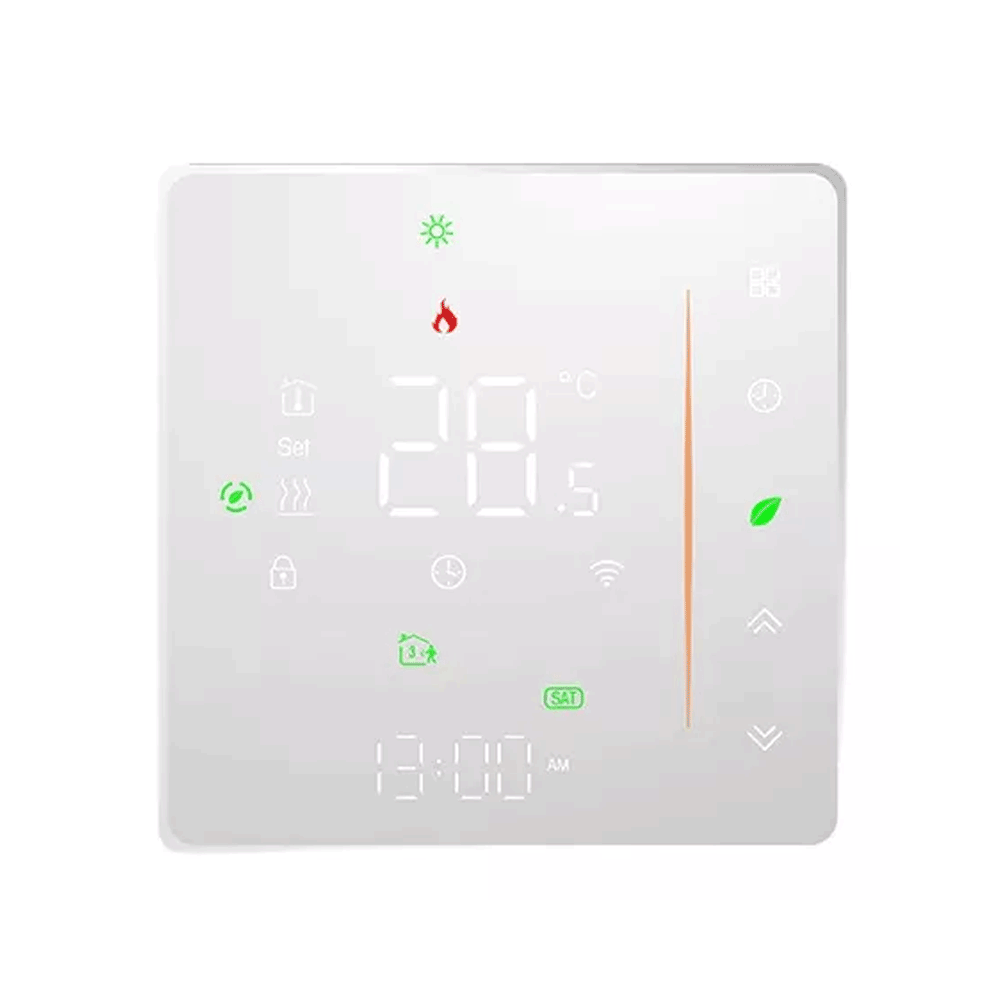

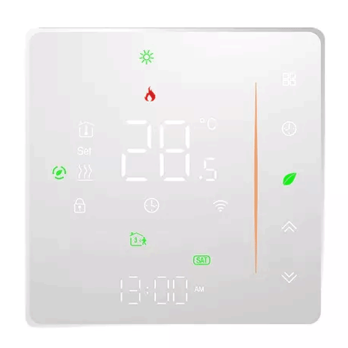

Smart ZigBee Thermostat

For Boilers Heaters | TUYA Smart | Touch Panel

✅ Precise Temperature Control

Built-in temperature sensor with the option to connect an external floor sensor (NTC3950, 10K, not included).

✅ Intuitive Touch and App Control

Easily adjust settings, temperature, and schedules via TUYA Smart or Smart Life apps.

✅ Works with Voice Assistants

Compatible with Google Home and Amazon Alexa for voice control.

Schedules and Automations

Weekly Programming

Set a 7-day schedule with up to 4 cycles per day, adjusting temperature based on occupancy, night mode, or absence. Create your own smart scenarios in the TUYA app.

ℹ️ Automations

• ▶️ Reacts to user location (GPS on phone)
• ▶️ Integrates with schedules and functions of other TUYA ecosystem devices
• ▶️ Automatically lowers or raises home temperature

✅ Modern Touch Panel

Large Screen with Brightness Adjustment

Large touch screen with brightness control for day and night modes. Perfect for modern interiors while providing intuitive operation and child lock.

✅ YOURS Smart Home

Wireless Integration with Other Devices

Create scenarios and automations by connecting the thermostat with other TUYA devices. Control temperature, alarms, lighting, and more from anywhere.

ℹ️ Screenshots from TUYA App

ℹ️ Wiring Diagram

ℹ️ Technical Specifications

• Max Load: 5 A
• Communication: ZigBee 3.0
• Power Supply: 95-240 V AC, 50~60 Hz
• Accuracy: ±1°C
• Temperature Setting Range: 5°C - 35°C
• Floor Temperature Range: 5°C - 99°C
• Power Consumption:
• Material: PC + ABS (fire-resistant)
• Dimensions: 86 x 86 mm
• Protection Class: IP20
• Buttons: Touch

ℹ️ Included in the Package:

• 5 A Relay Thermostat
• User Manual
• Mounting Screws

Product Code: TRZ065
