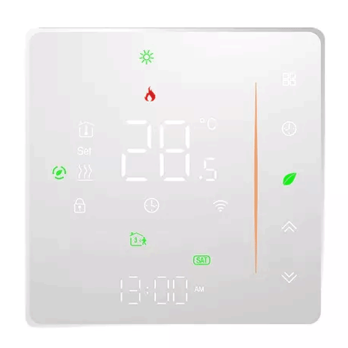

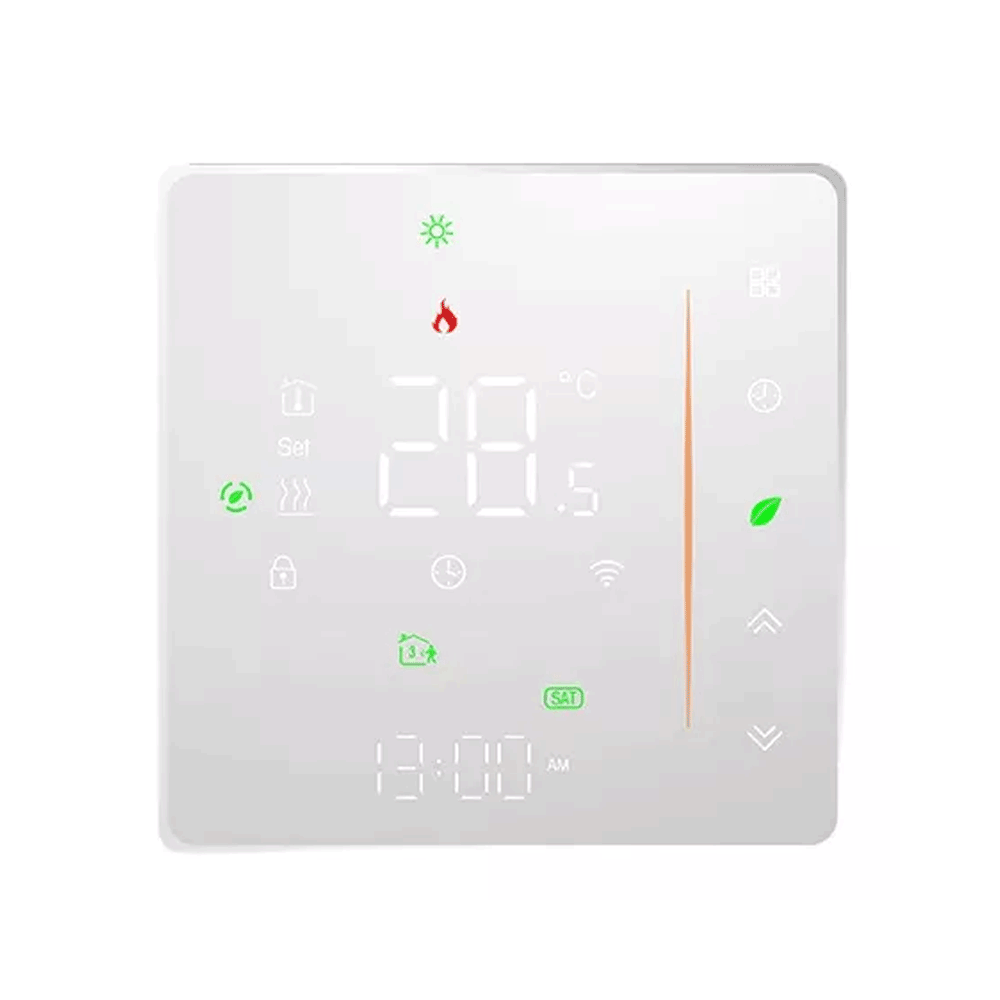

Smart Thermostat 16A Floor Heating White ZigBee TUYA

✨ The latest thermostat model displaying temperature on the screen and in the app

✅ 16A model for underfloor heating, electric radiators, infrared panels, and much more.

➡️ Smart ZigBee thermostat with TUYA app for building automation and home heating control.

⭐ Key Product Features:

• Precise built-in temperature sensor + option to connect external NTC3950, 10K sensor (included)
• LED display with adjustable brightness
• Temperature calibration from -9°C to +9°C
• Minimum and maximum temperature settings
• Memory function in case of power loss
• Touch control + free app for iOS and Android
• Modern design and easy operation
• Fits standard 60 mm wall boxes
• Programming: 7 days, up to 4 cycles per day
• Multi-user control sharing
• Compatible with Google Home and Amazon Alexa
• ⚠️ Requires external ZigBee gateway
• Supports TUYA smart scenarios
• Protection rating: IP20

‼️ NOTE: An additional ZigBee gateway is required for proper operation (available in our offer).

✔️ Heating Management

Set a 7-day schedule with up to 4 cycles per day. This way, you can easily adjust heating to your lifestyle.

✅ Lower the temperature at night or when you’re away to save energy. Adjustments can be made in seconds via the TUYA app – from anywhere in the world.

☑️ A properly programmed schedule ensures you don’t overpay for heating an empty house.

⚡ Automations

Connect the thermostat to the TUYA ecosystem and unlock nearly unlimited automation possibilities.

• Create manual and programmable scenarios
• Reactions based on user location (GPS)
• Automatic adjustments based on schedules and weather
• Integration with other smart devices in the TUYA app

✨ Intuitive Touch Panel

Large screen with adjustable brightness (day and night mode) ensures the device blends perfectly into any modern interior.

ℹ️ TUYA software allows quick temperature adjustment, configuration of settings, and child lock.

➡️ Your Smart Home Without Renovation

No need for wall channelling or wiring! The thermostat works wirelessly with other devices in the TUYA ecosystem.

⚡ Create advanced automation scenarios, alarm systems, or smart notifications – everything depends on your creativity.

ℹ️ Wiring Diagram

ℹ️ TUYA Smart App

Smart AppbyYours Inc.allows you to control the entire smart ecosystem – from WiFi, Bluetooth, to ZigBee devices.

• Quick setup and easy operation
• Control sharing with family members
• Voice control – Amazon Alexa, Google Assistant
• Automations and real-time notifications

⚡ ZigBee Basics

• 2.4 GHz frequency – ideal for indoor use
• MESH connectivity – every L+N device boosts the signal
• Instant response: ZigBee ~0.2 s vs WiFi ~5 s
• Stable even with 50+ devices
• ⚡ Very low power consumption – perfect for battery devices

ℹ️ Specifications:

• Max load: 16 A
• Power supply: 95-240 V AC, 50~60 Hz
• Communication: ZigBee 3.0
• Sensor: NTC3950, 10K 2.5m (included)
• Accuracy: ±1°C
• Temperature setting range: 5°C - 35°C
• Floor temperature range: 5°C - 99°C
• Displayed temperature range: 5°C - 99°C
• Operating temperature: 0°C ~ 45°C
• Operating humidity: 5% ~ 95% RH
• Power consumption: 1W
• Material: PC + ABS (flame-retardant)
• Touch control buttons
• Fits standard 60 mm wall boxes
• Dimensions: 86 x 86 mm
• Protection class: IP20

ℹ️Set Includes:

• 16A Thermostat
• NTC3950, 10K 2.5m Sensor
• User Manual
• Mounting Screws

Product Code: TRZ066
