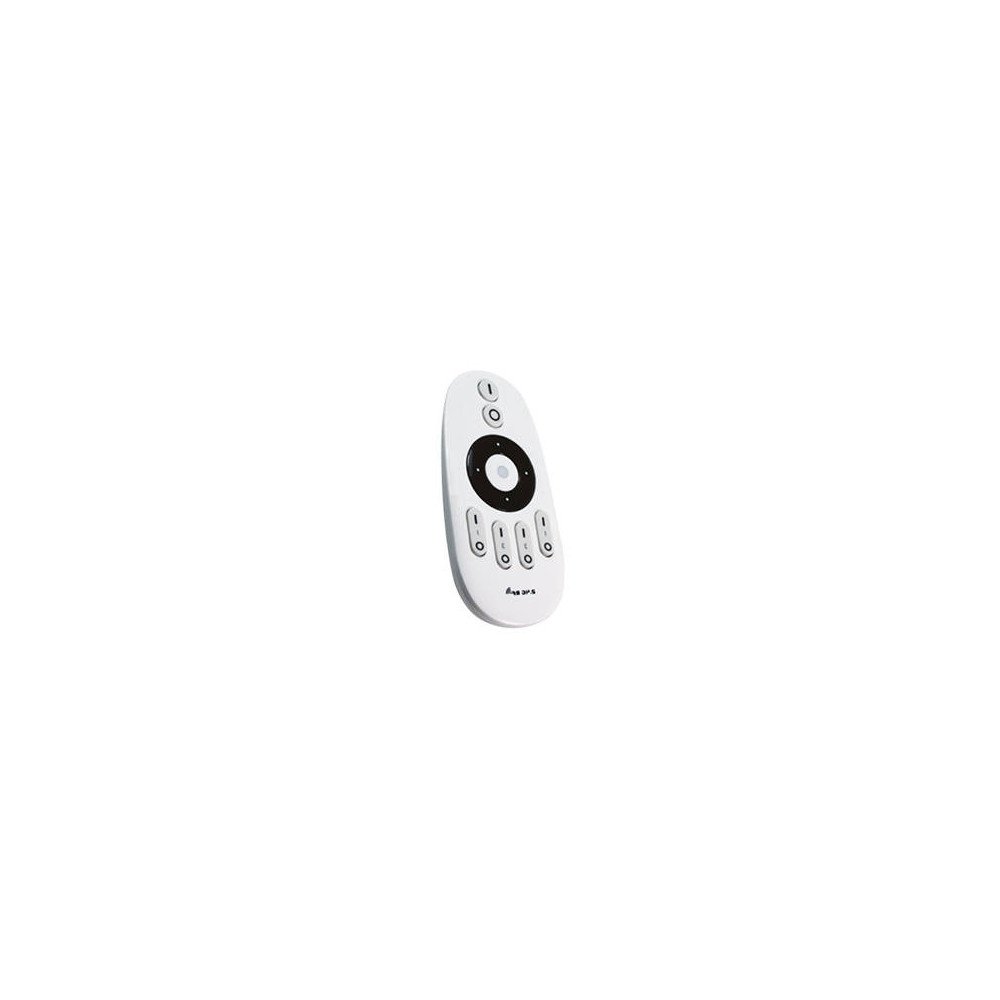

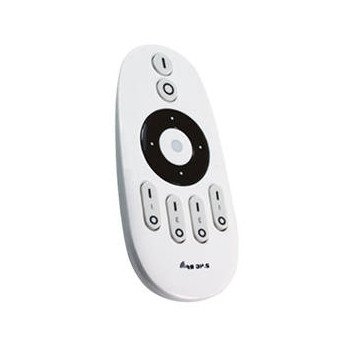

Remote control for GL LED 4 zone WW/CW DIM 2.4 GHz controller

The remote control works with GL series devices, connecting to them via closed 2.4 GHz RF communication

Get to know the offer of GL series products and combine them into one whole! Control the remote control min. controllers and GL lamps.

This is a high-quality product that allows you to control lighting in up to 4 zones. The remote control allows you to control WW/CW LED controllers with white temperature control and dimming.

Due to its compact shape, the LED remote control fits perfectly in your hand and is comfortable to use. Zones are selected using the keys on the remote control. It is powered by two AAA batteries. It has the ability to control the white color and allows dimming. You can control individual zones, and each zone can be assigned to multiple controllers, or you can control all zones at once.

Attention! The remote control is only compatible with GL series devices!

Main Features:

• 2.4 GHz radio frequency communication (GL series devices only)
• Compatibility with MONO and CCT controllers,
• Possibility to control several or a dozen controllers, bulbs or lamps
• Possibility to turn on and off 4 zones independently or simultaneously
• 7 Buttons + 1 "joystick" button
• Range up to 30m (open space)

ATTENTION! The device is only compatible with GL series products!

GL series remote control

• Supports standardMONO(single-color tapes) andCCT (change of white color temperature)
• Communication2.4GHz radio (it would be GL)
• Controls 4 zonesindependently or simultaneously
• Service controllers, LED bulbs, LED fixtures from the GL series

Compatibility with GL series devices.

Control system

It may consist of many devices connected to each other and controlled remotely using a remote control or a mobile device such as a smartphone or tablet.

4 Zone Control

The remote control allows you to control four zones, independently or simultaneously. You can assign many controllers, bulbs to one zone or divide devices to work in different zones.

Basic control functions

• DarkeningandbrighteningconnectedLED lighting
• Possibility to turn on/off all zones at the same time or each zone separately
• Two operating modes - modemonoandCCT(color temperature change)
• Instantly reduce brightness (night mode)
• Collaboration withZigbee Wi-Fi controller
• Possibility of expanding the installation at any time by adding additional devices or remote controls from the GL series

Specification:

• Application:CCT (CW / WW) DIM
• Number of supported zones/channels:4
• Control path: RF (only compatible with GL series)
• Radio communication range:up to 30 m in open areas
• Remote control dimensions:53mm x 22mm x 110,5mm
• Remote control power supply:2 x bateria 1,5V AAA
• Transmission frequency:2,4 GHz
• Tightness class:IP20

Product code:PLD014
