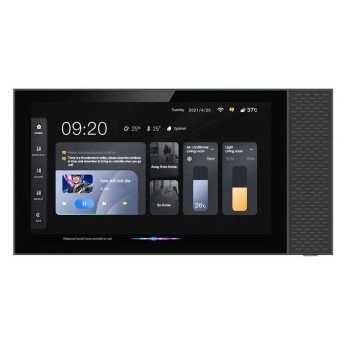

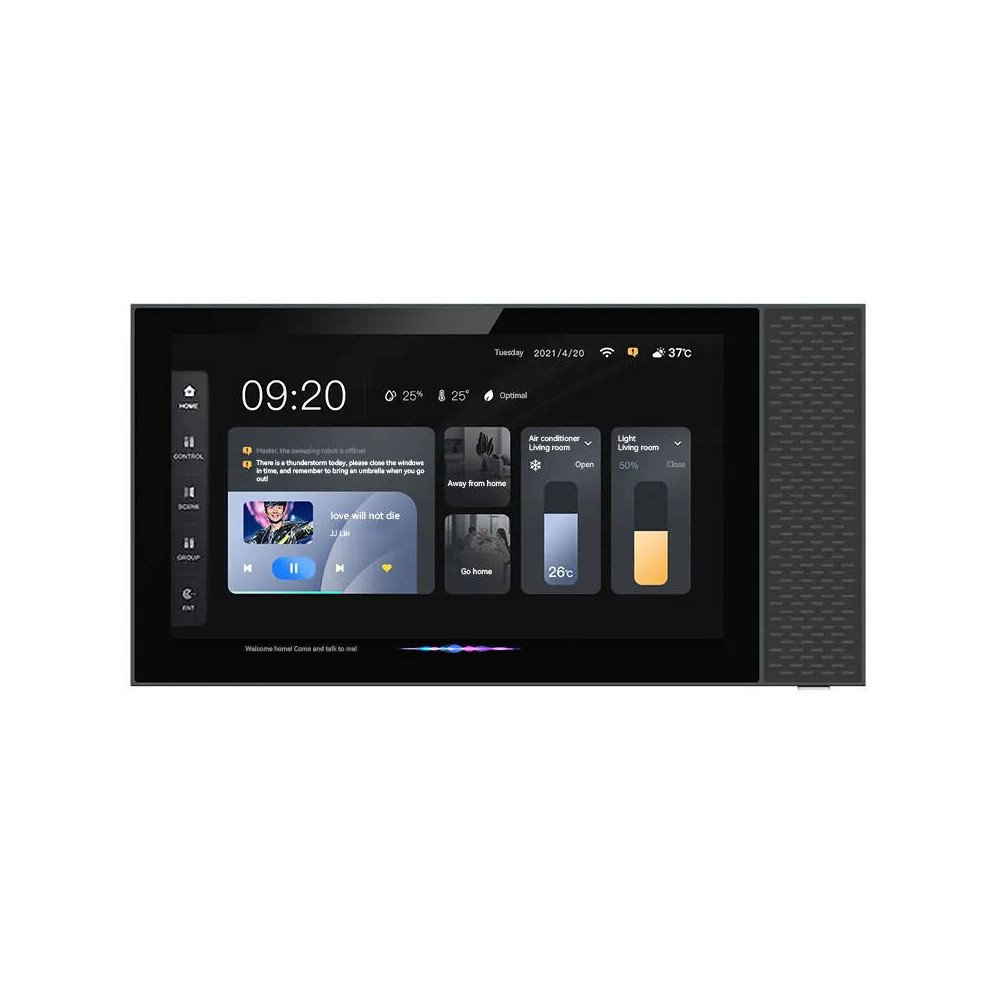

7" touch panel ZigBee WiFi Ethernet gateway TUYA

Multitasking function panel with a 7-inch touch screen, audio input and output

Main advantages:

• The bright and intuitive touch screen LCD 7"
• The panel connects to the network via 2.4 GHz WiFi or an Ethernet cable
• On the panel, you will see most of the previously added Zigbee devices to the TUYA Smart app
• Add up to 100 ZigBee devices to the Panel gateway
• Displaying the current time and weather on the Panel
• Supports TF card (8GB)
• Configuration of additional basic devices available from the main screen
• Access to rooms and devices in each of the selected rooms throughout the house
• Operation of thermostats, lighting, opening/closing curtains, music volume from the panel
• Ability to select, enable/disable color change, brightness of LED lighting devices from the panel.
• Quick access to ready-made scenariosTAP TO RUNfrom the buttons on the panel
• Built-in 4 microphones

Attention! For proper installation, it will be necessary to modify the current box. Cans suitable for the device are included in the set.

Command center in an expanded 7" touch screen panel. Panel with a special application supporting TUYA devices and scenarios

Control an unlimited number of devices connected to the free TUYA application. Add ZigBee devices to the Panel gateway. Manage all rooms by grouping them into individual rooms in the application. Create your own device automations to interact with your behavior or the applications you choose. Control your surroundings by programming advanced notifications and reactions to sensors placed around your home. Change the status of all intelligent lighting devices, control the color and light intensity of LED controllers or bulbs. And if you are in a hurry, turn on/off all or selected devices with one click, letting you know that you are leaving, and the panel will do the rest for you.

Enjoy unprecedented comfort when using smart devices. The 7" multifunctional panel is a unique solution from our offer, which will intuitively act as a control panel for managing the entire smart home in any way using scenarios and controlling added devices.

High-quality touch screenhas an IPS matrix.

The model is designed in the Android 8.1 system and has an input for audio circuits, an input for lighting circuits, as well as external ports - RS485 and Ethernet. The connected Ethernet cable option will replace WiFi communication, so the device can operate continuously on your network.

You will not need an additional ZigBee gateway due to the built-in function, which will replace the additional central device for ZigBee devices. Moreover, as the central point of your smart home, you will have control over most of the devices connected to the TUYA Smart application.

Choose intelligent scenarios prepared by you. Adjust devices according to activities (turn on/off), weather, location when entering or leaving a room within 100 meters, single and cyclical schedules, and event status of other smart devices.

The intuitive interface allows you to change settings very conveniently and flexibly. The screen will display a clear overview of the devices and the status of possible changes. Every user will derive incredible pleasure from using the product. All changes in the house, regardless of the room, will be available in one place.

Due to the panel's location in the flush-mounted plate, manufacturers have added the option of connecting two lighting circuits, thanks to which you can get rid of the unnecessary element of a standard switch right next to the panel. Lighting channels can be controlled as an additional built-in option or remotely from your phone.

Newly developed speaker, can switch freely

Industry-first support for seamless switching between your own speakers and external speakers. Meet the needs of various scenarios.

The panel has its own 2W speaker:can be used to wake up, react and combine scenes.The panel is equipped with a high-power amplifier that can be connected to two 2x25W speakers.Customers who need to listen to music can choose from their own speakers or Bluetooth speakers.

Build your own smart home

The device cooperates wirelessly with other peripheral devices and actuators in one environment in the so-called "cloud".

It is possible to build advanced control of home devices, warning or alarm system in a very simple way, using other cooperating elements, you can use the application to build a network of intelligent dependencies. The operation of the devices depends only on the creativity of the user.

The list of wireless system components is constantly expanding in our offer.

Smart AppofTuya inc.it is an essential element of the entire smart home ecosystem. It allows you to control all applications with Tuya technology. It is free to download for iOS and Android smartphones.

There are already over half a million different smart devices supported by Tuya technology. The application is available in many languages, both in Polish. It allows you to connect products via any communication protocol, from Wifi to Bluetooth to ZigBee.

For more demanding users, TUYA offers a cloud service for an additional fee, thanks to which all device registry will be stored remotely in the cloud, which will increase your security.

The main advantages of the Smart App:

• Fast registration and easy operation of multiple devices.
• Home management and sharing access to devices between family members.
• Communication via all protocols and even without a connection supported by Pegasus technology, so your devices will always be connected.
• Voice control via peripherals such as Amazon Alexa or Google Assistant.
• Advanced automation of connected smart devices.
• Event notifications directly on your smartphone.

Technical specifications:

• Input voltage:110V - 250V AC 50/60Hz
• Output voltage:2 circuits, ≤10-25W 4-8Ω
• Communication:WIFI 2.4GHz, Bluetooth, Ethernet
• Permissible room humidity:5% - 90% RH (non-condensing)
• CPU:Quad-core Cortex 1.5GHz
• ROM:8GB
• Screen:7", 1024x600HD IPS
• Dimensions:214,6mm x 114,6mm x 11,5mm

Included:

• 7" ZigBee WiFi TUYA touch panel
• 2 pcs of screws
• Instruction
• Can
• Mounting bracket

Code product: T502
