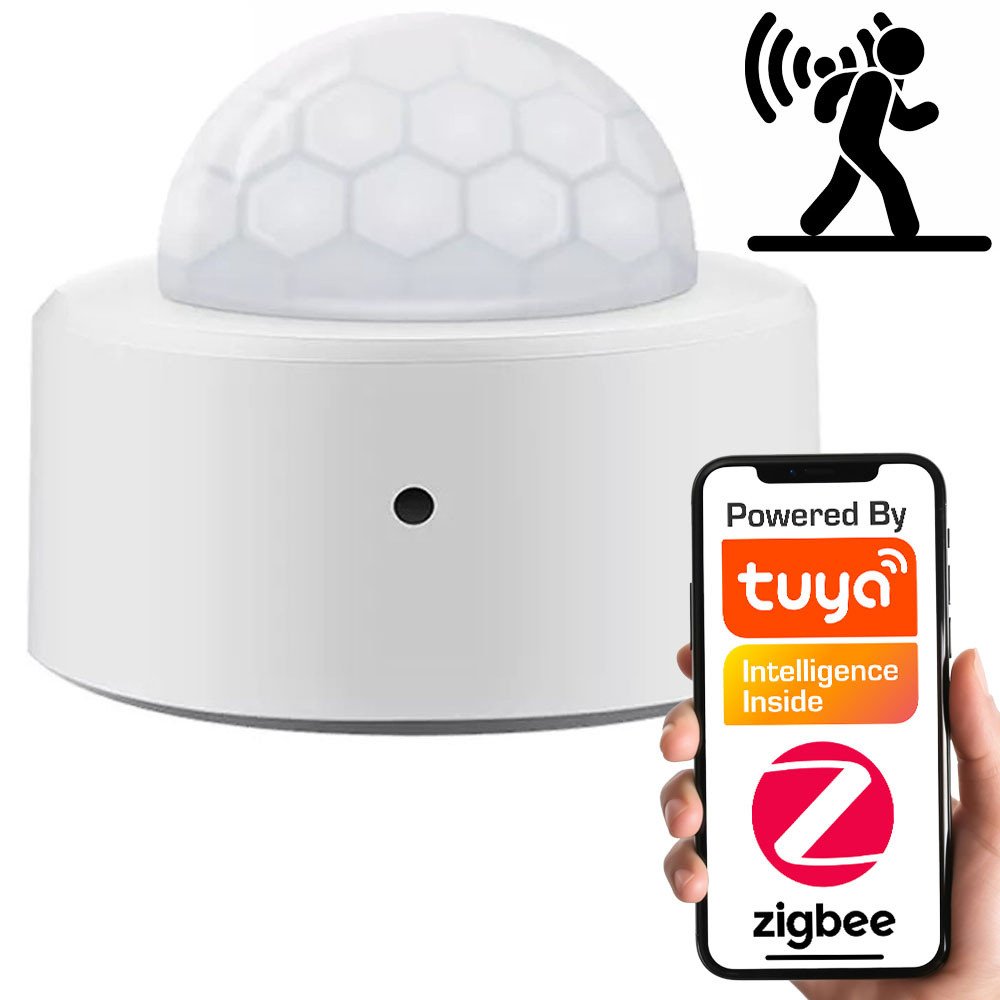

Micro Czujnik Ruchu Pir Zigbee 3.0 tuya

This model allows you to quickly switch to the no-motion detection state.

Key features

• Wireless operation in the ZigBee 3.0 network
• Setting the duration of motion detection (30s, 60s or 120s)
• It is possible to check the sensor status from any location with network access in the TUYA application
• The device signals motion detection
• The sensor records every state change and saves it in the application
• Free TUYA/SMART LIFE application for iOS and Android
• From the application level we can combine these devices into groups (same sensors)
• Possible cooperation with Amazon Alexa/Google Home - with devices compatible with these systems
• Compact shape and excellent workmanship, attached with double-sided tape. You can use it lying down, e.g. on a cabinet or on the ceiling/wall
• Advanced functions in automation - e.g. when motion is detected, turn on the light
• After leaving the room, the sensor will still be able to detect movement for 30s, 60s or 120s (depending on the setting in the application) minute and then after this time it can turn off the light

Attention! This device requires a ZigBee 3.0 TUYA gateway available in our offer.

Basics of the ZigBee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network issues. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.

Perfect for building motion detection systems, lighting automation thanks to the option of detecting the lack of movement in the room, alarm systems based on ZigBee 3.0 connectivity.

The sensor has extensive automation functions visible on the screenshots

Anti-burglary protection

When motion is detected, the sensor can turn on the alarm siren - after setting the appropriate automation in the application!

There's no one home? Automatic power off

The smart sensor can automatically turn off the power when no one is detected at home, saving household electricity.

Bramka ZigBee 3.0 TUYA

Micro PIR ZigBee motion sensor offers precise motion detection. Additionally, in the settings you can configure the no-motion detection period for the automation of other devices.

ZigBee 3.0 sensors ensure fast connectivity to your ZigBee gateway when status changes. ZigBee Mesh, greater automation possibilities, local memory for parameters and devices.

You can automate all your other devices from the TUYA app with the parameters of this sensor.

Discover completely new possibilities of the TUYA Smart Life system

Unlike WiFi devices, most of the automation takes place locally on your gateway, not in the cloud, which gives you a huge advantage in execution time and functionality.

The presented product is a PIR sensor that allows you to configure the function of detecting motion or its absence. Based on this parameter, you can configure the automation of turning the light on and off.

If you are looking for sensors with full presence detection functionality, look for WiFi ZigBee radar/microwave occupancy sensors in our offers.

Specification:

• Battery:CR2450
• PIR detection range: 5 Meters
• Viewing Angle:120°
• Communication protocol: Zigbee 3.0
• App compatibility: YOURS, SMART LIFE
• A TUYA ZigBee gateway is required for operation
• Working temperature: -20°C +60°C
• Operating humidity: 10% - 90% (non-condensing)
• Dimensions: 33m x 27mm

Included:

• Micro ZigBee 3.0 TUYA motion sensor
• Double-sided adhesive tape

WHO PRODUCT: T651
