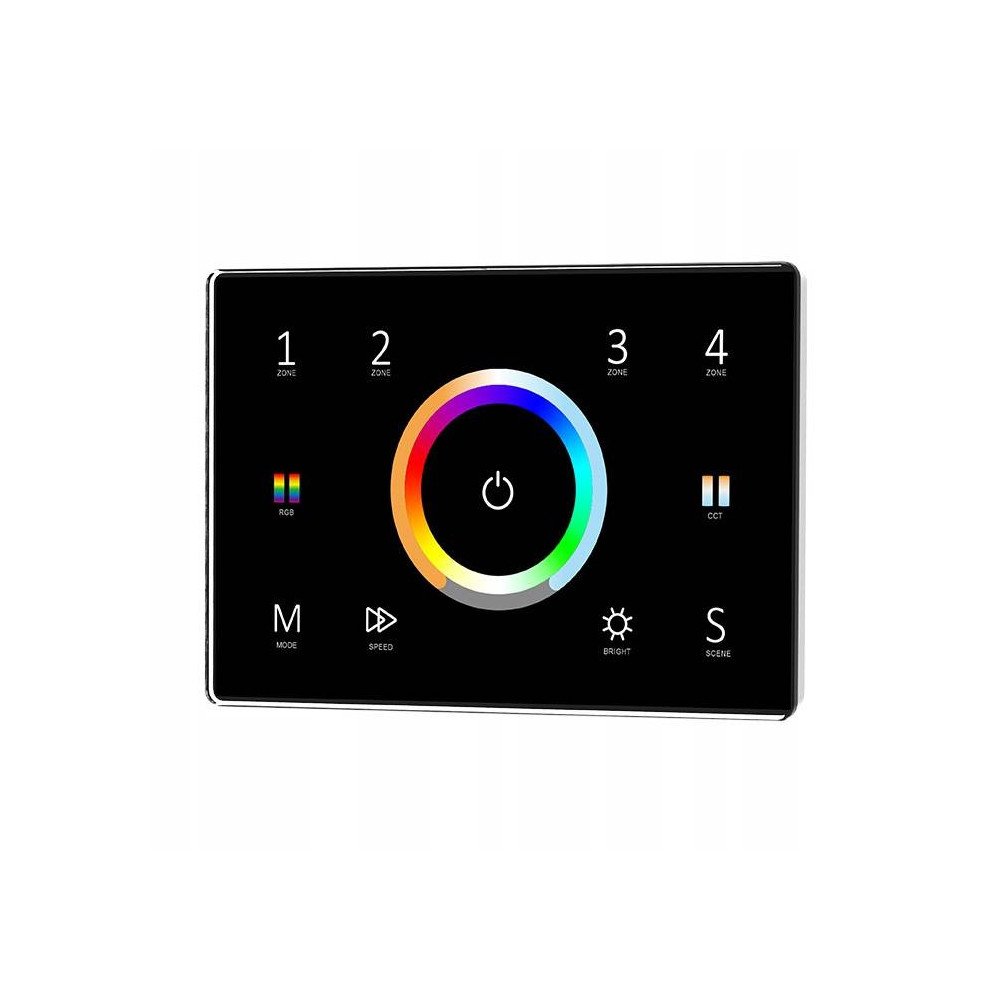

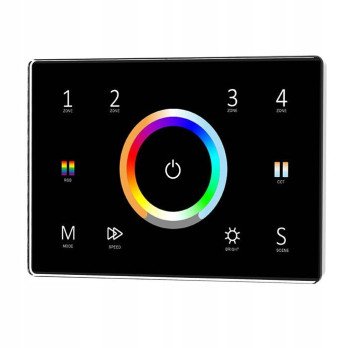

Wall panel RF remote control DMX controller for controllers, bulbs, lamps, LED dimmers RGB/RGBW/RGB+CCT from the SD series

This is a high-quality product designed to control LED controllers and other lighting devices SD series.

It can also work as a DMX Master.

The device has an aesthetic appearance and will fit into any interior.

Device operation:

The device has a rear mounting element and is powered by 230V

• 1,2,3,4 Zone selection:Multiple controllers can be assigned to each zone
• Power: turning on the light of a remote controller or other SD series light source via an RF signal
• Mode:Controller mode change 10 dynamic modes
• SPEED: Speed ​​- change the speed of automatic modes
• White:Quick white color selection
• RGB:Color change
• CCT:Changing the color temperature
• District: Select brightness or colors from the color palette
• Bright:Changing the brightness of the light
• Scene:Selection of scenery

In addition to adjusting the color temperature, the device is also used to:turning off the lightorchanging its brightness. In additioncontrols 4 zonesand has 10 dynamic modes with adjustable speed of light changes.

Attention! The remote control is only compatible with LED controllers, relays and dimmers from the SD Series ("SD Series" in the name)

Intuitive touch panel

Control panel 4 LED zones in a room with the possibility of configuration color temperatures, colors (RGB, RGBW, RGB+CCT), brightness and scene Due to its aesthetics, it will perfectly fit into any interior! It has a blue LED that illuminates the panel at night, and when pressed, the red LED lights up temporarily.

Four lighting zones

The controller allows you to freely edit 4 zones in the room any configuration using intuitive and high-sensitivity panel. In just a few clicks, easily adjust the room lighting according to your needs.

Change colors and color temperatures freely thanks to the digital precision circle located in the center of the panel. You can control the color or color temperature of white with this circle. The ability to customize scenes will diversify the lighting of rooms with a unique atmosphere for reading, working, studying and several other ready-made sceneries.

Advanced lighting system

The LED panel is fully compatible with ZigBee, WiFi, RF controllers, lamps and SD series bulbs from our offer. Connecting LED strips or other light sources to the device will allow you to control 4 zones without any restrictions. You can add any number of devices to each zone. The owner of the entire ecosystem can be creative by creating all kinds of light compositions according to their own needs and for any application.

Create your own extremely advanced lighting system with the SD series!

The SD series in our offer includes many models of relays, dimmers, ZIgBee and WiFI LED controllers and a whole range of remote controls.

Specification

• Output signal:RF (2.4GHz)
• Input current: 100 - 240V AC
• Output current:Max. 0.1A
• RF Range: 10m (in open space)
• Temp. actions:-30°C - 55°C
• Degree of protection:IP20
• Certificates:Ce, EMC, LVD, RED
• Color:Black

When product: PLD061C
