MOUNTED WIFI ROLLER SHUTTER CONTROLLER + REMOTE CONTROL

Many ways to control the blinds.

Tap the switch

• /open, close/ if the switch is mounted and connected. Possibility to connect the controller without a wall switch /simpler connection/.

Control in the smartphone application /open, pause, close/.

Voice control with Google Home, Amazon Alexa.

Use the remote control to control the blinds /open, pause, close/ control range up to 30 m.

The built-in RF module allows you to remotely control the blinds, even if WiFi is not available.

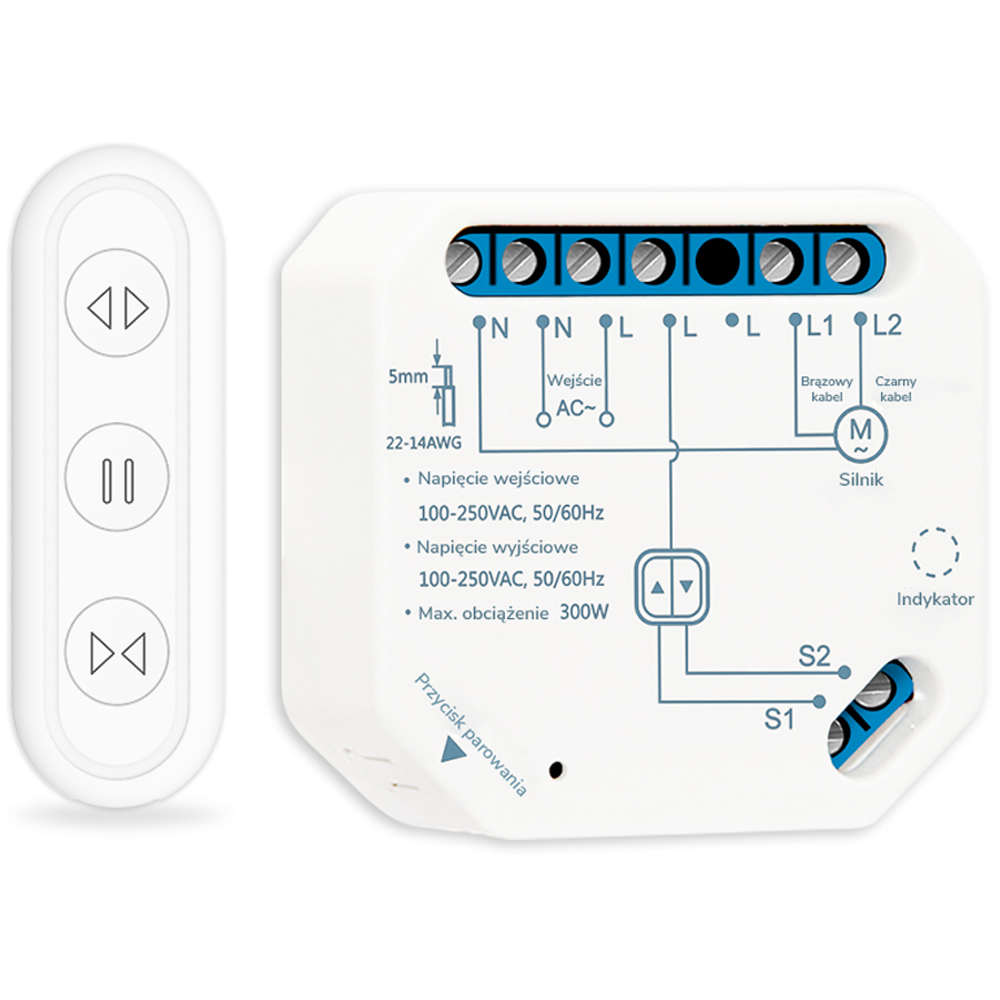

Third generation WiFi shutter switch module with RF remote control switch

The equipment has many ways to control electric blinds:

• By switch on the wall (open - close, no pause option)
• By application (open - hold - close function)
• By pilot RF(open-pause-close function) remote control works offline, while we have problems with the WiFi network - the operating range is 30m.
• By means of assistant voice type Google Home/Alexa

Time measurement function, remote control from the application

Program the switch module in the "smart life/Tuya" application, then control your roller blind by phone and set the time schedule.

For example:

• Open the blinds at 7:00 a.m
• Close the blinds at 7 p.m
• Open/close the blinds after 5 hours

You can control your smart curtains with your mobile phone anytime, anywhere.

ATTENTION!

Remember to turn off the power before connecting the device. Connecting under voltage may damage the device.

Motor neutral wire is required, usually the neutral wire color is blue, please do not install the switch with any DC motor (5-24V). The controller requires an input voltage of 100-250V

If you need additional information, please contact me.

Technical Data:

• Input voltage: 100-250VAC, 50/60Hz
• Wiring: neutral wire ground wire L1 L2
• Maximum load: 300 W
• Wi-Fi standard: 2.4 GHz 802.11 b/g/n /does not support 5 GHz/
• RF: 868 Mhz
• Standby consumption: less than 0.5W
• Wymiary: 48mm x 47mm x 22mm
• Remote Control Color: White
• Application: TUYA and Smart Life
• Programming automatic opening and closing

Included:

• In-wall controller
• RF remote control (with battery)
• Pilot lanyard
• A holder for mounting the remote control on the wall
• Double-sided stickers for the remote control holder
• Connection cables according to the instructions
• Screws + mounting screws
• Screwdriver
• User manual

Product code: T524
