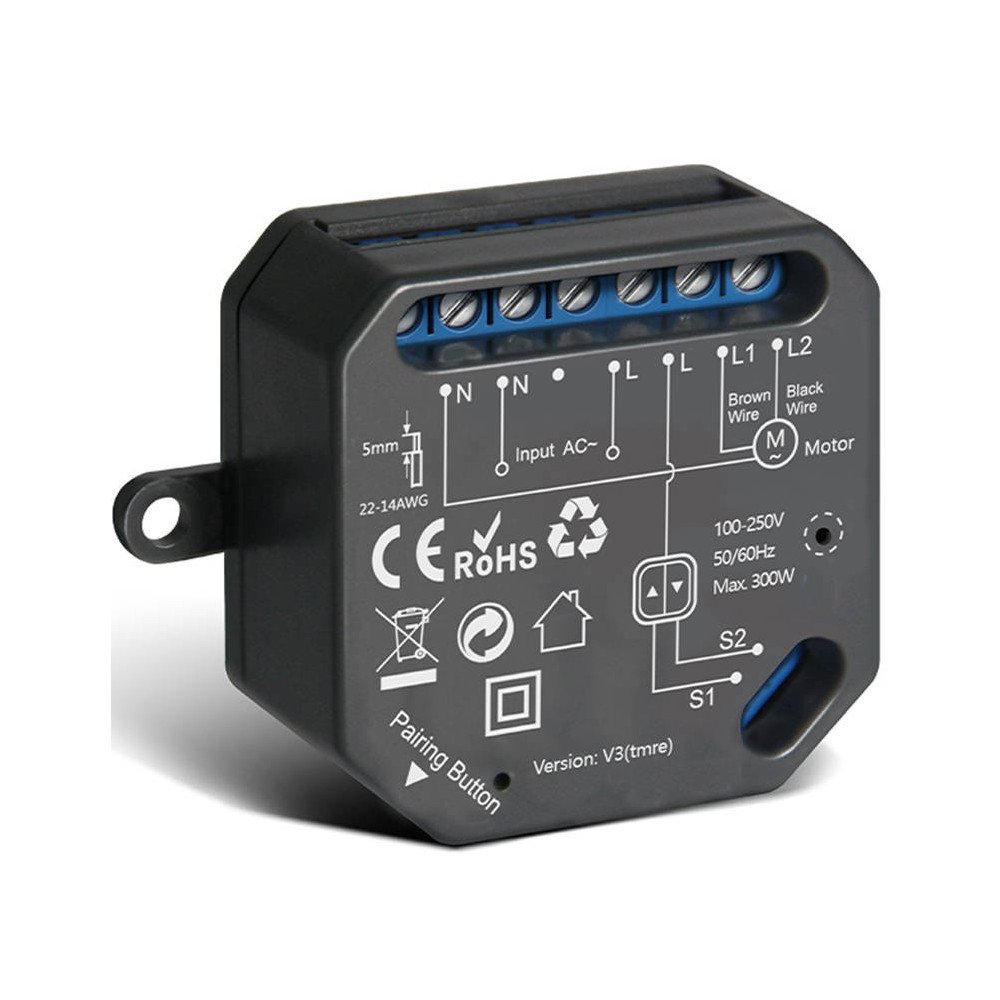

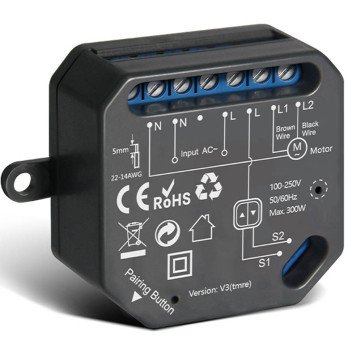

TUYA WiFi built-in roller blinds and curtains controller

New intelligent WiFi curtain roller shutter switch module. Make your blinds intelligent!

Technical data:

• Input voltage: 100-250VAC, 50/60Hz
• Wiring: Neutral wire, L1, L2, ground wire
• Maximum load: 300 W
• Wi-Fi Standard: 2.4GHz 802.11 b/g/n (Does not support 5Ghz Wi-Fi)
• Power consumption in standby mode: less than 0.5 W
• App name: Smart Life or Tuya
• Voice control: Google Assistant, Amazon Alexa
• Housing: plastic, fireproof ABS material
• Certification: CE, EMC, RED, RoHS

Main advantages:

• dedicated to the applicationTUYA SmartiSmart Life
• works with any gate mechanismwith input for a normally open button
• checking the opening/closing status in the application
• notifications about opening and closing the roller shutter
• reminder to open the roller shutter after the set time
• roller shutter status control and control from anywhere in the world
• voice control withGoogle HomeiAmazon Alexa
• ability to set a timer and work schedule
• manual and remote control from the application level
• Compact mini size, small size allows it to fit into most junction boxes

4 ways to control the switch

• Open or close using the app on your phone
• Setting a time schedule (when to open or close the roller shutter)
• Voice control via Google Home, Amazon Alexa
• Control via a physical switch on the wall

Group function and device sharing

You can create a group in the app to manage all the blinds in your home at once. An additional function is the ability to share devices with all family members.

Automation

Thanks to the functiontimeryou can set, for example, automatic closing of the gate after opening within 2 minutes - you set the time yourself. You no longer have to remember to close the gate!

Schedulesthey are used to periodically open and close the gate at specific times of the day.

Specification

• Input voltage: 100-250VAC, 50/60Hz
• Wiring: Neutral wire, L1, L2, ground wire
• Maximum load: 300 W
• Standard Wi-Fi: 2.4 GHz 802.11 b/g/n (does not support 5Ghz Wi-Fi)
• Power consumption in standby mode: below 0.5 W
• Application name: Smart Life lub Tuya
• Voice control: Asystent Google, Amazon Alexa
• Material: fire-resistant ABS plastic
• Certification: CE, EMC, RED, RoHS
• Patented product: no
• Numer iso: ISO9001

We have all the accessories you need in the box, you don't have to incur additional costs.

Included:

• intelligent Wi-Fi curtain switching module
• screwdriver
• cable for wiring
• double-sided tape
• instruction

Product code: T523
