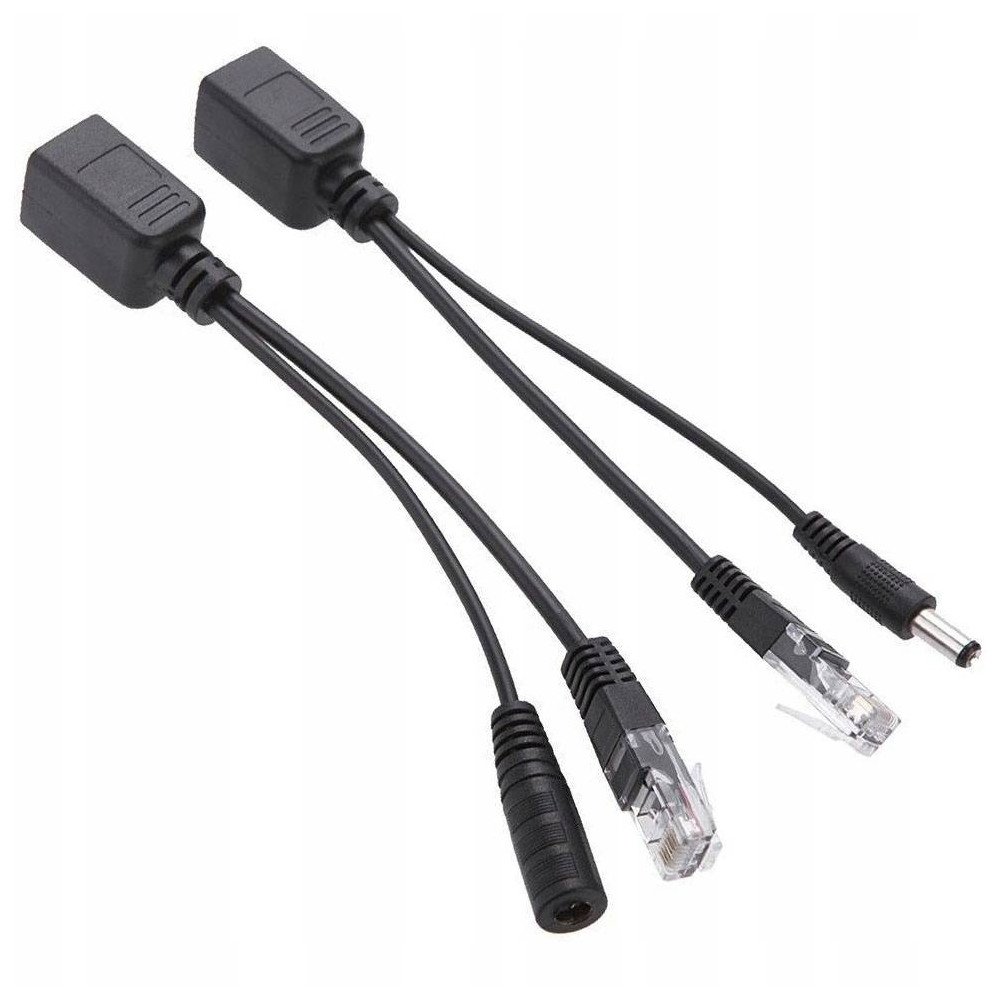

POE Ethernet adapter power supply over twisted pair for cameras

Thanks to the adapters, there is no need to pull additional power cables - power and data are transmitted through the same cable (twisted-pair Ethernet). This solution is perfect wherever power supply is impossible or difficult (e.g. basement, attic, staircase, roof).

The adapters have an integrated RJ45 connector and a 2.1/5.5 mm power supply that fit most popular WLAN devices and cameras on the market.

POE Set of PoE adapters with RJ45 and 2.1/5.5 connectors

• Destiny:The set is used to transmit the TCP IP signal and power via one twisted pair cable
• Connector for twisted-pair cable:RJ45 socket (TCP IP and power)
• TCP IP data transmission:pairs 1-2, 3-6
• Power transmission:pairs 4-5, 7-8
• Input/output connector for TCP IP:RJ45 plug
• Input/output connector for power supply:JACK 2.1/5.5 socket / JACK 2.1/5.5 plug
• Dimensions:190 x 21 x 21 mm
• Comments:The set includes two POE adapters (input, output)

The set is used to transmit the TCP IP signal and power via one twisted pair cable. In the case of data transmission (TCP IP), pairs 1-2 and 3-6 are used, while power is transmitted via pairs 4-5 and 7-8.

The set includes 2 passive adapters, male and female.

Product code: U010
