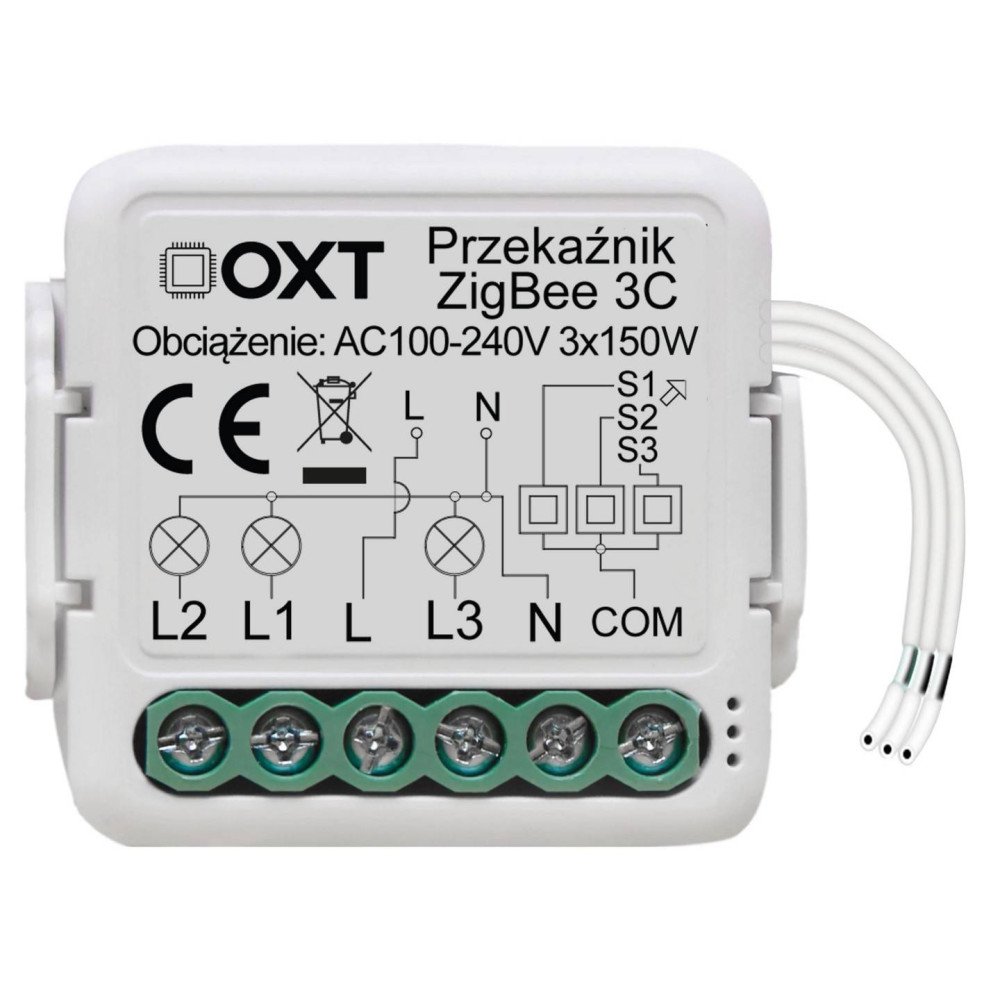

OXT mini relay module 3 ZigBee circuits TUYA

➡️ Permit moduleZigBeedesigned to turn your traditional switch or socket into a smart device controlled by your smartphone!

✨ Smart home in your hands

⭐ Main advantages ⭐

✅ Works with a traditional bistable switch or monostable switch

✅ Control electrical devices from any location in the world from your Smartphone

✅ Control from the most popular home automation application TUYA(available for free in the App store or Google play)

✅ Creationintelligent automationdepending on e.g. the weather or time, sunrise, sunset, other events in your TUYA ecosystem

✅ Time schedules, set the action to specific times

✅ Possible cooperation withAmazon Alexa/Google Home depending on the type of ZigBee gateway used

✅ Timery, count down how long the relay should be on

✅ Fits in the end box behind the switch

✅ Can be used with any electrical device within maximum power

✅ Possibility to control stair / cross lighting by wire or after setting in the application

✅ Schedules- switching on the device/lighting at specific times of the day, e.g. at sunrise or sunset

✅ Advanced rules and scenarios in the app

ℹ️ Attention! To operate this module, you need a Zigbee 3.0 TUYA gateway available in our offer.

Basics of the Zigbee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network issues. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.

ℹ️ Connection diagram

ℹ️ Dimensions:

ℹ️ Specification:

• App:TUYA Smart / SmartLife
• Communication:ZigBee 3.0
• Power supply:90-250V ~ 50 Hz
• Max power: LED:3x 150W, Resistive 3x 650W
• Max current:3x 3,3A

Attention! This model requires full power in the box.

ℹ️ The set includes:

• OXT mini relay module 3 ZigBee circuits TUYA
• Fixing clip
• User manual

Product code: T263
