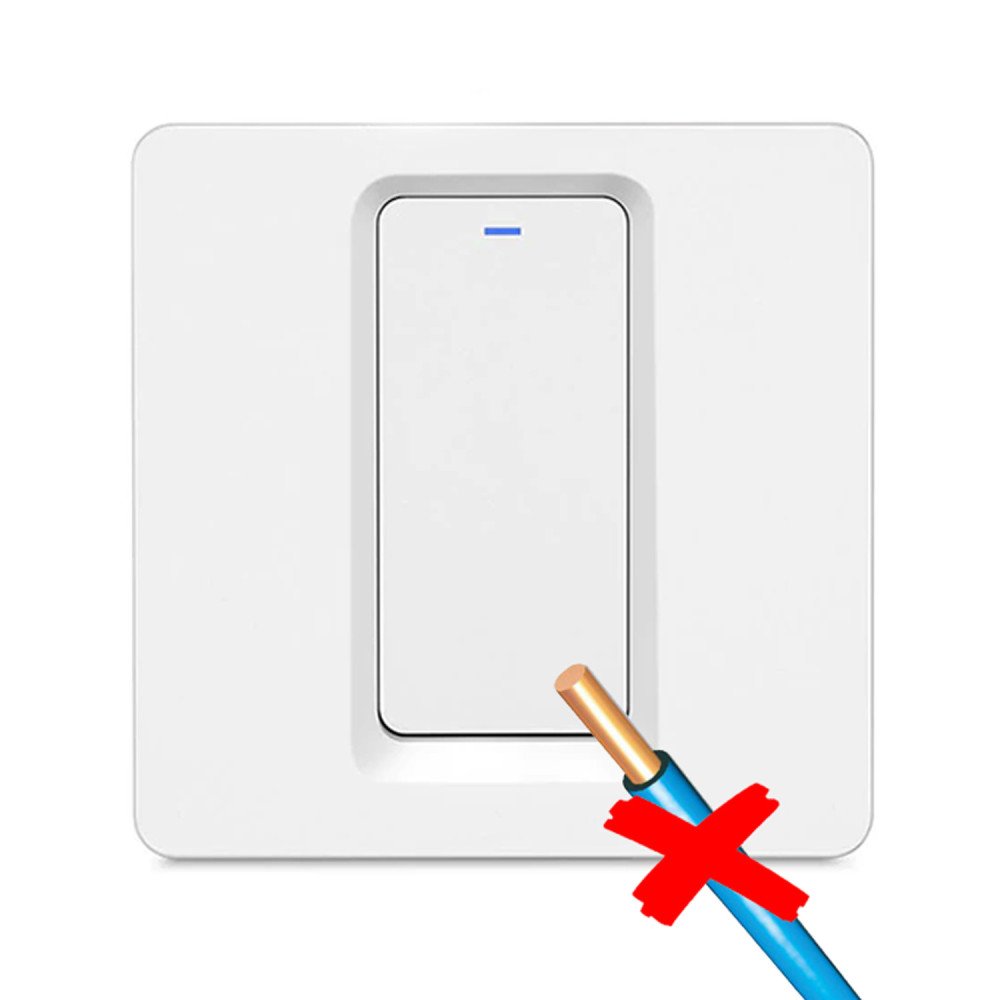

Smart Switch 1 Channel Optional N Wire KT Series ZigBee Tuya

The Smart Wall Switch allows users to remotely turn on and off one connected lighting circuit from anywhere from the TUYA app. Automation at specific times is also possible, which you configure from the application level.

The switch can be used for newer installations (with an N wire) and for older ones (without an N wire). This allows for easy and intuitive replacement of current light switches with intelligent ones.

The device cooperates wirelessly with other sensors and actuators. Such ZigBee cloud communication will save unnecessary breaking of walls and running cables.

Main advantages:

• Control via the popular TUYA Smart | application Smart Life from anywhere in the world
• Voice controlviaAmazon AlexatheGoogle Assistant, only for devices compatible with these systems
• Switchcan be useddonewer onesinstallation(with N wire)i doelders (without N core)
• Set state after power loss: on, off or remember last status
• Checking current statusdevice (on/off) in a dedicated oneTUYA Smart phone application
• Creating complex onesscenarios that will connect different ZigBee devices in a frameworkautomation
• Possibilitysharing the houseother family members in the TUYA mobile application
• Availableschedule, according to which the device should be turned on or off automatically
• Elegant appearance and high quality of workmanship
• It suitsfor standard 60 mm cans
• Possibility to turn on/off the status LED on the switch

ATTENTION! For proper operation, an additional ZigBee communication gateway is required, available in our offer.

Devices without N are only used to operate lighting circuits, they do not work with switching power supplies and transformers! Improper use may result in damage to the device that is not covered by the warranty.

Voice control

The device based on a ZigBee gateway allows connection to voice assistants for convenient control. Compatibility of voice assistants applies, for example, to popular solutions such as Google Assistant/Nest or Amazon Alexa.

Build your own smart home

Thanks for the solutionbased on a ZigBee gateway, you can intuitively and easily expand your home with additional smart devices in the same network. It is possible to buildadvanced, remote,and evenautomatedcontrol devices at home. This will allow you to meet the requirements of various areas of life, from simple home comfort and aesthetics to the security of alarm and monitoring systems.

Using the TUYA mobile application, you can build a network of intelligent relationships using various devices that cooperate on a ZigBee signal. Their operation depends only on the creativity of the user. Here are examples of just a few of them:

• motion detected after midnight - turn on the light, send a notification to your phone and turn on the alarm
• the bedroom door was opened in the morning - turn on the soft light and turn on the kettle in the kitchen

List of itemswireless systemis constantly expanded, check out other devices for the TUYA application in our offer.

Screenshots from the TUYA application

Basics of the ZigBee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network issues. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much broader and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.

Illustrative diagram

The product is a switch that can be used for installationwithoutneutral veinin a can. The minimum load of 1 circuit required for proper operation is 3W. For such a connection, use the capacitor included in the set (according to the diagram).

Additionally, it can be connected to newer installations with full power supply in L and N boxes.

Diagrams available below and in the user manual.

Devices without N are intended only for operating lighting circuits, they do not work with switching power supplies or transformers. Improper use may cause damage that will not be covered by the warranty.

Dimensions:

Specification:

• App:TUYA Smart | Smart Life
• Communication:ZigBee 3.0
• N+L power supply:AC 100-240V
• Power supply L:AC 220-240V
• Max. load for N+L installation:600 W per channel
• Max. load for installation without N:400W per channel
• Min. load:3 W
• Number of channels:1
• Color:white
• LED backlight
• Temp. work:-10℃ ~ 45℃

Included:

• 1-channel switch with optional ZigBee 3.0 neutral wire
• Mounting screws
• Condenser
• Packaging
• User manual

Product code:T591
