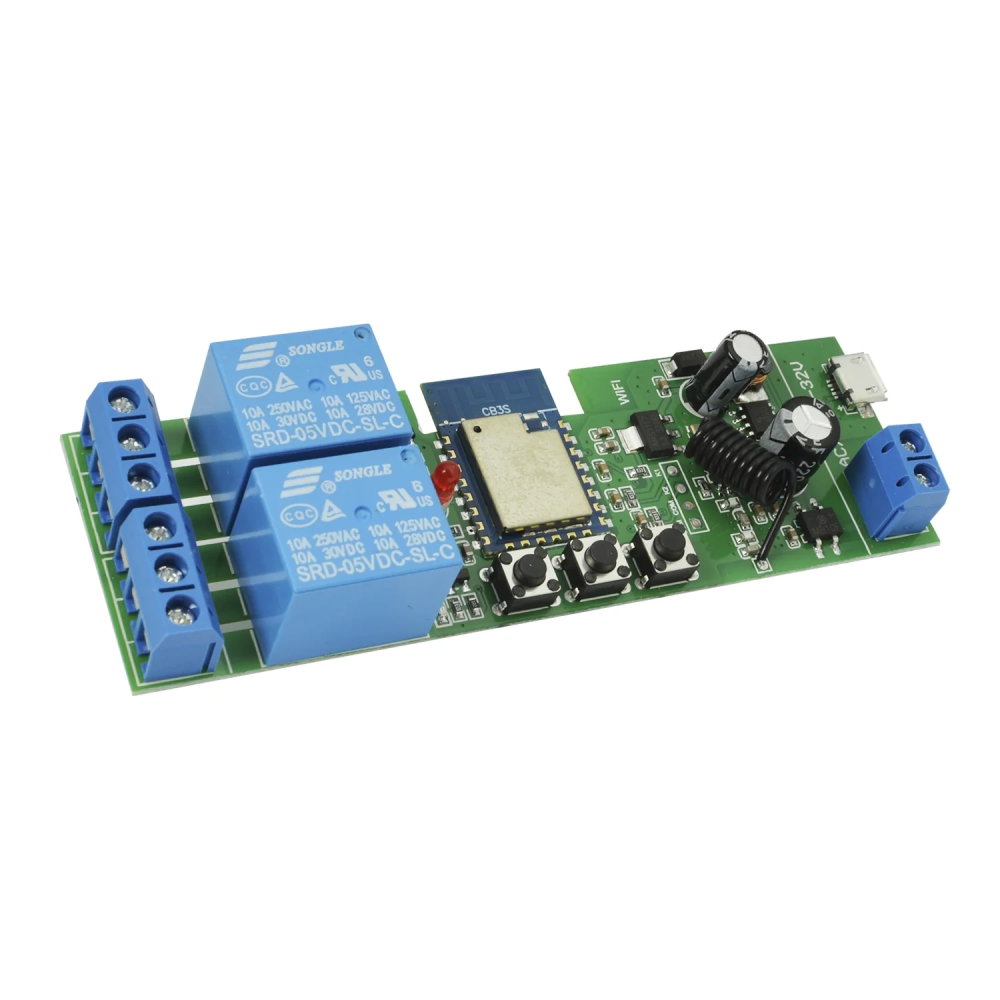

TUYA 2CH DC 5-32V 2 channels WiFi+RF voltage-free

WITH SUPPORT FOR RF433.92MHz REMOTES (remote controls in our other offers)

Power supply - 5 V Micro USB or 7-32 V AC/DC

3 operating modes: monostable (pulse), bistable (self-locking), with time delay.

Pins for connectionexternal physical buttons K1,K2,COM

Application:

The switch is perfect for controlling lighting, gates, actuators, door control, button signaling, computer control, access control, voltage-free control - heating furnaces, control of 230 V devices

Compatibility – Works perfectly with Google Home or Amazon Alexa voice assistants

Connect it to your gate module in place of the manual button contacts and you have a smartphone-controlled garage door.

Application:

The switch can be used to control access, turn on a computer, garage door, etc

The use of an unstabilized transformer or power supply may result in damage that is not covered by the warranty.

The device works with Tuya Smart - the most popular application for IoT devices (Internet of Things)

The application works in Polish, you can add and control various smart devices that we have in our offer

Operating modes:

• Jog (default)- momentary monostable mode, press the remote control button, the relay will turn on. Release the remote control button - the relay will turn off. Mode not supported by the application, in the application it works monostable - impulse.
• Self-locking- bistable mode allows you to turn on devices that remain on until they are turned off by pressing the remote control/application again. Classic relay operation mode.
• Variable- turn on one relay, the other one will turn off

Specification:

• Input Power:AC/DC 7-32V or USB 5V/500mA
• Two input interfaces:7-36 V lub micro USB 5 V
• Exit:0 V - NO/COM/NC x2
• Channels:2
• Dimensions:105mm x 34mm x 12mm
• Receiver:RF433.92 MHz fixed codes EV1525
• Working mode:monostable/bistable/variable
• Input voltages:5 V DC lub 5 V/7-32 V AC/DC
• LEDs 3 LEDs that indicate working mode, WiFi status, relay status.
• Working conditions:-30° C to 45° C, humidity less than 95%
• Standard:Wi-Fi 2,4 GHz
• Security mechanisms:WEP/WPA-PSK/WPA2-PSK"NC": Normally closed relay"COM": Common"NO": Normally open

The set includes:

• Tuya 2-channel relay controller with RF433 MHz function
• Packaging
• User manual in Polish

PRODUCT CODE:SWT042R
