WITH SUPPORT FOR RF433.92MHz REMOTES (remote controls in our other offers)

Power supply - 5 V Micro USB or 7-32 V AC/DC

3 operating modes: monostable (pulse), bistable (self-locking), with time delay.

Application:

The switch is perfect for controlling lighting, gates, actuators, door control, button signaling, computer control, access control, voltage-free control - heating furnaces, control of 230 V devices

Works with Google Home, Amazon Alexa

Connect it to your gate module in place of the manual button contacts and you have a smartphone-controlled garage door.

Application:

The switch can be used for access control, turning on a computer, garage door, etc

• Input power supply: AC/DC 7-32V or USB 5V/500mA
• Two input interfaces: 7-36V or micro USB 5V
• Output: 0 V - NO/COM/NC x2
• Channels: 2
• Wymiary: 105mm x 34mm x 12mm
• RF433.92 MHz receiver, fixed codes EV1527
• Operating mode: monostable/bistable/variable
• Input voltages: 5V DC or 5V/7-32V AC/DC
• LEDs 3 LEDs that indicate working mode, WiFi status, relay status.
• Operating conditions -30° C to 45° C, humidity less than 95%
• Standard Wi-Fi 2,4 GHz
• WEP/WPA-PSK/WPA2-PSK security mechanisms

  "NC": Normally closed relay - normally closed

  "COM": Common

  "NO": Normal open - normally open

The device works with Tuya Smart - the most popular application for IoT devices (Internet of Things)

The application works in Polish, you can add and control various smart devices that we have in our offer

Operating modes:

• Jog (default) - momentary monostable mode, press the remote control button, the relay will turn on. Release the remote control button - the relay will turn off. Mode not supported by the application, in the application it works monostable - impulse.
• Self-locking - bistable mode allows you to turn on devices that remain on until they are turned off by pressing the remote control/application again. Classic relay operation mode.
• Variable - turn on one relay, the other one will turn off

The set includes:

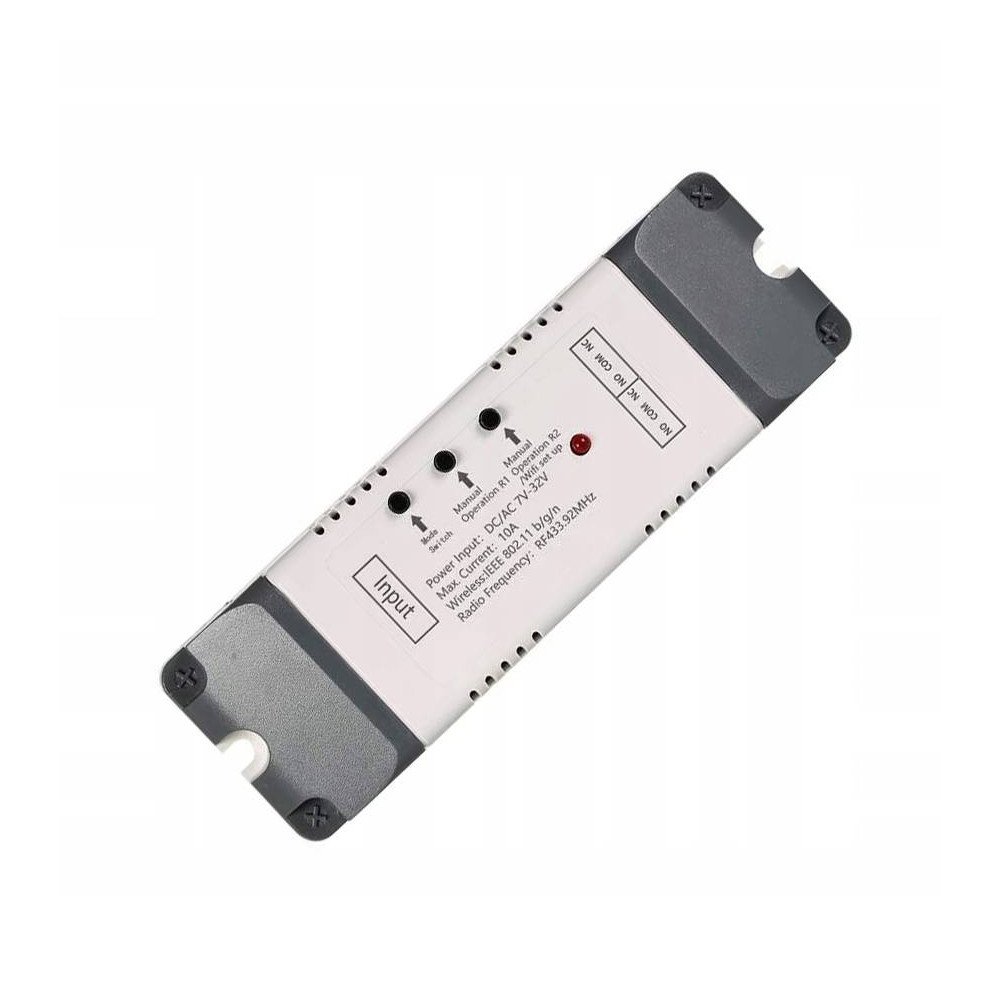

• 2-channel relay controller in Tuya housing with RF433 MHz function
• Packaging
• User manual
• Sales document

WHO PRODUCT: SWT042RB
