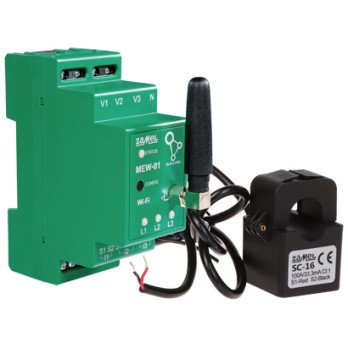

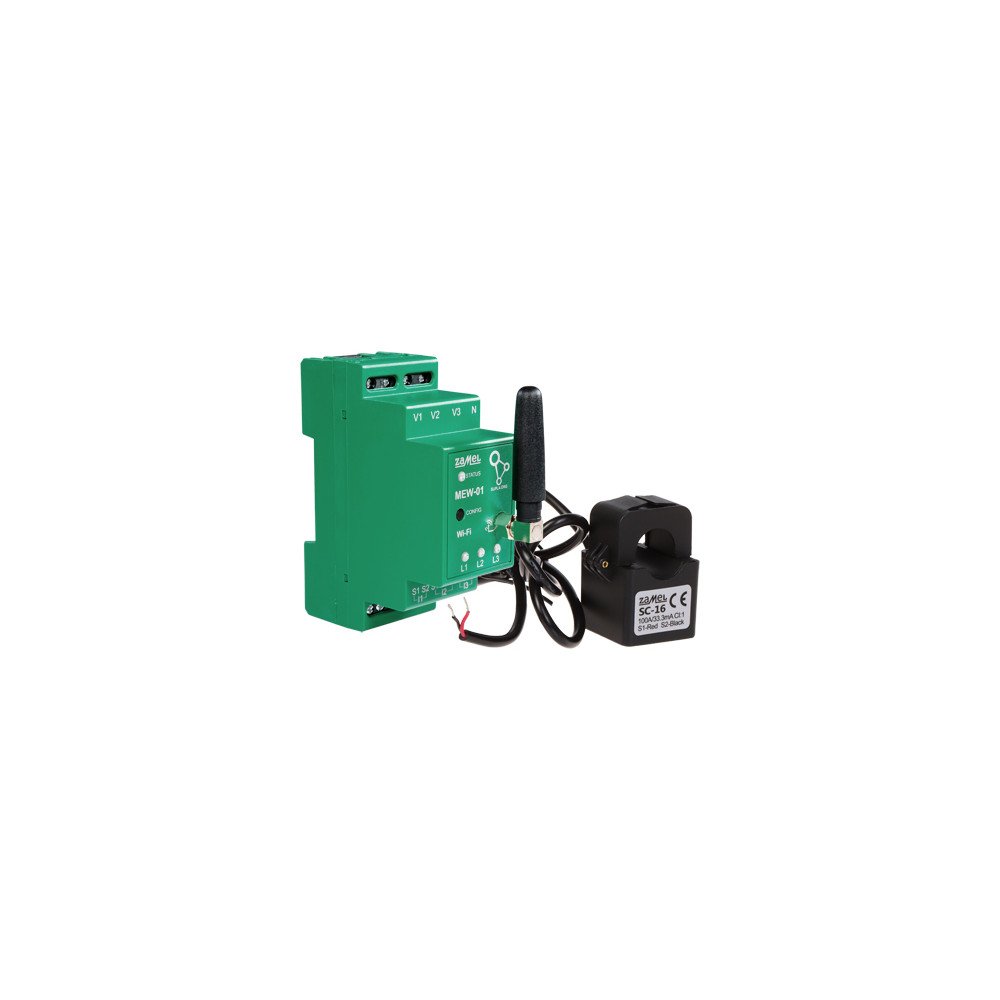

ELECTRIC ENERGY MONITOR MEW-01/1F SUPLA ONE-PHASE ZAMEL

ELECTRIC ENERGY MONITOR MEW-01/1F SUPLA ONE-PHASE ZAMEL

€320.30
Tax included
Device type:Electric Energy Monitor, One-phase / Three-phase;Wireless:Wi-Fi, 2.4 GHz - IEEE 802.11 b/g/n;Rated voltage:230 V / 400 V AC, 50 / 60 Hz;Measurement unit:kWh;Connectors type:screw terminals;Housing:DIN, TS-35 rail mounting;
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Support: SLENDER
Device type: Electric Energy Monitor, One-phase / Three-phase
Wireless: Wi-Fi, 2.4 GHz - IEEE 802.11 b/g/n
Rated voltage: 230V / 400VAC, 50 / 60 Hz
Voltage tolerance: -20 % ... 15 %
Measurement unit: kWh
Measurement method: Semi-indirect measurement using an current transformer - 1 pcs included
Current: 100 A - Max. current
LCD display:
RS-485 ports:
Connectors type: screw terminals max. 2.5 mm²
Mobile phones support: The
Measured parameters: frequencyVoltageCurrent Nominal power Reactive power Apparent Power Power factorPhase angleActive power consumedActive power returnedReactive power consumedReactive power returned
Main features: Control from a Web browserData export in "*.csv", "*.ods", "*.xlsx", "*.html" formatsWorking with Home Assistant, Grafana, Zabbix, Power BICompliance with the MQTT protocolTwo-way monitorMonitoring of voltage spikesLED indicationPossibility to manually program scenarios from the built-in APIPossibility of integration with external softwareThe external SMA RP connector allows to move the antenna outside the distribution board
Housing: Plastic, DIN, TS-35 rail mounting
"Index of Protection": IP20
Operation temp: -10 °C ... 55 °C
Width in 17.5 mm modules: 2
Weight: 0.1 kg
Dimensions: 90 x 84 x 35 mm
Manufacturer / Brand: ZAMEL
Guarantee: 2 years
ZAMEL
NS9624
1 Item

Data sheet

APP
Google home
Home Assistant
Protocol
BLE
GRE
HTTP
HTTPS
LIN
MQTT
RS-485
SPI
Wi-Fi
Voltage
240V
IP Class
IP20
