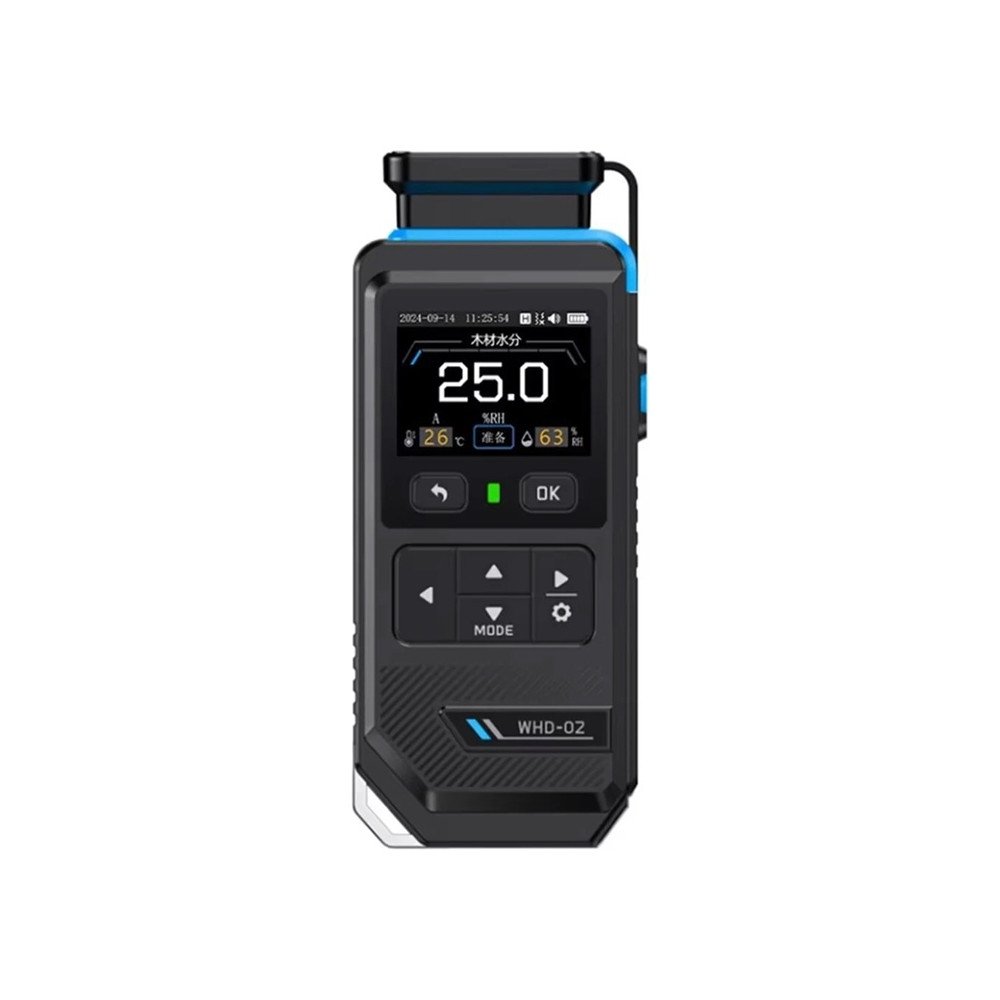

FNIRSI WHD-02 Pin-Type Wood Moisture Meter

FNIRSI WHD-02 Pin-Type Wood Moisture Meter

The FNIRSI WHD-02 is an advanced meter with a 2" color screen that allows you to quickly and accurately measure the moisture content in wood while simultaneously monitoring ambient temperature and humidity. The device offers 7 measurement modes, a resolution of 0.1%, and a sampling time of approximately 0.5 seconds, so results appear almost instantly. The ability to store up to 30 events, visualize data in graph form, and utilize a triple alarm (audible, visual, and vibrating) makes the WHD-02 model ideal for many applications, such as in a woodworking shop or during the inspection of building materials. Measuring approximately 63 × 28 × 148 mm and weighing about 185 g, the device fits comfortably in the hand and easily fits into a tool bag. The included carrying case makes it easy to store and transport the meter, and the USB-C cable allows for convenient charging and software updates.

Precise measurement and convenient data analysis

The meter is equipped with seven measurement modes that allow you to adjust the range to the material being tested. The measurement range is from 0.1% to as high as 55%, depending on the selected option, allowing you to monitor the moisture content of various types of wood and other materials, such as cardboard or plastered walls. With a resolution of 0.1%, you get accurate data that helps prevent problems associated with excessive moisture, such as cracking, warping, or mold growth. The large, 2-inch color display shows not only the current measurement result but also temperature, relative humidity, and battery level. The device also offers a special graph mode updated every 0.5 seconds, which makes it easier to observe and analyze changes in real time. You can choose between a light and dark interface theme, which improves usability in various lighting conditions.

Useful features

The meter allows you to set alarm thresholds for humidity that is too low or too high. When the set values are exceeded, it can trigger an audible alarm, backlight, and vibration, immediately drawing attention to abnormal results. Additionally, the device stores up to 30 alarm records in chronological order, starting with the most recent, which facilitates subsequent analysis and documentation of measurements. The meter also supports software updates via the USB-C port and allows you to adjust screen brightness, volume, date and time settings, sleep mode, and automatic shutdown. The built-in data retention feature and intuitive control buttons make operation convenient even during intensive use.

Included

• Wood moisture meter
• Carrying case
• USB-A to USB-C cable
