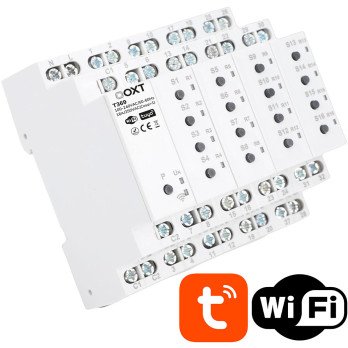

OXT | Relay Controller | Wi-Fi

16 Channels | 16A Per Channel | Dry Contact Outputs

Tuya Smart Life | DIN Rail Mount

▶️ Comprehensive Control Center

• 16 Channels in One:A powerful module allowing independent management of up to sixteen circuits. Perfect for control cabinets, irrigation systems, or smart installations in large buildings.

• Dry Contact Outputs:Full versatility – you can control devices running on12V, 24V, or230V. The module acts as a physical switch for each channel individually.

• High Performance:Each of the 16 relays supports a load of up to16A, allowing direct connection of lighting, pumps, or actuators.

▶️ Reliability and Connectivity

• Tuya / Smart Life App:All 16 channels are visible in a single app on your smartphone. Control your devices while at work or on vacation.

• Fast Response:Thanks to the optimized protocol, commands are executed almost instantly, and automations can run smoothly within your smart home ecosystem.

• Universal Control:Full control from your phone(Android / iOS)from anywhere. Ability to assign custom names to each of the 16 outputs.

• Voice and Manual:Compatible withGoogle HomeandAmazon Alexa. Additionally, physical buttons on the housing allow for manual switching of each channel.

▶️ Automation and Scenarios

• Schedules and Countdown:Set precise operating hours for each channel separately. You can program, for example, the duty cycle of pool pumps or driveway lighting.

• Power-on State Memory:The module remembers whether it should return to work or remain off after a power failure.

• Work Visualization:A clear panel with 16 LEDs allows you to instantly check which circuits are currently active.

▶️ Design and Connection

1. Power Supply:The module can be powered by AC 100-240V.
2. Relay Outputs:16 pairs of dry contacts (COM/NO).
3. Wi-Fi Status:LED indicating the connection status with the wireless network.
4. DIN Rail Mounting:Designed for standard 35mm rails in distribution boards.

Technical Specification

▶️ Electrical Data

• Supply Voltage:AC 100-240V
• Maximum Current:16A per channel
• Number of Channels:16
• Contact Type:Dry Contact (Potential-free)

▶️ Connectivity

• Wi-Fi Standard:2.4GHz b/g/n
• System:Tuya Smart / Smart Life
• Integrations:Google Home, Amazon Alexa, IFTTT

▶️ Build

• Housing:Fireproof ABS material
• Mounting:35mm DIN Rail
• Dimensions:90 x 65.6 x 90 mm

ℹ️In the Box:

• 16-Channel Wi-Fi Smart Relay Controller Tuya
• User Manual

Product Code: T369
