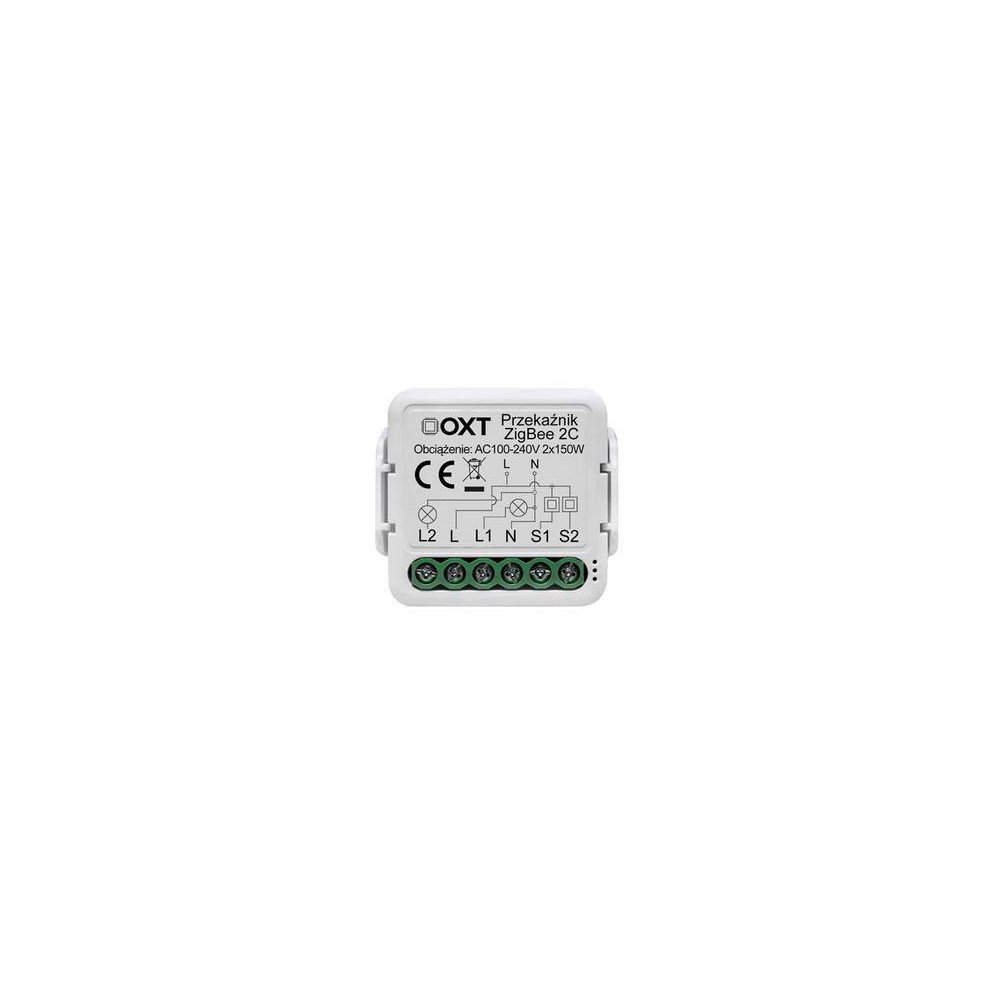

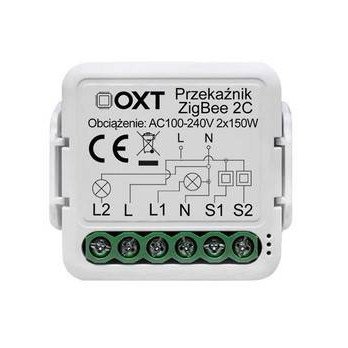

OXT Mini Module | Relay | 2 Channels | ZigBee | TUYA

▶️ Turn a traditional switch or socket into a modern smart device!

The compact ZigBee flush-mounted module offers a quick way to enable smart control of your lighting and power — without replacing existing devices.

• ✅ Smartphone control
• ✅ Full automation
• ✅ Compatible with Tuya Smart or Zigbee2MQTT ecosystems

✅ Switch compatibility: Works with traditional bistable or monostable wall switches.

✅ Remote control: Manage your electrical devices from anywhere in the world using a smartphone.

✅ YOURS app: Control through the popular Tuya Smart app (free on App Store and Google Play).

✅ Smart automations: Create scenarios based on weather, time, sunrise/sunset, or other TUYA events.

✅ Scheduling: Set devices to turn on/off at specific times automatically.

✅ Voice assistant integration: Compatible with Amazon Alexa and Google Home (depending on the ZigBee gateway used).

✅ Timer function: Set a countdown after which the relay will switch off automatically.

✅ Compact size: Fits into a standard wall switch box.

✅ Universal use: Can control any electrical device within the rated power limits.

✅ Staircase/cross control: Supports 2-way or 3-way switching – wired or app-configured.

✅ Time-of-day-based control: Schedules based on sunrise and sunset.

✅ Advanced scenarios: Create custom rules and reactions in the Tuya app for complete smart automation.

ℹ️ A ZigBee gateway is required to operate this device.

▶️ You can find compatible models in our store.

ℹ️ Screens from the Home Assistant ZigBee2MQTT integration

ℹ️ ZigBee Protocol Basics:

ZigBee operates on the well-propagating2.4 GHzfrequency, ideal for indoor environments.

ZigBee uses MESH networking, meaning thateach fully powered ZigBee device (L+N) acts as a signal repeaterfor others.If a distant sensor has no direct link to the ZigBee hub, it can still connect via another fully powered ZigBee devicethat does — up to 3 hops. This provides reliable communication throughout your home.

Upon status change,ZigBee devices connect to the gateway in 0.2 seconds, while WiFi devices need around 5 seconds. ZigBee offers significant advantages in automation performance.

In aWiFinetwork, stability issues typically appear after adding around25 devices❌

AZigBee hubcan easily supportover 50 devices✔️

ZigBee gateways and devices allow forlong-term storage of event and sensor history– like door opening, temperature logs, or motion detection, stored for months.

ZigBee communicationuses very little energy, ensuringlong battery lifefor powered sensors.

ℹ️ Specifications:

• Communication:ZigBee 3.0
• Power supply:90–250 V ~ 50 Hz
• Max. power:LED: 2x 150W | Resistive: 2x 1000W
• Max. current:2x 5A

⚠️This model requires full power (L+N) in the switch box.

ℹ️ Package includes:

• OXT Mini relay module – 2 channels ZigBee TUYA
• Mounting clip
• User manual

Product code: T262
