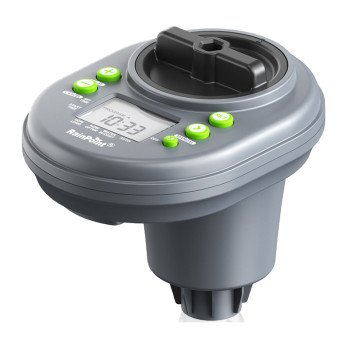

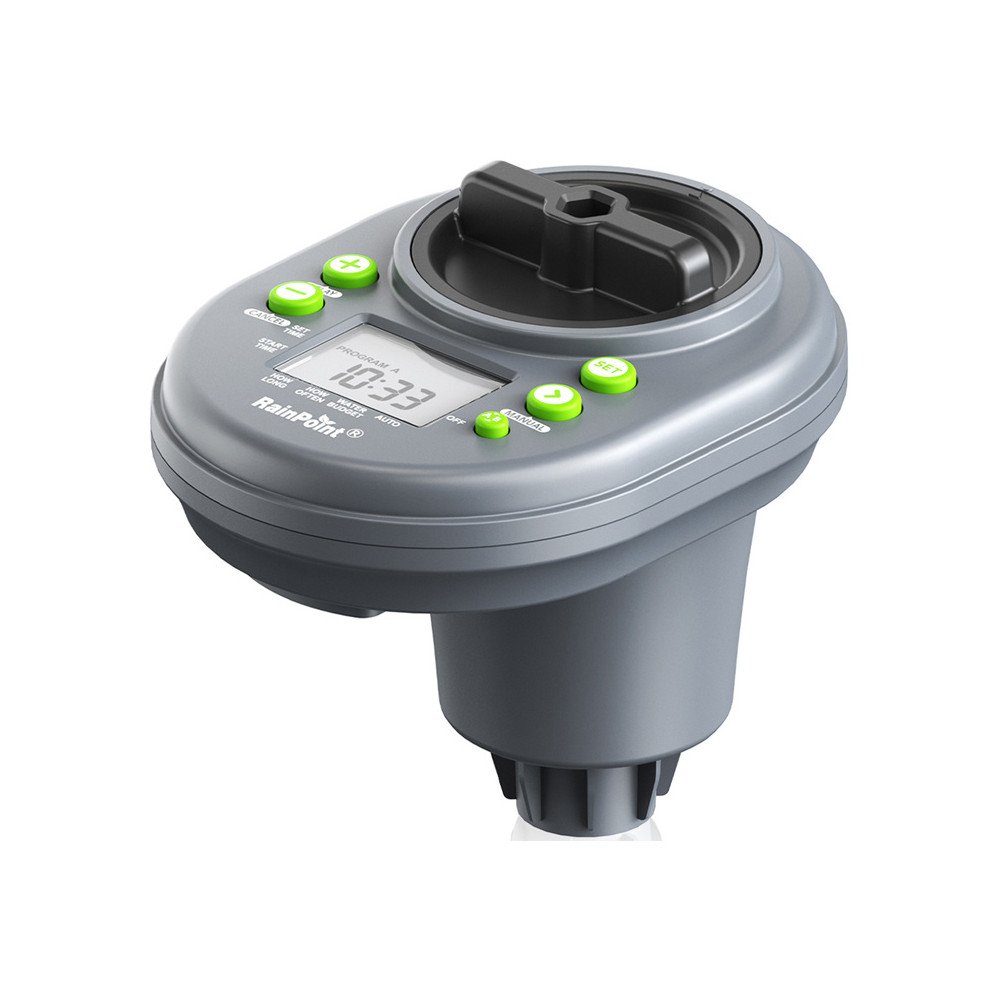

4-zone digital DC irrigation controller

4-Zone Digital DC Irrigation Controller

Control irrigation across 4 independent zones and customize the schedule for each part of your garden. The controller allows you to set a watering time of up to 240 minutes, a frequency ranging from 1 hour to 31 days, and up to 8 starts per day (programs A and B). The IP68 rating allows for installation in a valve box, and battery power (4 × AA) enables operation without a power connection.

Independent control of 4 zones

The controller allows you to manage four irrigation sections, enabling you to tailor watering to different parts of the garden. Each zone can operate according to its own settings, and in the event of simultaneous starts, the system activates them sequentially, ensuring stable operation of the entire system.

Flexible watering schedules

Two independent programs (A and B) are available, which can run separately or simultaneously. Each allows you to set up to 4 start times per day, giving you great flexibility in planning your irrigation. You can also specify a runtime from 0 to 240 minutes and a frequency from 1 hour to 12 hours or from 1 to 31 days.

Adjusting Water Volume to Conditions

The water budget feature allows you to adjust the watering volume from 10% to 200%, making it easy to adapt irrigation intensity to the weather or season. Additionally, the rain delay feature lets you pause watering for 24, 48, or 72 hours without changing the settings.

Compatibility with a rain sensor

The controller allows you to connect an external rain sensor (NC), which automatically pauses watering in case of rainfall. This solution helps reduce water consumption and better adapt the system’s operation to weather conditions.

Designed for harsh conditions

The IP68-rated housing allows for direct installation in a valve box, ensuring resistance to moisture and water contact. The device operates at temperatures ranging from 3°C to 50°C, ensuring reliable performance in various conditions.

Included:

• 4-zone digital irrigation controller
• Allen wrench
• Ground stake
• User manual
