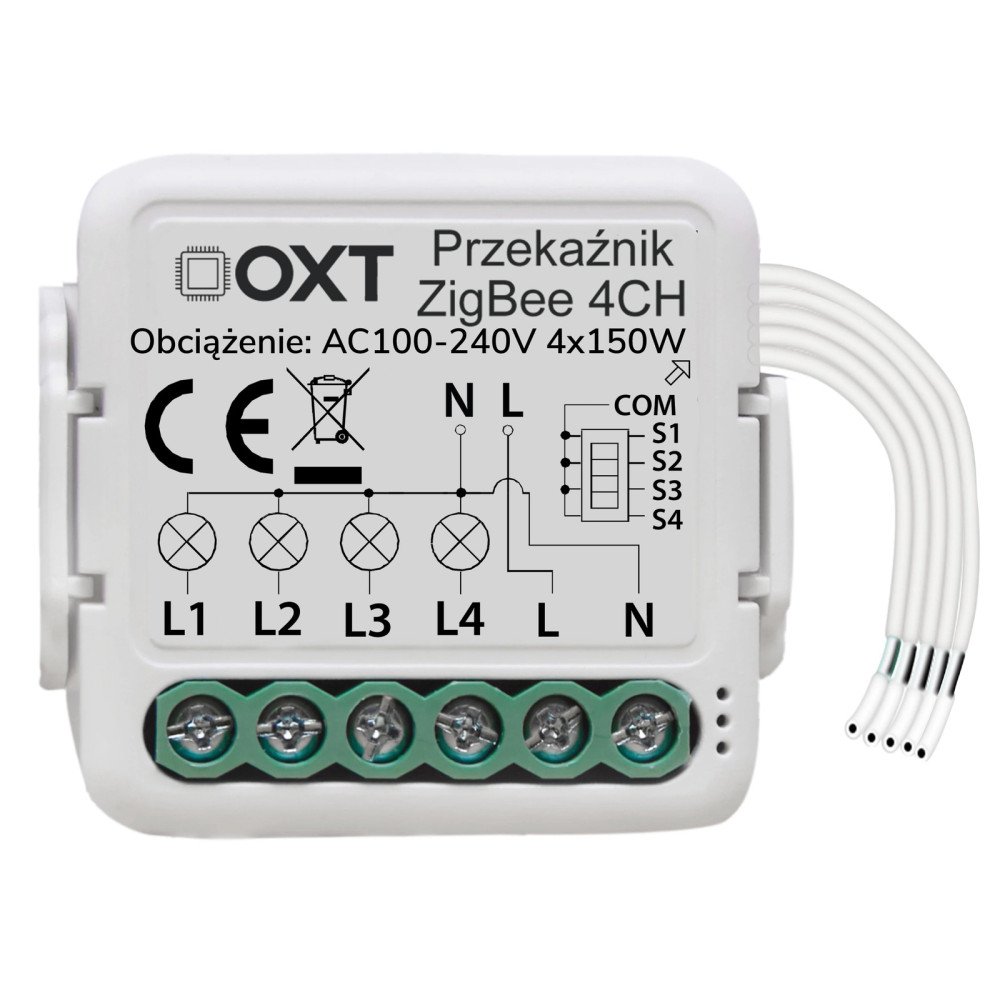

OXT mini relay module 4 ZigBee circuits TUYA

Permitted moduleZigBee designed to turn your traditional switch or socket into a smart device controlled by your smartphone!

Advantages:

• Works with a traditional bistable switch or monostable switch.
• Control electrical devices from any location in the world from your Smartphone.
• Control from the most popular home automation application TUYA (available for free in the App store or Google play)
• Creation intelligent automation depending on e.g. the weather or time, sunrise, sunset, other events in your TUYA ecosystem.
• Time schedules, set the action to specific times.
• Possible cooperation with Amazon Alexa/Google Home depending on the type of ZigBee gateway used.
• Timery, count down how long the relay should be on.
• It fits in the end box behind the breaker
• Can be used with any electrical device within maximum power.
• Possibility to control stair/cross lighting via cable or after setting in the application.
• Schedules- switching on the device/lighting at specific times of the day, e.g. at sunrise or sunset
• Advanced rules and scenarios in the application.

Attention! To operate this module, you need a Zigbee 3.0 TUYA gateway available in our offer:

Bramka ZigBee 3.0 TUYA

Basics of the ZigBee protocol.

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device acts as a relay for other devices. If a remote sensor does not have communication with the ZigBee Gateway, it is sufficient that it has radio communication with another ZigBee device that has communication with the gateway. The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection.
• ZigBee devices and sensors consume very little energy, which gives a long battery life.
• On a WiFi network with 25 devices you will start to experience network issues. You can easily add over 50 devices to the ZigBee hub.
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds when the state changes. WiFi devices take about 5 seconds to connect to the WiFi network after a status change. ZigBee devices have a huge advantage when it comes to automating smart rules.
• The ZigBee gateway and ZigBee devices allow for much broader and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago.

Connection diagram

Specification:

• Input voltage:90-250 V ~ 50 Hz
• Max power: 4x 150W
• Max current: 4x 2.5A
• Protocol:ZigBee 3.0

Attention! This model requires full power in the box.

The set includes:

• OXT mini relay module 4 ZigBee circuits TUYA
• Fixing clip
• User manual

Product code: SWTZ27
