Staircase LED Controller with Motion Sensors

WiFi | TUYA | 5V-24V | Supports up to 32 Steps | PIR | RGBIC | MONOIC

• ✅ Stunning cascading effect (step-by-step lighting)

• ✅ Direct WiFi connectivity – no gateways or hubs required

• ✅ 2 precise PIR motion sensors included

• ✅ Supports up to 32 channels (steps)

▶️ Control and Connectivity

• 2.4 GHz WiFi:The device connects directly to your router. Control your lighting from anywhere in the world.

• TUYA / Smart Life App:Simple configuration of parameters, brightness, and schedules directly on your phone.

• Remote Control:Supports PX series remotes. Ability to assign separate remotes for the top and bottom of the stairs (see related products).

▶️ Comfort and Safety

• Motion Automation:Two PIR sensors (top and bottom) ensure the light turns on exactly when you need it.

• Smooth Effect:The stairs light up harmoniously, following the direction of your movement.

• Night Mode:Option to set a subtle ambient backlight after dark.

▶️ Construction

• Universal Power Supply:Compatible with 5/12/24V DC LED strips.

• Convenient Mounting:Clearly marked inputs for each of the 32 steps make installation easy.

ℹ️ Works with any 2.4GHz WiFi router

ℹ️ Why choose the WiFi version?

• Cost-Effective:No need to purchase an additional ZigBee gateway.

• Simplicity:Pairing the device is fast and intuitive, just like other smart home gadgets.

• Range:All you need is for your staircase to be within range of your home WiFi network.

▶️ Compatible with PX Series Wall Remotes

Ability to assign separate remotes for the top and bottom of the stairs - remotes can be found in related products.

ℹ️ Specification:

• App:YOURS / Smart Life

• Communication:WiFi 2.4 GHz

• Input Voltage:DC 5-24V

• Supported Strips:RGBIC | MONOIC

• Number of Channels:32 (adjustable quantity)

• Max Load:350W (Total)

• Sensors Included:2x PIR (flush or surface mount)

• Controller Dimensions:approx. 185 x 85 x 25 mm

ℹ️ In the Box:

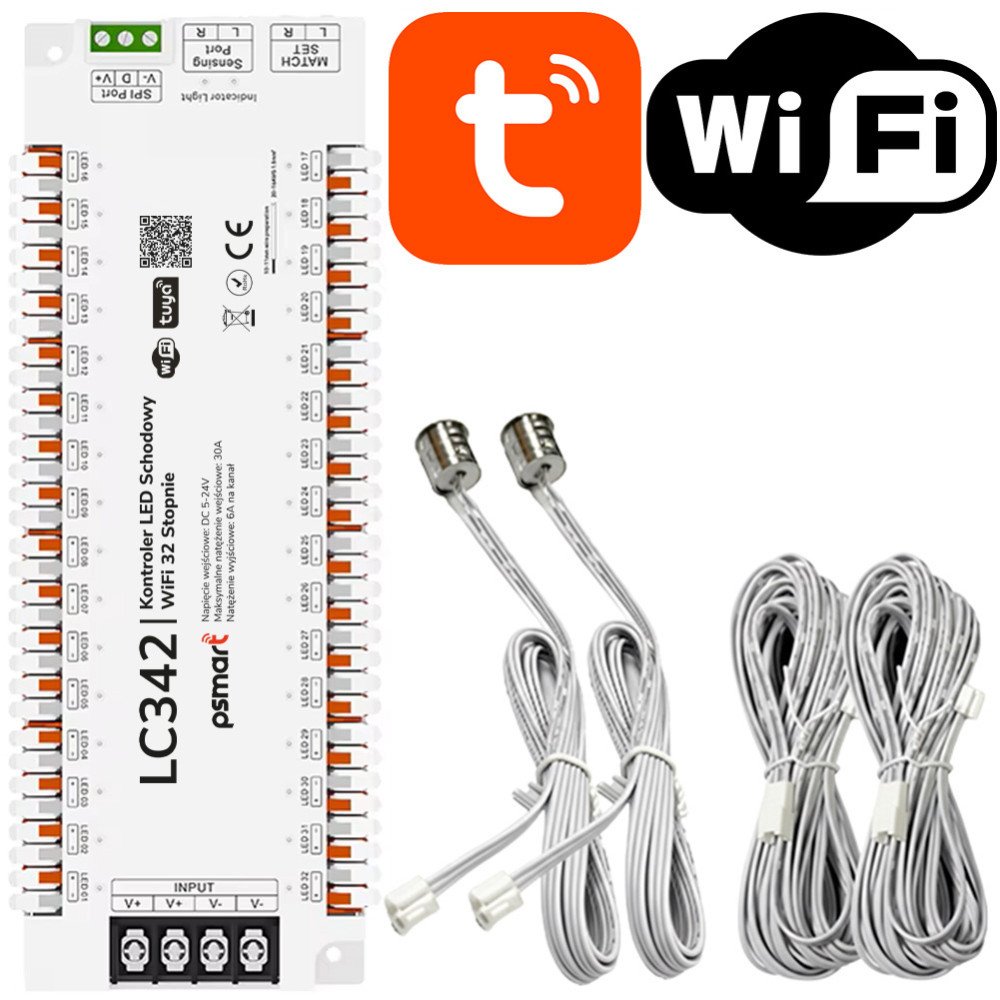

• 32-Channel WiFi Staircase Controller
• 2x PIR Motion Sensors
• Connection cables
• User Manual

Product Code: LC342
