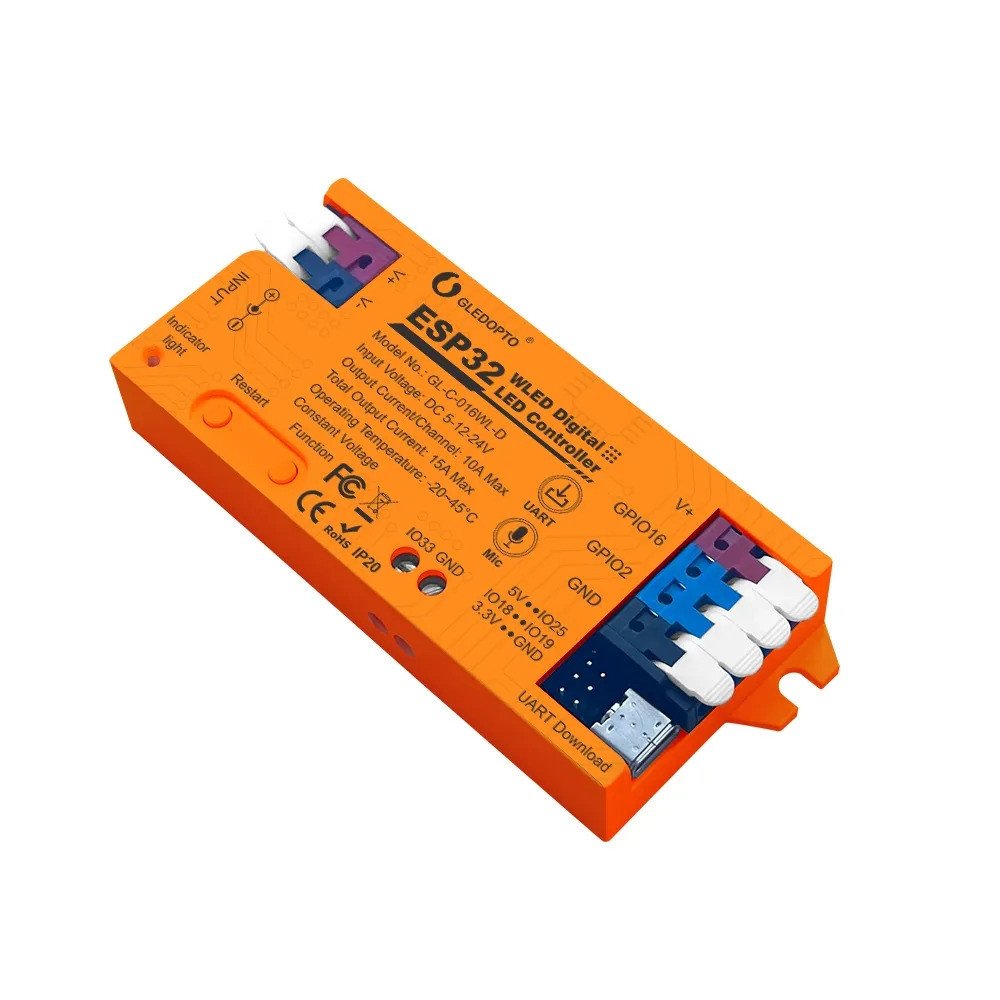

Gledopto GL-C-016WL-D WLED RGBIC light strip controller, with microphone and DIY mode (USB-C port)

The Gledopto GL-C-016WL-D is an upgraded version of the GL-C-015WL-D IC LED strip controller. It comes with an integrated ESP32 chip and supports IC LED strips powered by 5V-24V DC. The new model retains a maximum output of 15A. With its built-in microphone andUSB Type-C port,users can modify the firmware easily.

This controller supports music synchronization, voice control, and app-based management, allowing for extensive customization of RGB IC lighting systems. It is ideal for DIY projects and stair lighting, offering excellent performance with local remote control and wireless Wi-Fi smart control.

Brand Introduction

Gledopto is a well-known smart home brand recognized for its high-quality smart lighting solutions, including premium smart LED bulbs and LED lamps.

Their WLED series offers broad, seamless integration with various open-source systems, such as Home Assistant, and supports local LAN control. Gledopto products are known for their high-quality materials, reliability, and excellent compatibility with different smart home ecosystems.

Key Features

• ESP32-based WLED LED strip controller
• Music synchronizationfor dynamic lighting effects
• Wireless controlvia app, voice commands, and remote control
• UART downloadfor easy programming and customization
• RGB IC supportfor advanced lighting customization
• 5-24V DC input support, with up to360W output power

Smart Home Protocols Integrations

This device supports app-based smart home integration and wireless control, making it compatible with various smart lighting ecosystems. It can be controlled via voice commands or a dedicated app, ensuring seamless connectivity.

Technical Specifications

• Type:IC LED Controller
• Max Power Output:360W
• Input Voltage:5-24V DC
• Control Mode:App, Smart Voice Control, WLED Remote Control
• Output Current:15A (total max)
• Product Weight:0.0572 kg
• Dimensions:10.8 x 4.5 x 1.8 cm
• Certifications:ROHS, CE
