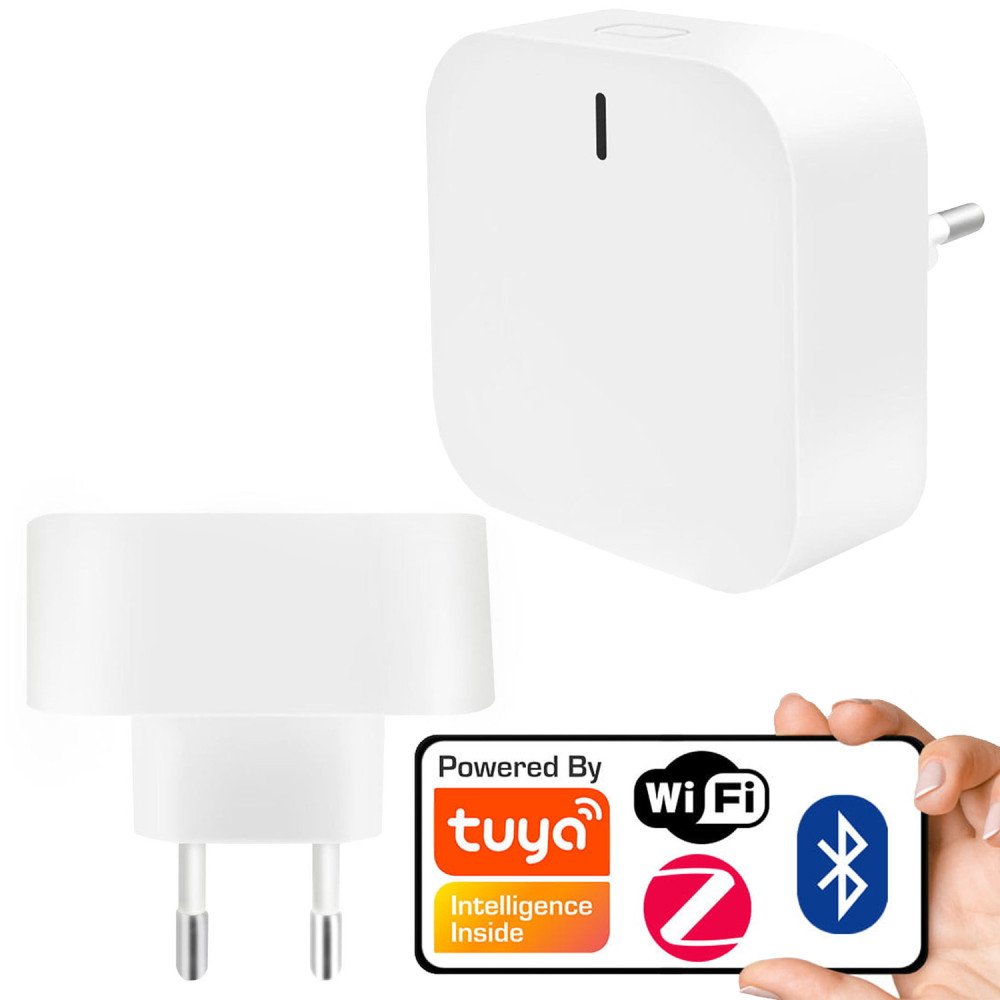

Mini ZigBee Gateway | 230V plug | Bluetooth | ZigBee | WiFi | TUYA

▶️ Possibly the most convenient form of ZigBee control unit for Smart Home systems

Just insert it into the socket and connect it to your smartphone. ✔️

• ✅ WiFi connectivity enables easy integration with the Tuya ecosystem

• ✅ ZigBee provides a stable, fast and energy-saving connection to up to 50 devices.

• ✅ Bluetooth Mesh will increase the range and functionality of BT devices

✅ Multifunctional control unit

The compact gateway combines ZigBee, Bluetooth and WiFi in one contact plug - allows you to control the alarm, lighting and other smart home devices from the Tuya application

▶️ Connectivity and compatibility

• ✅WiFi Connectivity:no need to connect a LAN cable - the gateway connects wirelessly to the router

• ✅Multiple Protocols:ZigBee 3.0 and Bluetooth SIG Mesh support in one device

• ✅Integration with the Tuya system: Connecting ZigBee and Bluetooth devices in one automation network

• ✅Power supply:compatibility with any standard 230V socket

▶️ Functionality and service

• ✅Control from the application: TUYA Smart / Smart Life – full control from anywhere in the world

• ✅Voice control:cooperation with Amazon Alexa and Google Assistant for compatible devices

• ✅Notifications:information about events from ZigBee and Bluetooth devices directly in the application

• ✅ Compact size: small dimensions allow for convenient placement anywhere

▶️ Device management

• ✅Multiple device support: Up to 50 ZigBee and 25 Bluetooth devices simultaneously

• ✅ZigBee alarm support: arming and disarming sensors throughout the ZigBee network

ℹ️ Description of elements:

1. WiFi LED (green)

2. Button

3. ZigBee LED (blue)

ℹ️ Basics of the ZigBee protocol:

ZigBee works on a frequency2.4 GHzand works in topologyMesh– each powered device with L+N amplifies the signal for others. If the sensor is far from the gateway, it only needs to be connected to another powered ZigBee device that has a range to the switchboard (up to 3 hops).

▶️ ZigBee Response –0,2 s| WiFi response –5 s

▶️ZigBee:stable service50 devices|WiFi:problems with25 devices

▶️ ZigBee allows you to save the history of events (e.g. temperature, movement, door opening) even months ago.

▶️ Low energy consumption = longer battery life of devices

ℹ️ Specification:

• App:TUYA Smart / Smart Life
• Communication:WiFi 2.4 GHz, ZigBee 3.0, Bluetooth SIG Mesh
• Power supply:95–250 V AC, 50–60 Hz
• Plug type:VDE
• Operating humidity:5% – 90% RH (non-condensing)
• Working temperature:-10°C do 50°C
• WiFi range:~100 m (open space)
• ZigBee Range:~160 m (open space)
• Libra:70 g

Dimensions:57 x 57 x 22 mm

ℹ️ The set includes:

• Mini MultiBramka
• User manual

ℹ️ Product code: T712
