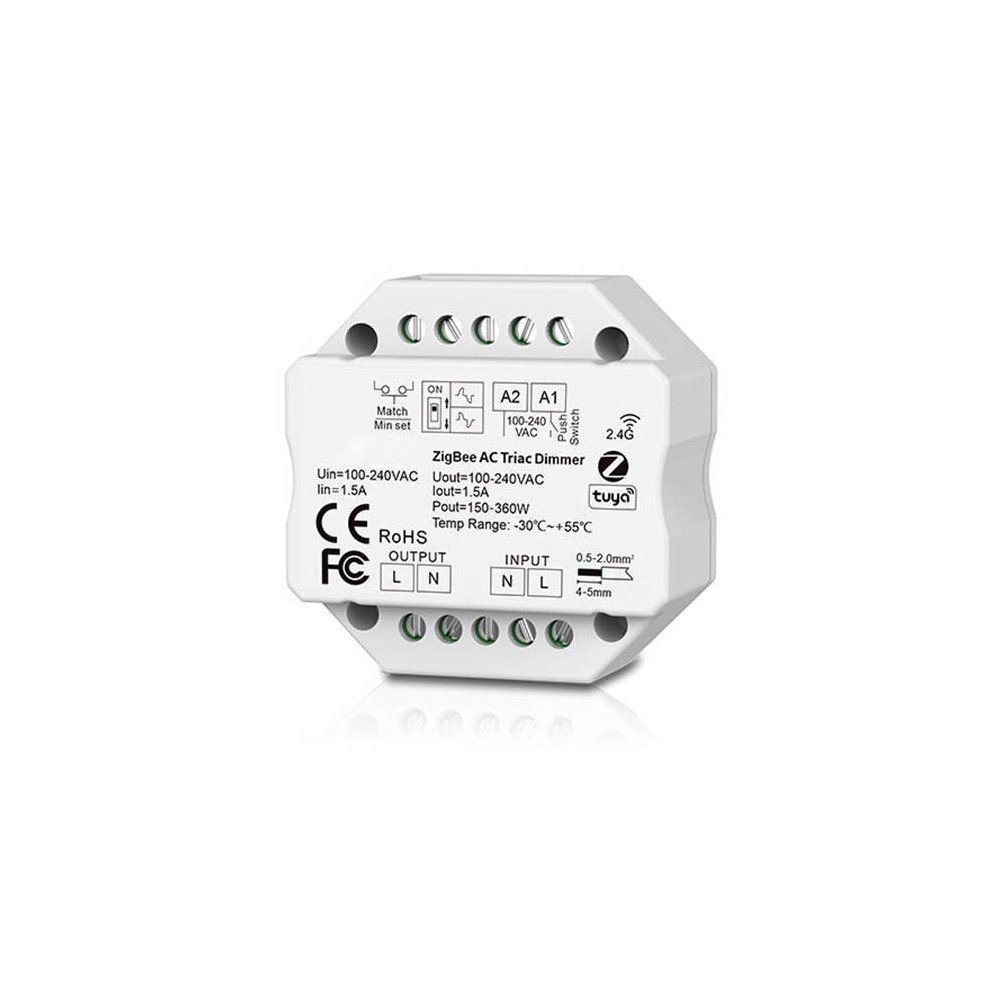

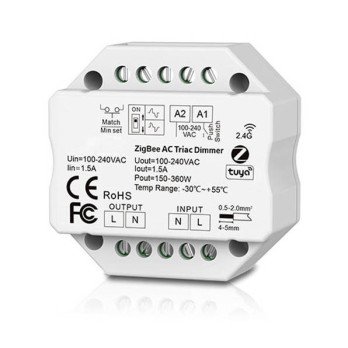

In-wall single-channel dimmer ZigBee 3.0 + RF TUYA SD SERIES

A single-channel ZigBee flush-mount dimmer designed to turn your traditional switch into a smart device controlled by a smartphone or remote control!

Main advantages:

• The latest ZigBee 3.0 protocol
• Works with a monostable (bell) button
• Operation via the TUYA or Smart Life app
• Control electrical devices from any location in the world from your Smartphone.
• Full integration with the Tuya Smart system
• Voice control via Google Home and Amazon Alexa
• It fits in the end box behind the breaker
• Can be used in a staircase system
• Possibility to create and save your own lighting scene, adjusting: dimming level, flashing and flashing speed
• Schedules - switching on the device/lighting at specific times of the day, e.g. at sunrise or sunset
• Timer - turning on the device/lighting for a specific time
• Works with monostable and bistable switches

Control with:

• TUYA Smart application on your smartphone
• Dedicated RF remote controls from the SD Series (you will find them in the proposed sets or on our other offers (Look for the SD Series designation - in the name)
• Traditional manual switch

Attention! To operate this module, you need a Zigbee 3.0 TUYA gateway available in our offer

Intuitive and convenient user interface

The application enables:

• Turning the light on and off
• Setting the light intensity level
• Setting the light control range
• Timer setting
• Setting operation schedules

Basics of the Zigbee protocol:

• The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
• ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
• Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
• On a WiFi network with 25 devices you will start to experience network issues. You can easily add over 50 devices to the ZigBee hub
• The ZigBee gateway and ZigBee devices allow for much broader and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
• ZigBee communication consumes very little energy, which gives a long battery life.

Connection diagram

Specification:

• Input voltage: 220-240V ~ 50Hz
• Max Power: 150W
• Protokół: ZigBee 3.0
• Frequency: 2.400 GHz-2.484 GHz, IEEE 802.15.4
• Application name: TUYA Smart / Smart Life
• Working temperature: -10℃~40℃
• Size: 46mm x 46mm x 18mm

Requires full power supply in the box - L and N

The set includes:

• 1-channel flush dimmer ZigBee 3.0 + RF 2.4 GHz
• Mounting bracket
• User manual
• Sales document

Kod produktu: T903
