- Transducer: Uncooled VOx microbolometer
- Matrix size: 384 x 288 px
- Lens: 50 mm
- Viewing angle: 7.5°
- Resolution: 3072 x 1728, 1920 x 1080 - 1080p
- Transducer: 1/1.8"
- Viewing angle: 61° ... 2.3°
- Optical zoom: x 44; IR illuminator range: 300 m
- RS-485 interface; Memory card slot: Supports Micro SD cards up to 256GB
- Image compression method: S+265
- Alarm inputs/outputs: 8 / 2; Audio: Audio input, Support two-way audio
- Rotation speed (manual control): 0.1°/s ... 160°/s (horizontal) 0.1°/s ... 120°/s (vertical)
- Intelligent image analysis: people counting

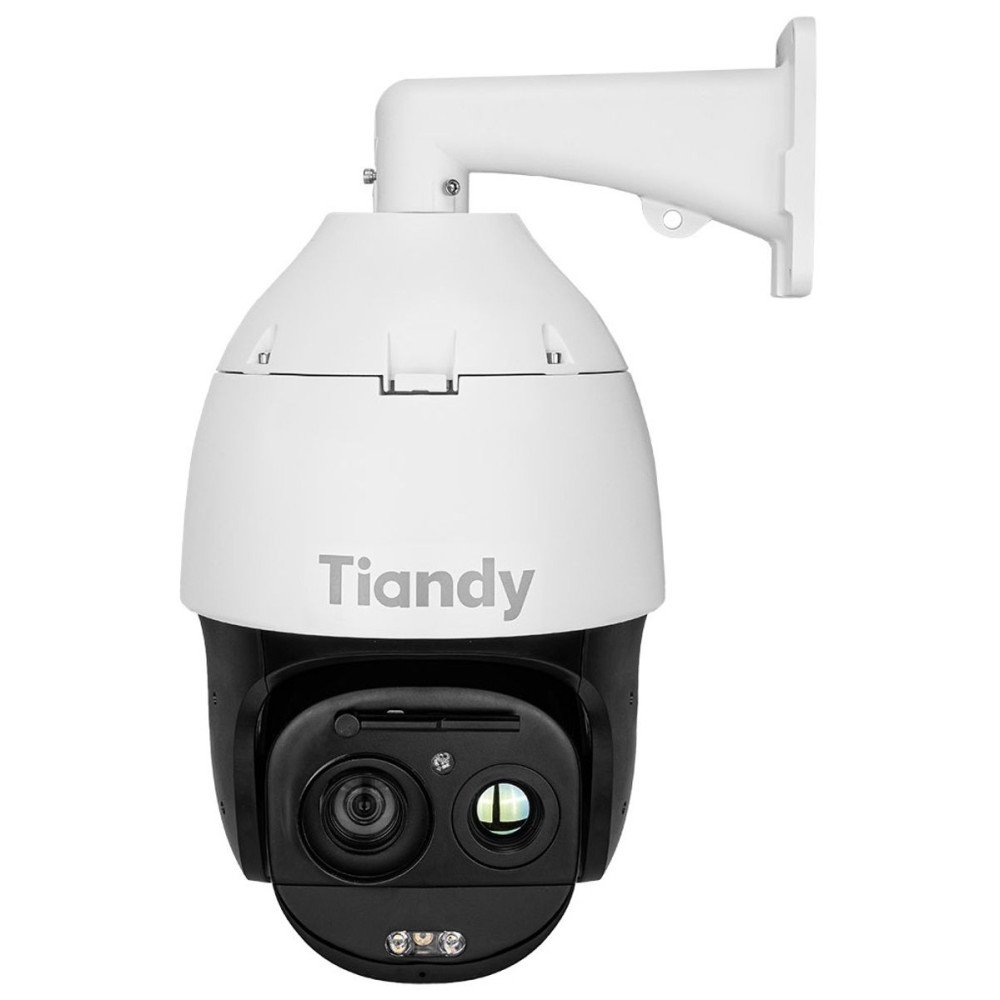

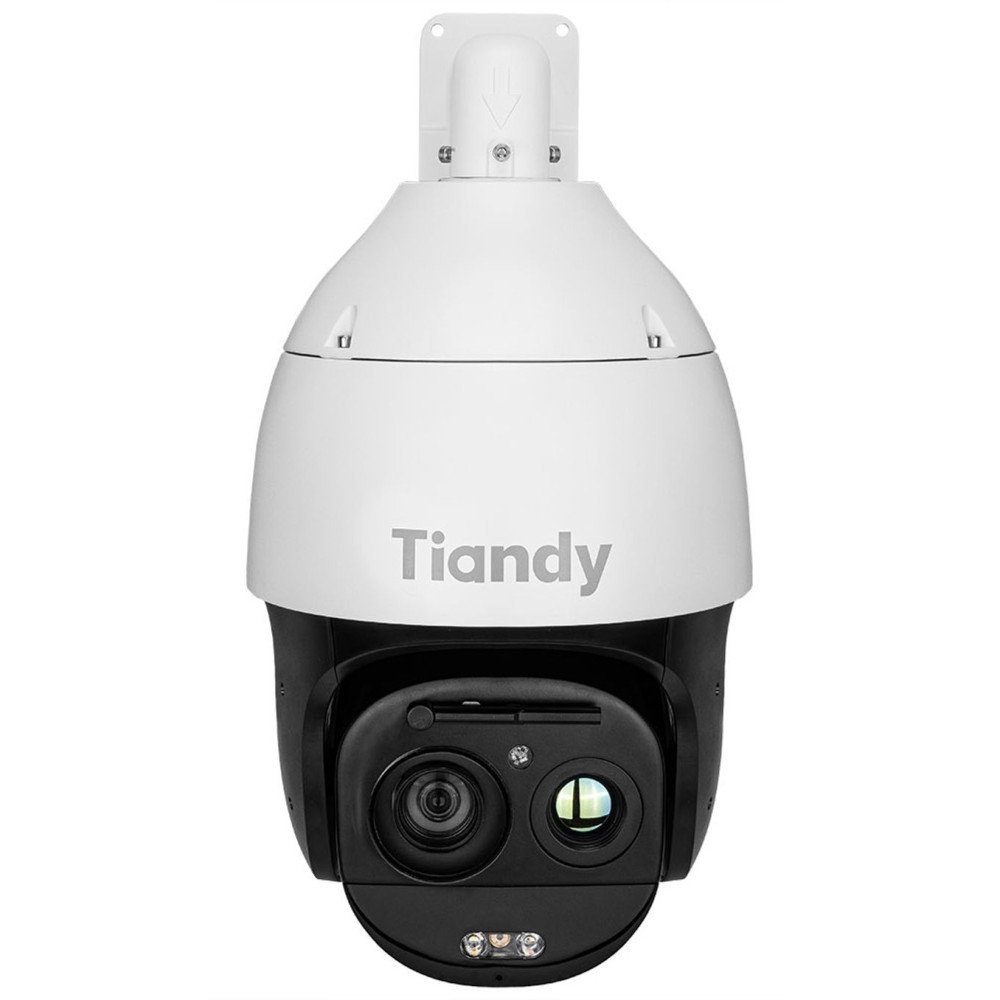

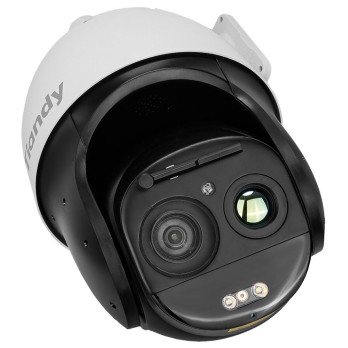

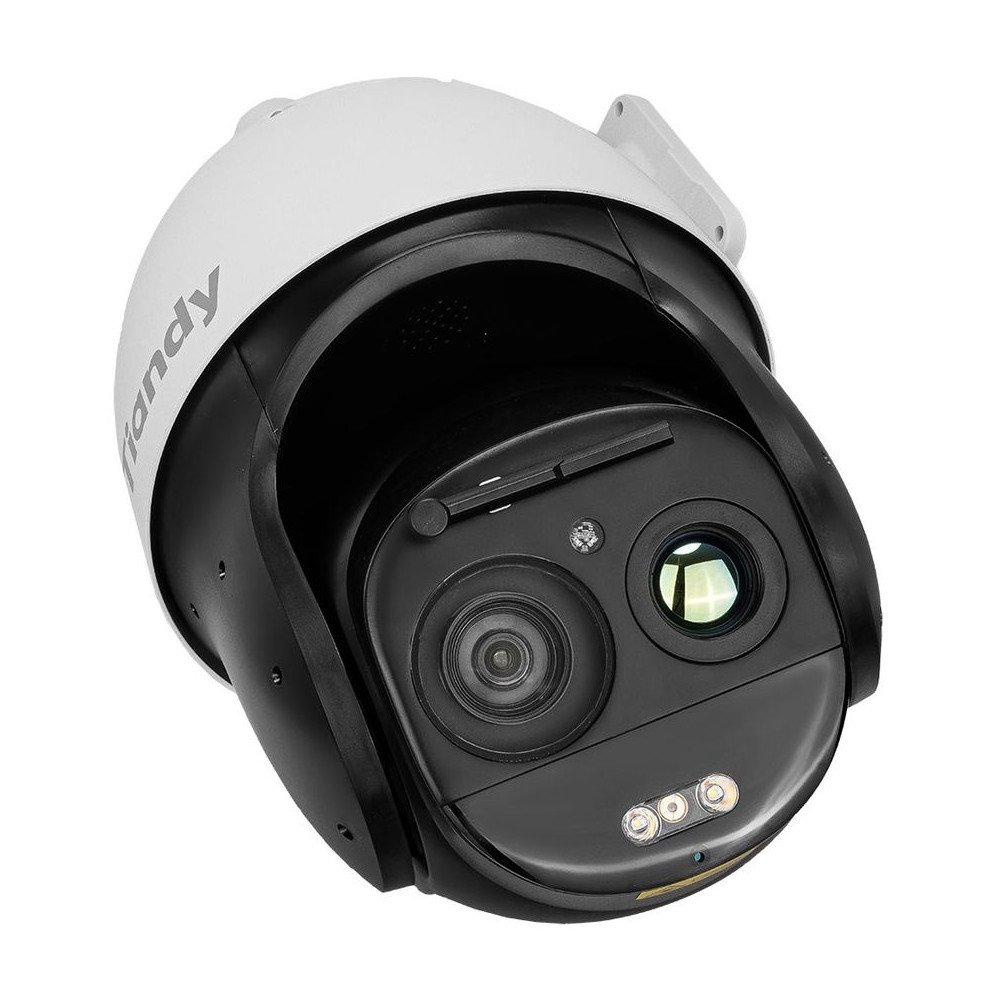

HYBRID THERMAL IMAGE IP CAMERA TC-H358M SPEC:44X/IT/A - 5 Mpx 6 ... 264 mm TIANDY
€97,153.17
Tax included
- Transducer: Uncooled VOx microbolometer
- Matrix size: 384 x 288 px
- Lens: 50 mm
- Viewing angle: 7.5°
- Resolution: 3072 x 1728, 1920 x 1080 - 1080p
- Transducer: 1/1.8"
- Viewing angle: 61° ... 2.3°
- Optical zoom: x 44; IR illuminator range: 300 m
- RS-485 interface; Memory card slot: Supports Micro SD cards up to 256GB
- Image compression method: S+265
- Alarm inputs/outputs: 8 / 2; Audio: Audio input, Support two-way audio
- Rotation speed (manual control): 0.1°/s ... 160°/s (horizontal) 0.1°/s ... 120°/s (vertical)
- Intelligent image analysis: people counting
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The TC-H358M SPEC:44X/IT/A dual thermal imaging camera is a modern solution that allows you to detect the presence of people, animals and vehicles regardless of the prevailing visual conditions.
The device is equipped with a sensitive VOx microbolometer, allowing you to observe objects in fog, smoke and in the absence of lighting.
THERMAL IMAGE CAMERA:
| Converter: | Uncooled VOx microbolometer |
| Matrix size: | 384 x 288 px |
| Thermal sensitivity (NETD): | 40 mK |
| Spectral range: | 8 µm ... 14 µm |
| Color palettes: | 18 |
| Lens: | 50 mm |
| Viewing Angle: | 7.5 ° |
| Temperature measurement: | NO |
VISUAL CAMERA:
| Resolution: | 3072 x 1728 - 5 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 720 - 720p |
| Converter: | 1/1.8 " Progressive Scan CMOS |
| Matrix size: | 5 Mpx |
| Lens: | 6 ... 264 mm |
| Viewing Angle: | 61 ° ... 2.3 ° |
| Optical zoom: | x 44 |
| Digital zoom: | x 16 |
| IR illuminator range: | 300 m |
General data:
| Standard: | IP |
| Video output: | NO |
| Interface RS-485: | NO |

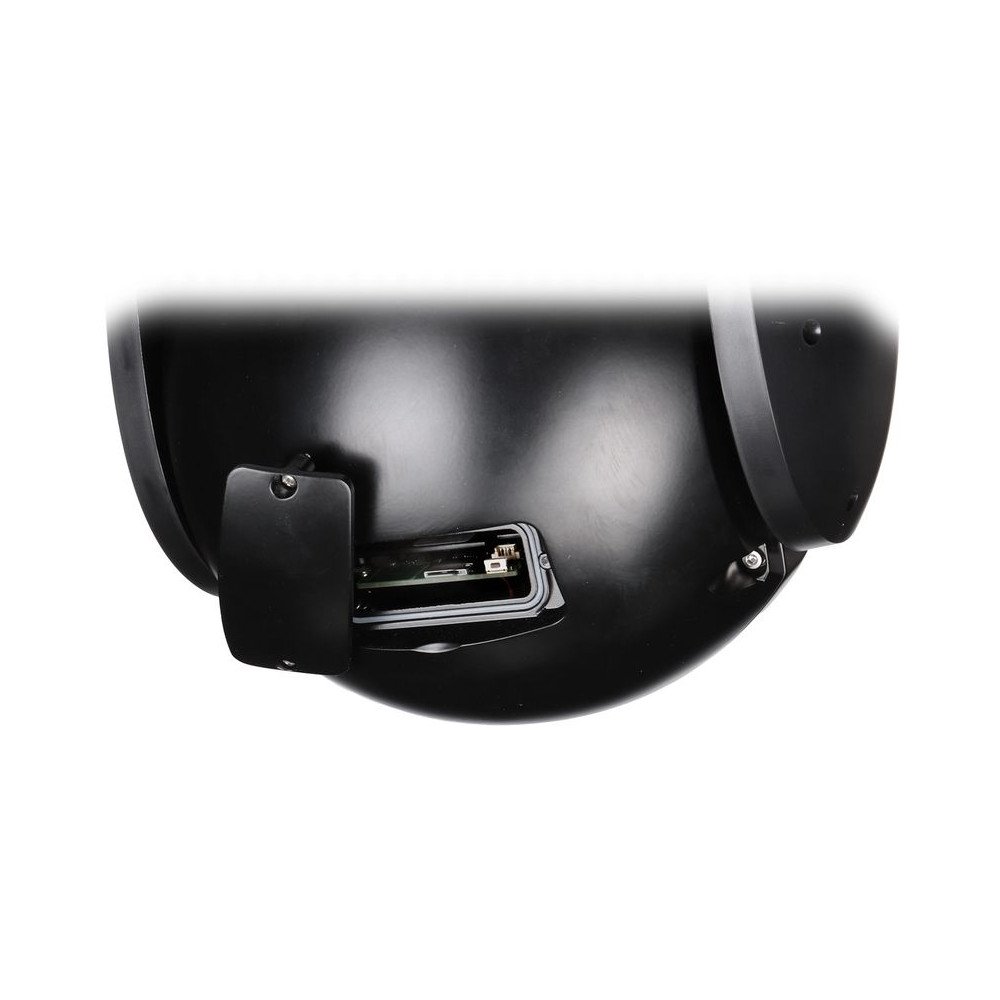

| Memory card slot: | Micro SD card support up to 256GB |
| Image compression method: | S+265 / H.265 / H.264 |
| Alarm inputs/outputs: | 8 / 2 |
| Audio: |
|
| Main stream transmission speed: | 25 fps @ 384 x 288 px - Thermal camera 25 kl/s @ 5 Mpx 50 kl/s @ 3.7 Mpx |
| Interface: | 2 x 100/1000 Base-T (RJ-45) |
| WEB Server: | Built-in |
| Max. number of online users: | 7 |
| ONVIF: | NO |
| Mobile phone access: | Port: 3000 or cloud access (P2P)
|
| Access from PC: | Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express |
| Default IP address: | DHCP the 192.168.1.2 |
| Default administrator login/password: | admin / - An administrator password must be set at first startup |
| Web access ports: | 80, 443, 3000, 3001, 3002, 23002 |
| Access port via mobile application: | 3000, 3001 |
| Access ports via PC application: | 3000, 3001 |
| Port ONVIF: | 80 |
| Rotational speed with presets: |
|
| Rotational speed (manual control): |
|
| Horizontal rotation range: | 360° - continuous |
| Vertical rotation range: | -21 ° ... 90 ° |
| Number of presets: | 500 |
| Horizontal Scanning: | NO |
| Set traffic routes: | 16 |
| Intelligent face analysis: |
|
| Selected features: |
|

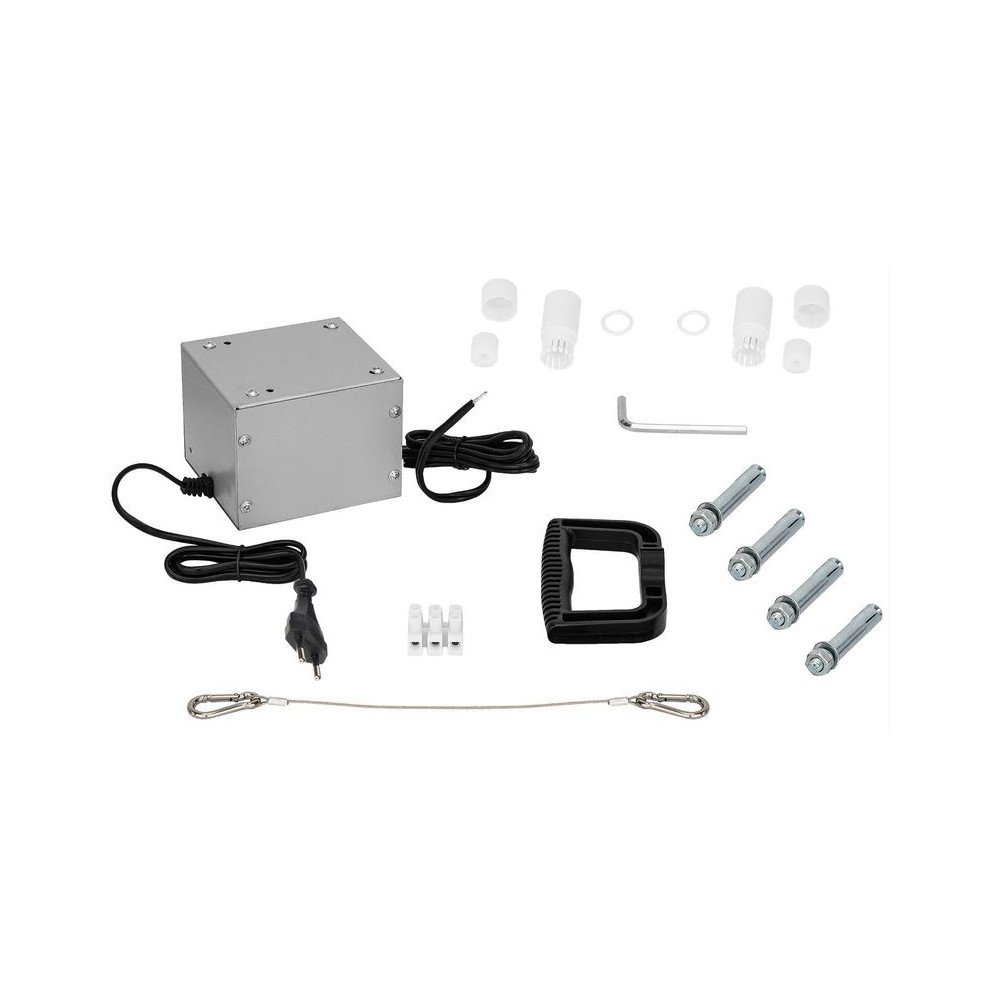

| Power supply: | 24 V AC (power supply included) |
| Power consumption: | ≤ 67 W |
| Case: | Speed Dome |
| Color: | White + Black |
| Tightness class: | IP66 |
| Operating temperature: | -40 °C ... 70 °C |
| Libra: | 12.8 kg |

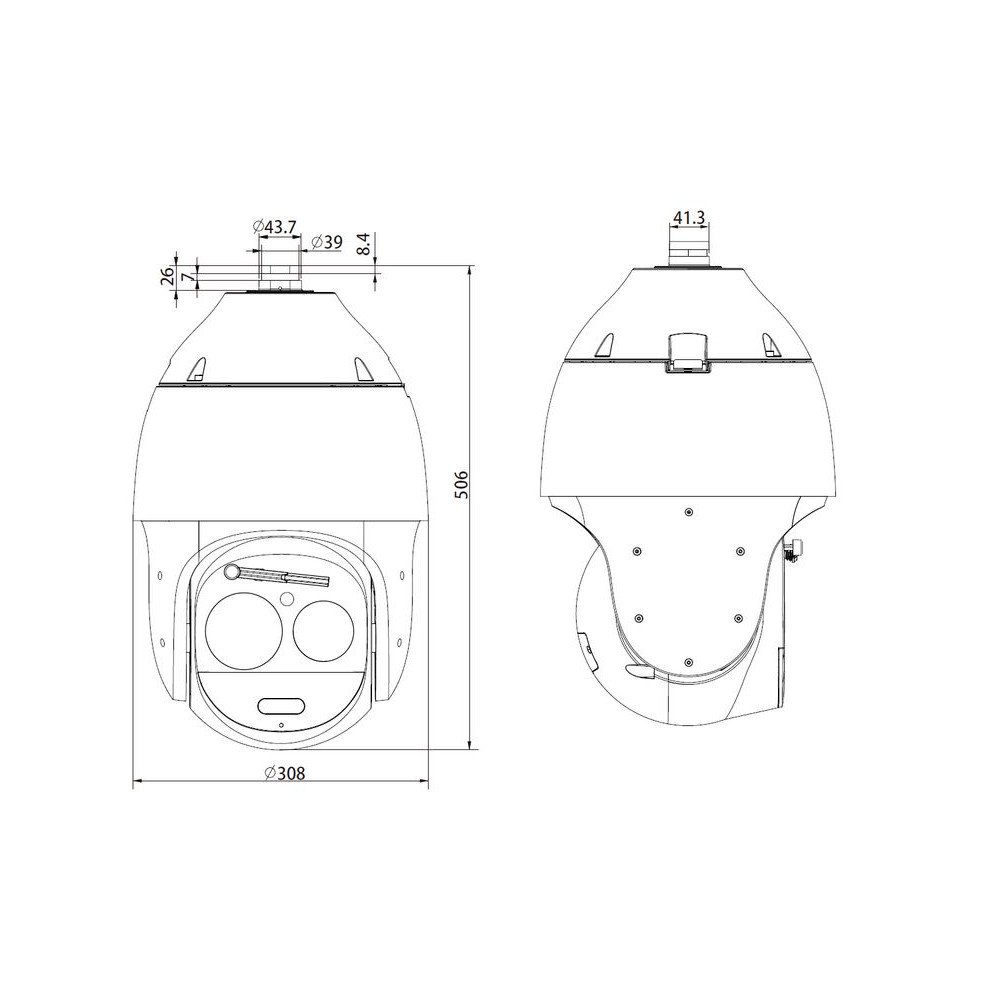

| Dimensions: | Ø 308 x 506 mm (without handle) |
| Supported languages: | Polish, English, Arabic, French, Hebrew, Spanish, Dutch, Korean, Persian, Russian, Thai, Turkish, Vietnamese, Italian |
| Manufacturer / Brand: | TIANDY |
| Guarantee: | 3 lata |
NS34340
1 Item
Data sheet
- Protocol
- ARP
BLE
CIP
DHCP
GRE
LIN
ONVIF
RS-485 - Voltage
- 24V
- IP Class
- IP66
- Image compression method
- H.264
H.265
