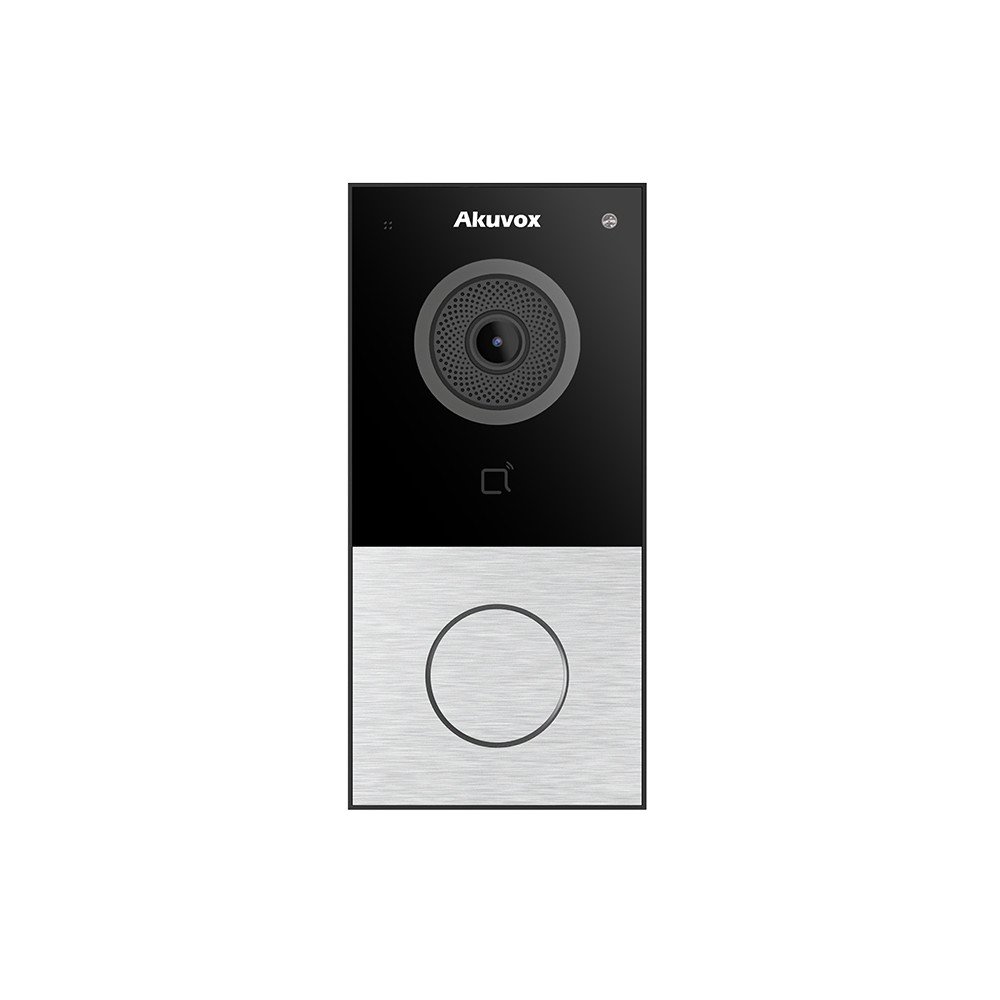

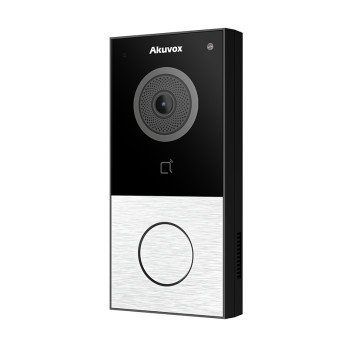

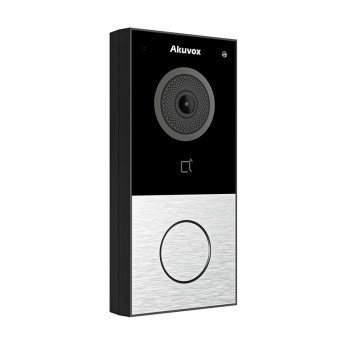

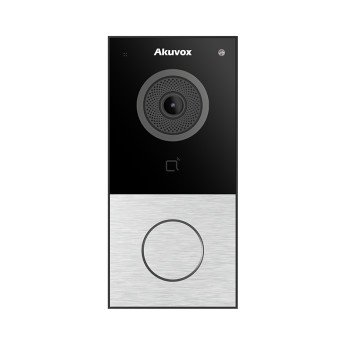

Akuvox E12S-2 Single-family, surface-mounted, 2-wire outdoor panel

Main parameters:

• Operating system: Linux
• Camera resolution: 2 Mpix (123° / 69°)
• Display: None
• Opening: ID Keychain / PIN Code / App / NFC / BLE
• Power supply: PLC bus
• Communication: TCP/IP / SIP / ONVIF / HTTP
• Relays: 1
• Degree of protection: IP65
• Application: Smart Plus
• Dimensions: 146 × 70 × 23 [mm]

Easy modernization of analog intercoms

The system allows direct use of existing two-wire cables from the analog installation. This eliminates the need to lay new, often expensive and time-consuming twisted pair cabling.

Modern Mobile Access

This stylish intercom offers smartphone-based access using Bluetooth, mobile app and NFC, in addition to traditional RFID cards. With Bluetooth authentication, users simply wave their smartphone to gain access.

Remote Door Management

Once connected to the Akuvox SmartPlus cloud service, residents can remotely communicate with guests, grant door access, and monitor front-door activity using the SmartPlus app on their smartphones, from anywhere, anytime.

Award-winning Modern Design

Awarded the Germany Red Dot Design Award, the Germany iF Design Award and the Japan Good Design Award, this stylish and compact design perfectly complements contemporary architectural spaces.

Designed for Outdoor Use

With an IP65 rating for high UV resistance and a wide temperature range from -40°C to +56°C, the E12S-2 is built to withstand a variety of outdoor conditions such as rain, heat, snow, dust and dirt.
