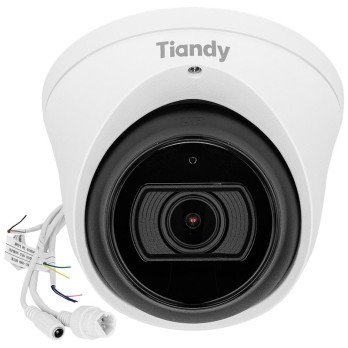

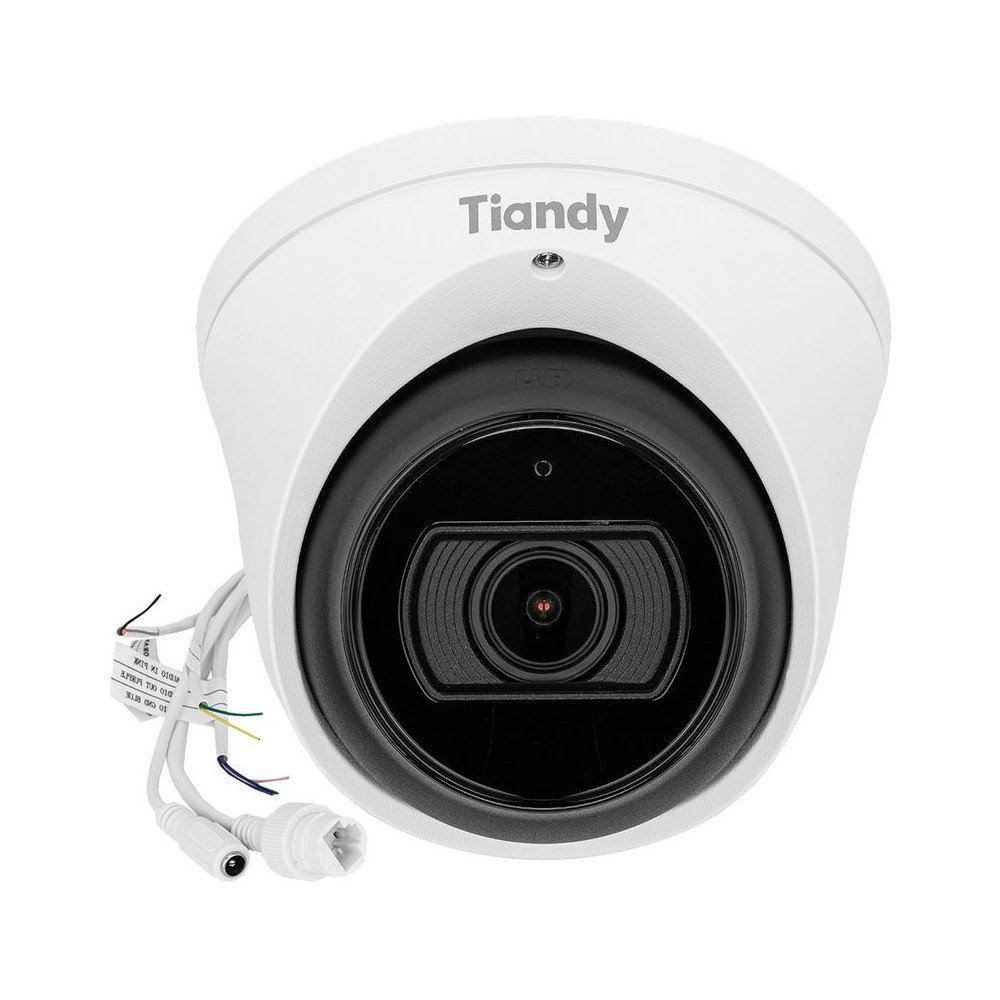

KAMERA IP TC-C38SS SPEC:I5/A/E/Y/M/H/2.7-13.5MM/V4.0 - 8 Mpx 2.7 - MOTOZOOM TIANDY

KAMERA IP TC-C38SS SPEC:I5/A/E/Y/M/H/2.7-13.5MM/V4.0 - 8 Mpx 2.7 - MOTOZOOM TIANDY

€3,091.11
Tax included
  • Resolution: 3840 x 2160, 3072 x 2048, 2560 x 1440, 1920 x 1080; Transducer: 1/2.7"
  • Lens: ... 13.5 mm
  • Viewing angle: 106° ... 31°
  • IR illuminator range: 50 m
  • Image compression method: S+265
  • Alarm inputs/outputs: 2 / 1; Audio: Built-in microphone
  • Memory card slot: Supports Micro SD cards up to 512GB
  • Power supply: PoE (802.3af), 12 V DC
Quantity
Add to Wishlist
Add to Compare

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Camera compatible with ViDiLine products!

IP camera with efficient H.265 / H.264 image compression algorithm ensuring clean and smoother image transmission in a maximum resolution of 8 MPx

The used motor zoom lens with a focal length of 2.7 ... 13.5 mm allows for remote adjustment of the viewing angle

The range of the illuminator provided by the manufacturer depends on the environmental conditions (air transparency, surroundings, wall color, i.e. the so-called scene reflectance)

PoE power supply option in accordance with the 802.3af standard makes the device even more universal and easier to install

Standard: IP
Resolution: 3840 x 2160 - 8 Mpx ,
3072 x 2048 - 6 Mpx ,
2560 x 1440 - 3.7 Mpx ,
2304 x 1296 - 3 Mpx ,
1920 x 1080 - 1080p ,
1280 x 720 - 720p
Converter: 1/2.7 " Progressive Scan CMOS

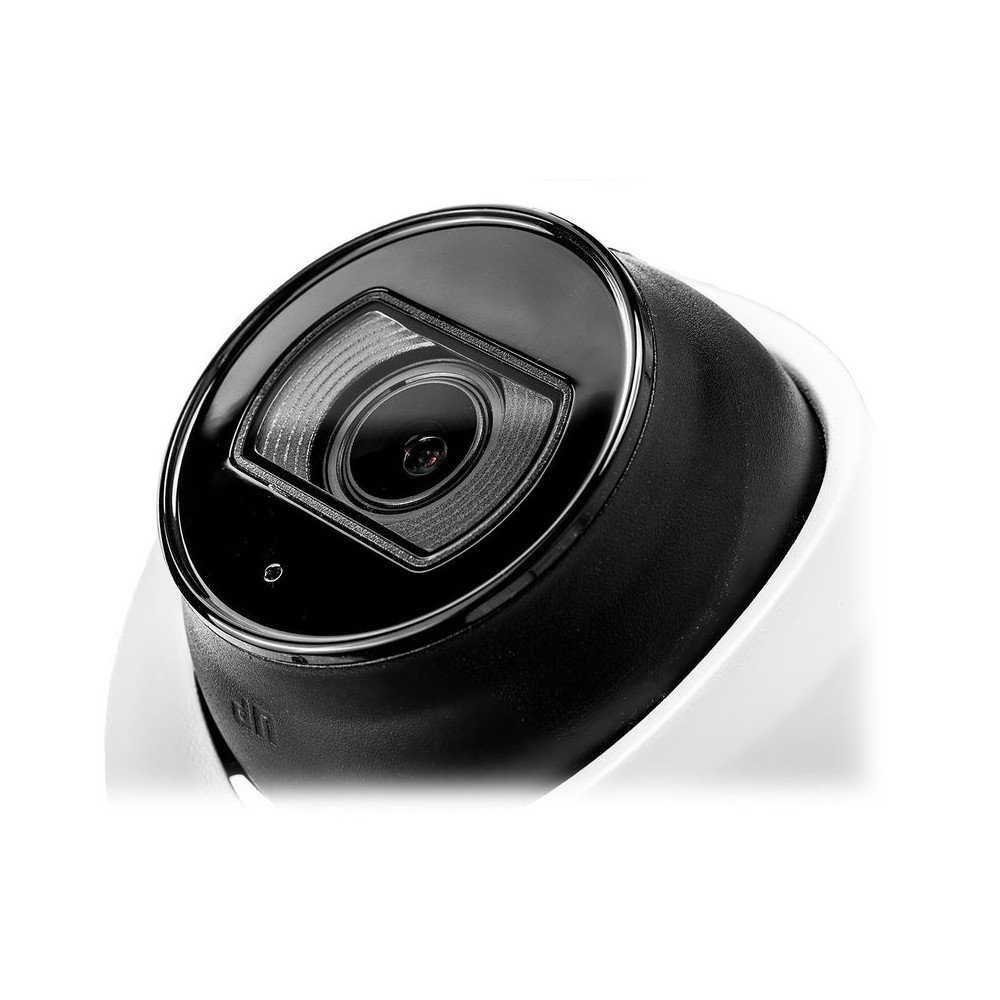

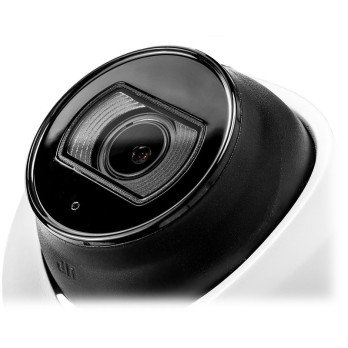

Lens: 2.7 ... 13.5 mm - Motozoom
Viewing Angle: 106 ° ... 31 °
IR illuminator range: 50 m
Image compression method: S+265 / H.265 / H.264
Main stream transmission speed: 25 kl/s @ 8 Mpx
Interface: 10/100 Base-T (RJ-45)
Alarm inputs/outputs: 2 / 1
Audio:
  • Audio input
  • Audio output
  • Built-in microphone
  • Audio transmission over the network
  • AAC compliant
WEB Server: Built-in
Max. number of online users: 2
ONVIF:

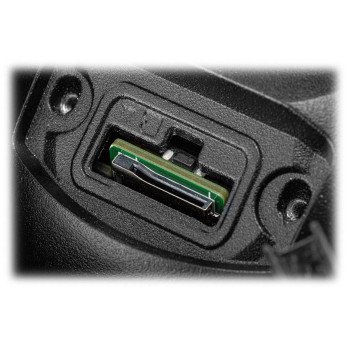

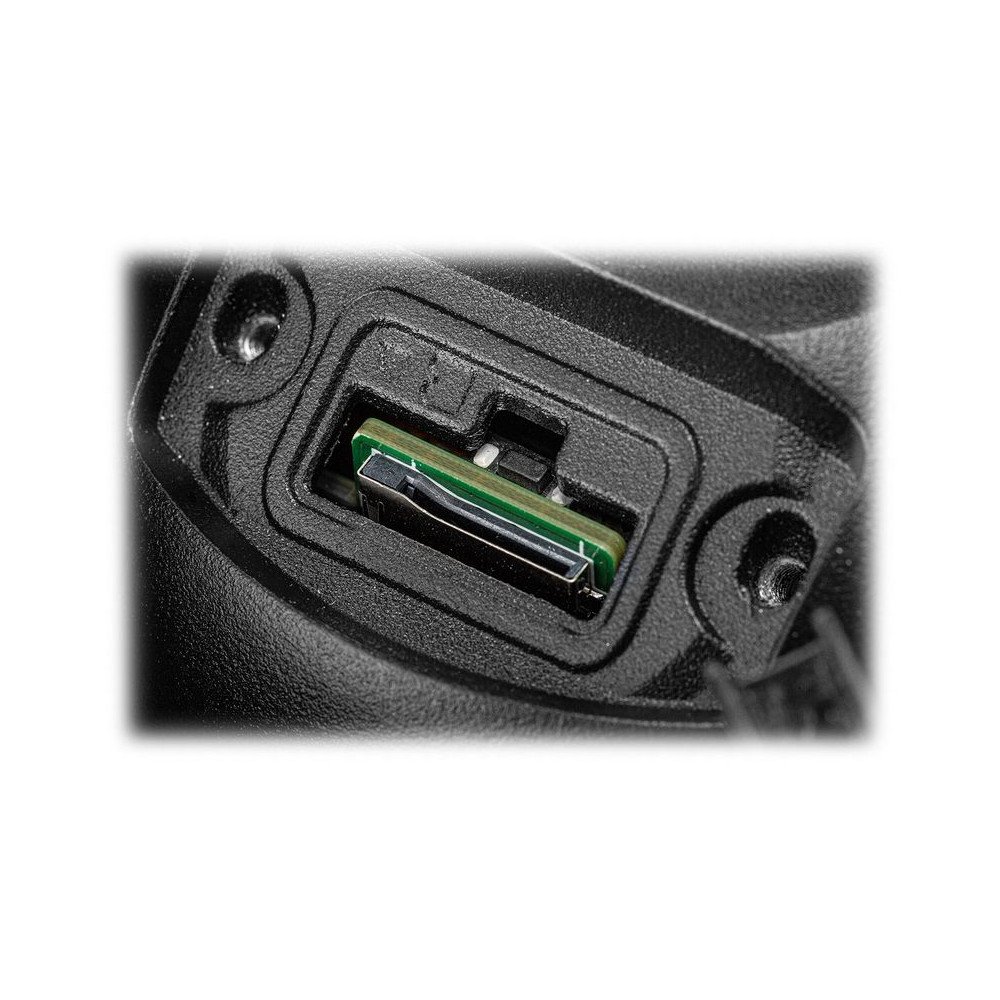

Memory card slot: Micro SD card support up to 512GB
Mobile phone access: Port: 3000 or cloud access (P2P)
Access from PC: Port: 3000 or cloud access (P2P) - PC: Free applicationEasy7 Smart Client Express
Default IP address: 192.168.1.2
Default administrator login/password: admin / -
An administrator password must be set at first startup
Web access ports: 80, 443, 3000, 3001, 3002, 23002
Access port via mobile application: 3000, 3001
PC access port: 3000, 3001
Port ONVIF: 80
Intelligent face analysis:
  • classification of people and vehicles
  • crossing the line
  • intrusion
  • double crossing the line
  • abandoned/missing object
  • parking detection
  • counting people
  • detection of gatherings of people
  • heat map
  • wandering detection in a given area
  • running
  • safety helmet detection
  • detection of people on duty
  • video sabotage
Selected features:
  • WDR - 120 dB - Wide dynamic range of lighting
  • 3D-DNR - Digital image noise reduction
  • F-DNR (Defog) - Reduction of noise related to precipitation
  • ROI - improving the quality of selected image fragments
  • BLC - backlight compensation (background)
  • HLC - High Light Compensation (Spot)
  • ICR - Mechanical infrared filter
  • Day/night mode - configurable
  • Motion detection
  • Privacy zones
  • Sharpness - Sharpening the contours of the image
Power supply:
  • People (802.3AF),
  • 12 in DC / 750 mA
Power consumption: ≤ 9 W

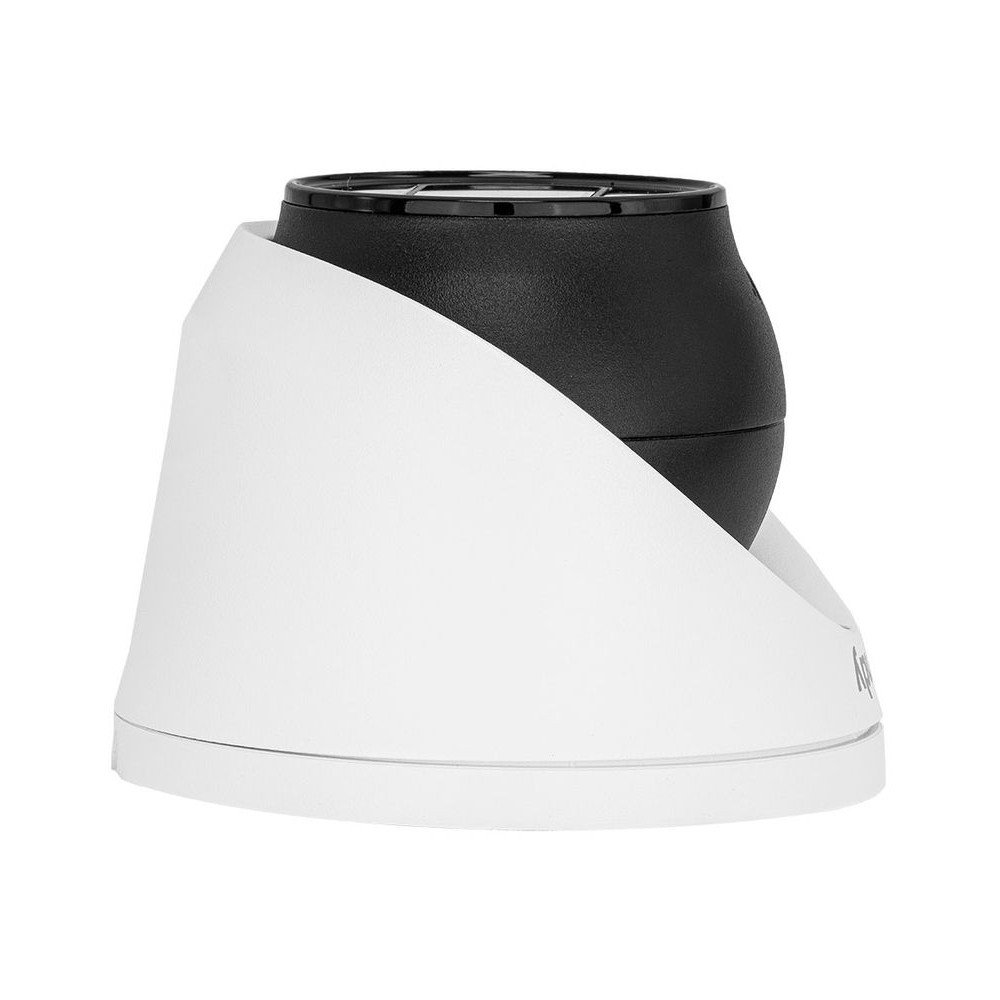

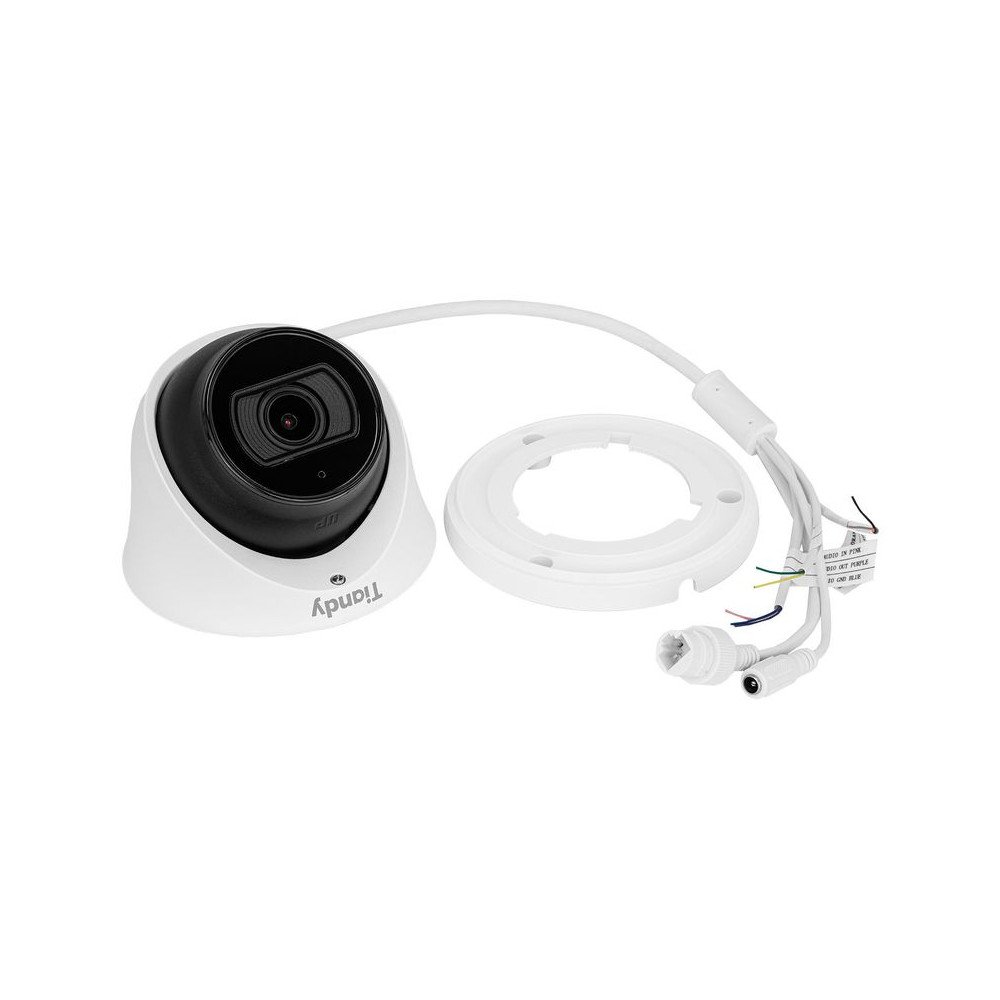

Case: Dome - Metal
Color: White + Black
Tightness class: IP66
Mechanical resistance class:
Operating temperature: -35 °C ... 65 °C
Libra: 0.69 kg

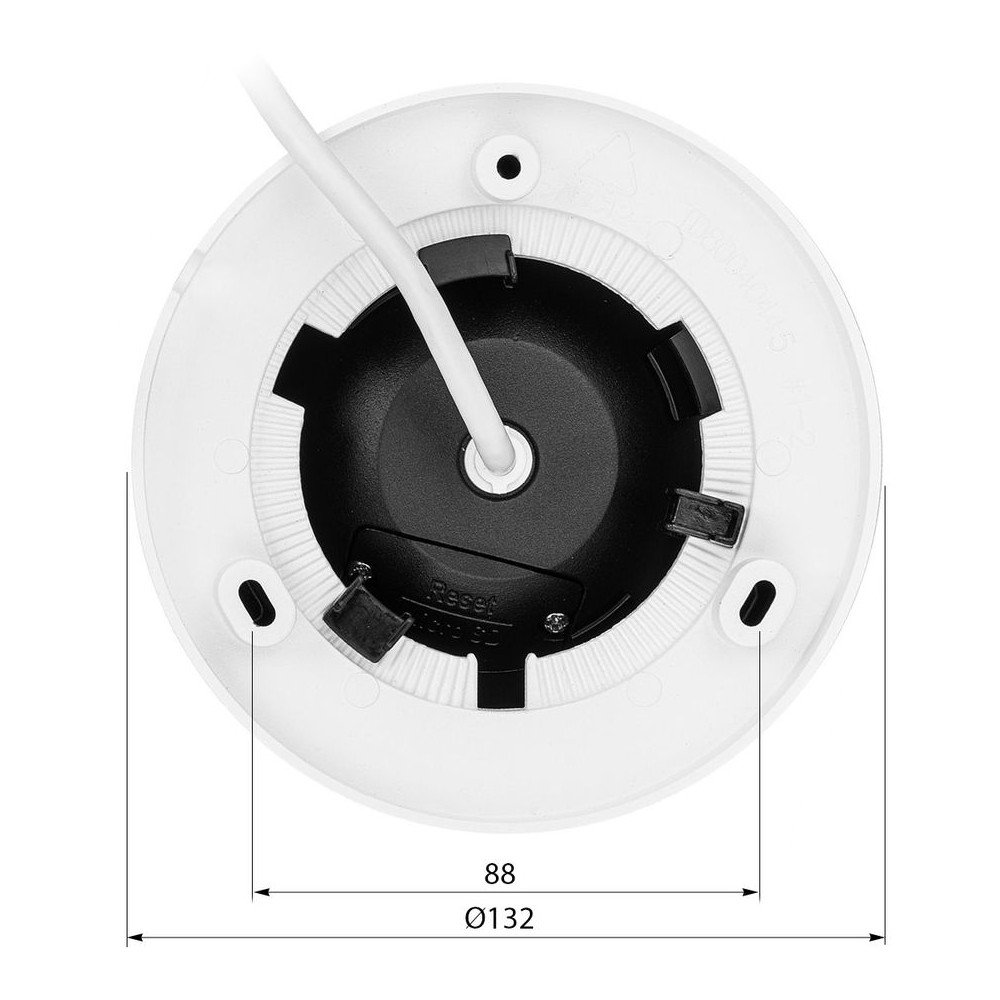

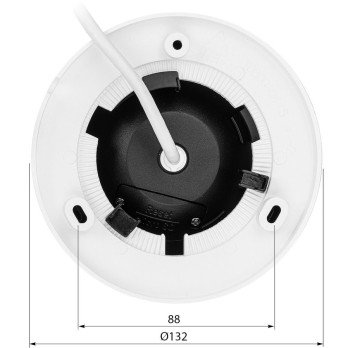

Dimensions: Ø 132 x 108 mm
Supported languages: Polish, English, Albanian, Arabic, Spanish, Korean, French, Dutch, Hebrew, Portuguese, Russian, Thai, Turkish, Vietnamese, German, Ukrainian, Italian
Manufacturer / Brand: TIANDY
Guarantee: 3 lata
Tiandy
NS34289
1 Item

Data sheet

Protocol
ARP
BLE
CIP
GRE
LIN
ONVIF
PoE
Voltage
12V
IP Class
IP66
Image compression method
H.264
H.265
