- 24 Vdc electromechanical barrier for intensive work. The arm can be mounted on the right or left side
- Easy and quick programming of the control panel thanks to its location at the top of the barrier
- Intuitive control panel programming and barrier operation
- Possibility of integrating FTC.S photocells with the FTC.S barrier housing thanks to the hide-away system
- Amperometric anti-crushing protection
- Elliptical arm with a built-in rubber profile and the possibility of being equipped with LED lighting
- Three adjustable limit switches in the opening and closing phases
- 2 mechanical limit switches
- Easy, fast and reliable arm balancing system

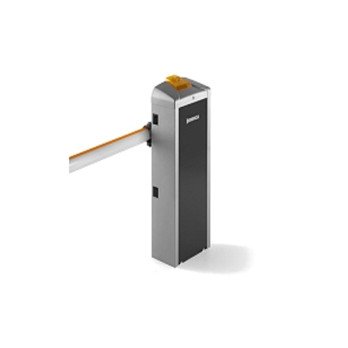

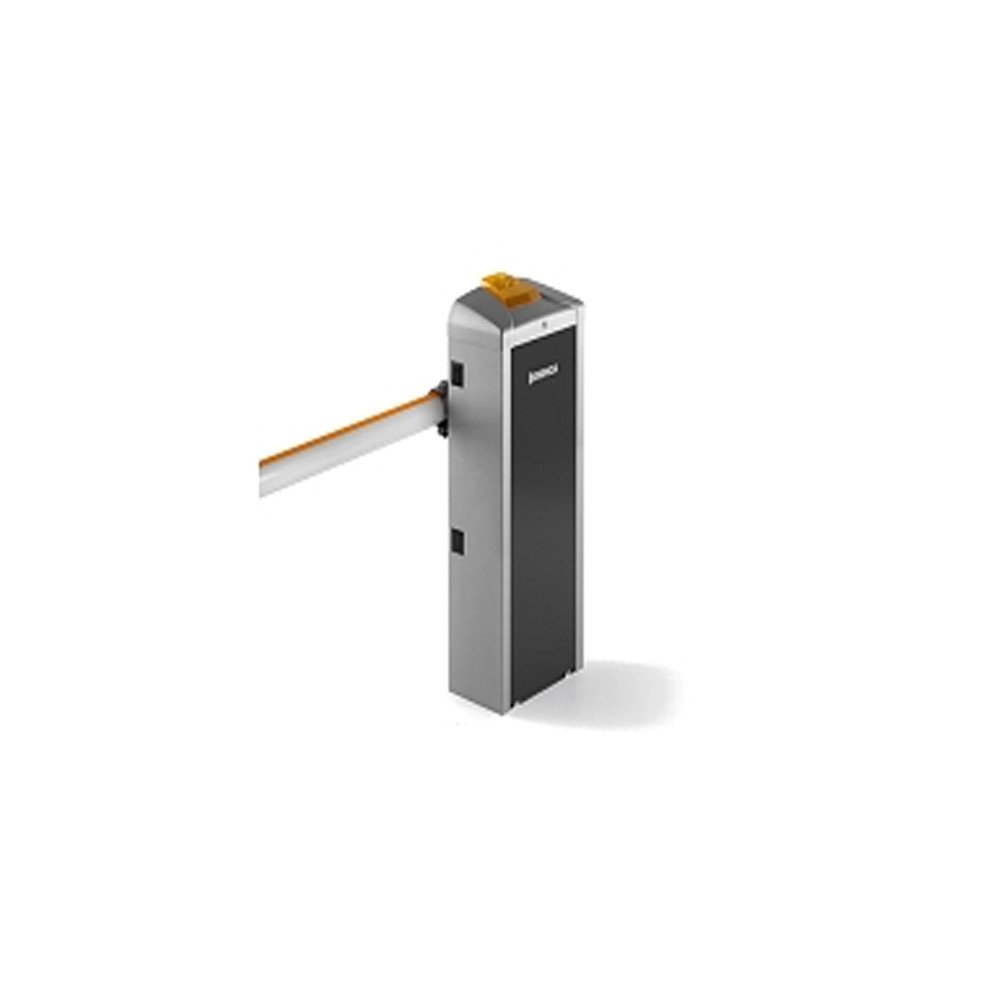

K.EVA.7 basic set
€24,695.91
Tax included
- 24 Vdc electromechanical barrier for intensive work. The arm can be mounted on the right or left side
- Easy and quick programming of the control panel thanks to its location at the top of the barrier
- Intuitive control panel programming and barrier operation
- Possibility of integrating FTC.S photocells with the FTC.S barrier housing thanks to the hide-away system
- Amperometric anti-crushing protection
- Elliptical arm with a built-in rubber profile and the possibility of being equipped with LED lighting
- Three adjustable limit switches in the opening and closing phases
- 2 mechanical limit switches
- Easy, fast and reliable arm balancing system
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The set consists of:
- EVA.7 - central unit with built-in radio receiver, springs, arm holder and integrated lamp housing
- EVA7.2A - aluminum, elliptical arm, 7 meters long, with a plug and rubber profile (arm in 2x 3.5 m sections + EVA7.G connector)
- EVA.AF - fixed support
- EVA.CAT7 - set of stickers
- EVA.L - set of shoulder lamps
- EVA.LAMP - lamp module
- TO.GO2A - 2-channel remote control
- FTC - complete photo chambers
Technical data:
- power supply: 230V AC (50-60 Hz)
- motor power supply: 24V DC
- current: 1.6A
- torque: 285 Nm
- opening time: 5" - 7"
- protection level: IP44
- operating temperature: -20°C/+50°C
- weight: 105 kg
