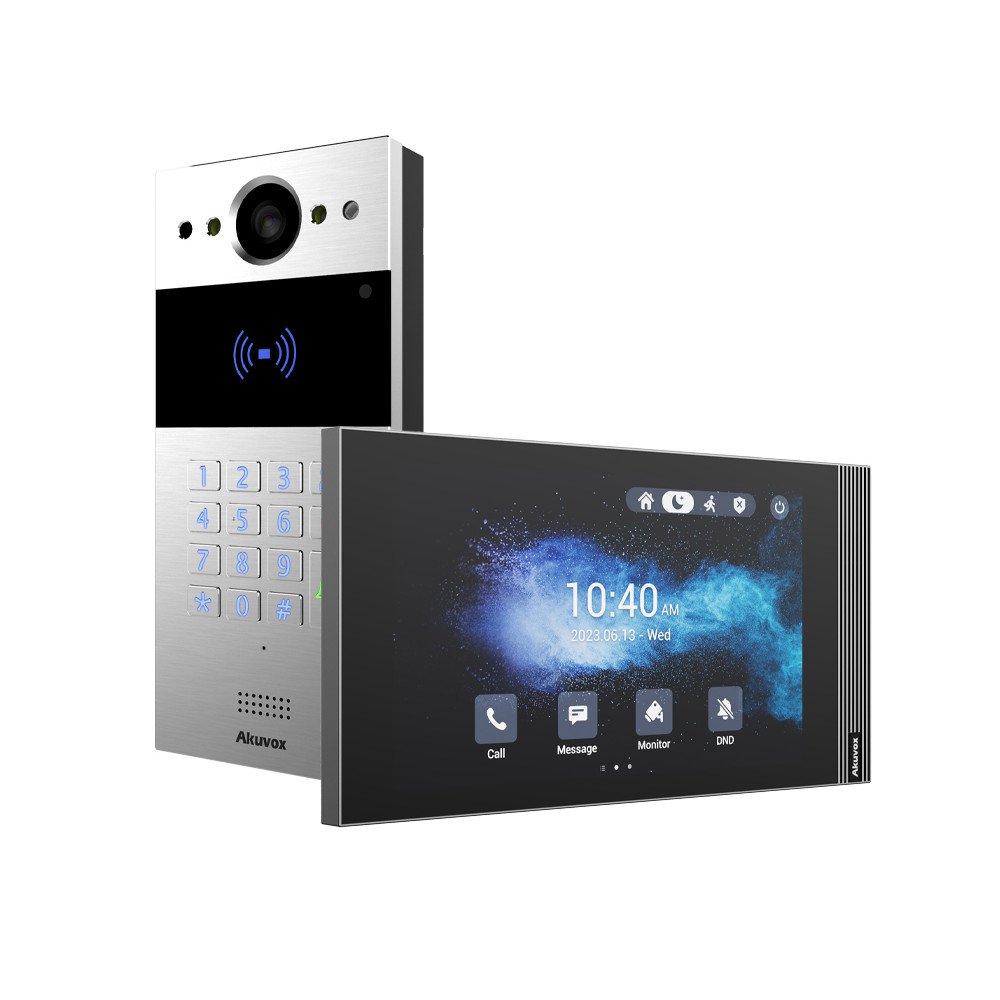

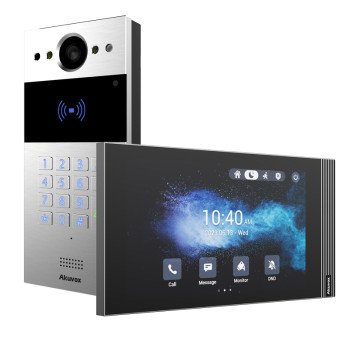

Akuvox Panel R20K + Monitor S562 set

• Akuvox R20K IP outdoor panelx1
• Monitor WideodomoFofonowy IP 7" Akuvox S562" Akuvox S562" Akuvox S562x1

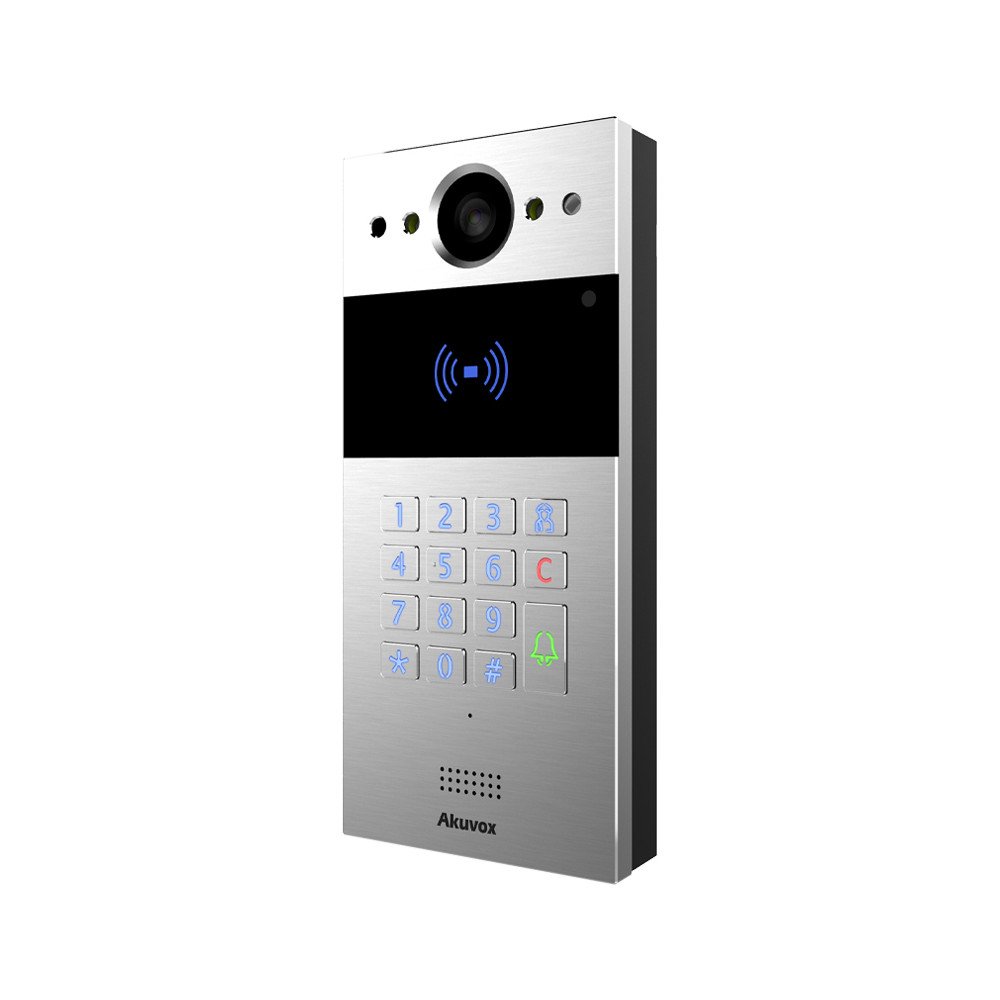

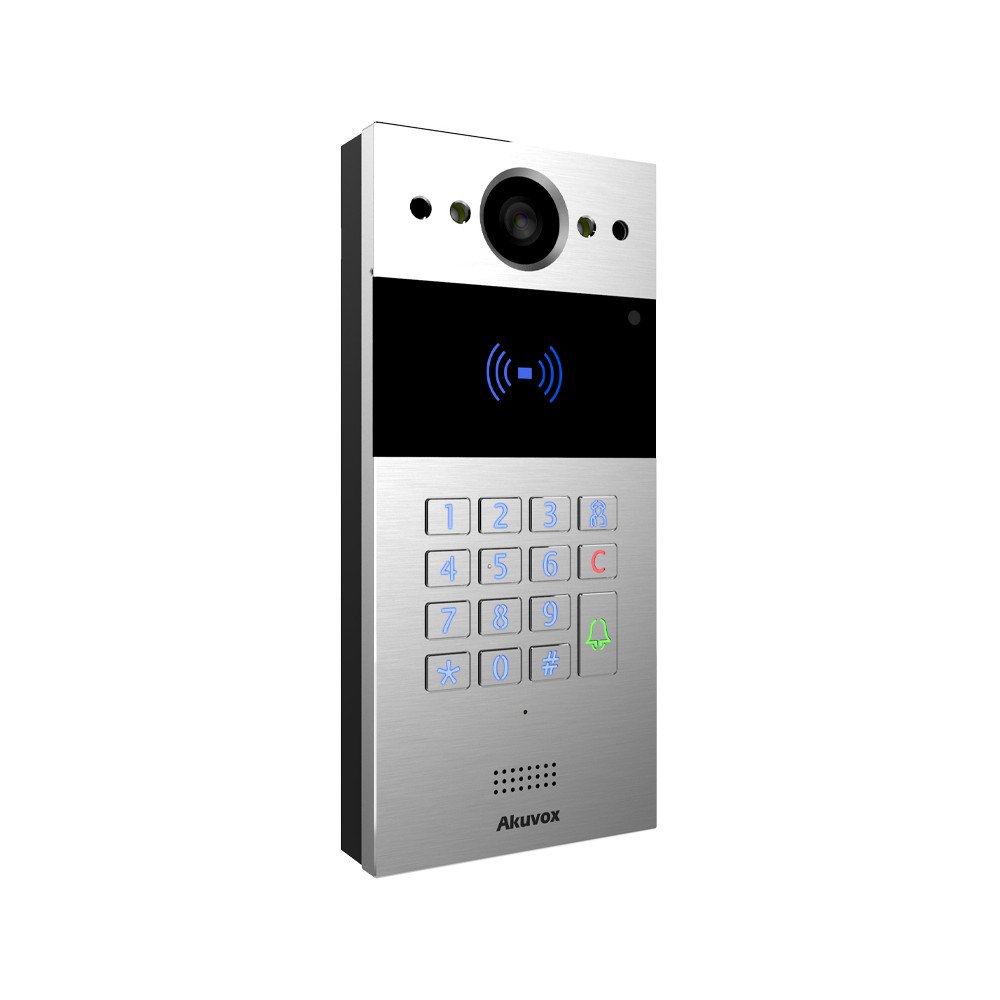

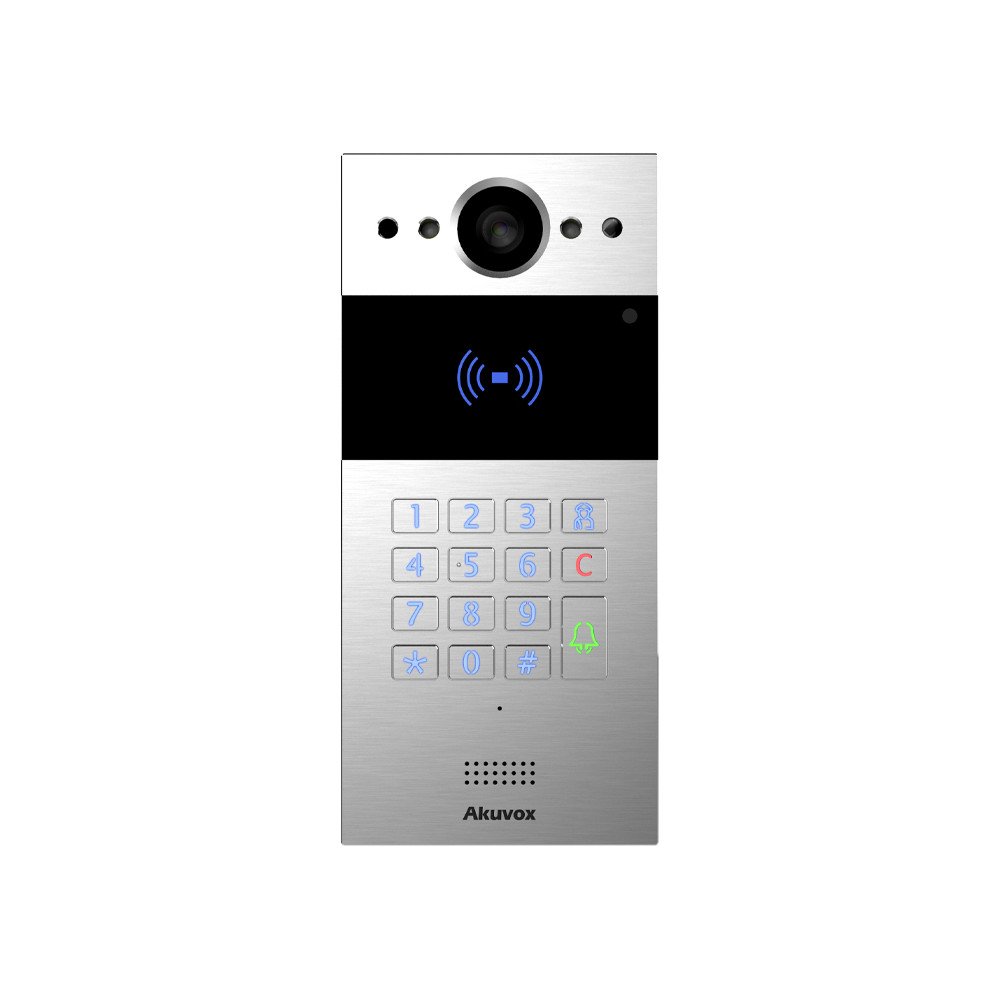

Video intercom thatenablesvisual and voice identification of people entering. It has2 built-inrelays allowing for control2 passes(two doors, a wicket and a gate, etc.),equippedwith Mifare and Unique RF card reader (13.56MHZ 125KHZ).

• Vandal-proof housing with numeric keypad
• Wide-angle camera with night mode
• 2 relay outputs/inputs
• Surface-mounted version
• Power supply via PoE
• Two-way audio communication with echo and noise reduction
• Compatible with the SIP protocol, possibility of cooperation with PBX switchboards and other SIP IP devices, configuration via a web browser, compliant with the ONVIF standard - integration with monitoring systems (CCTV)
• Aluminum housing, IP 65
• RF Card Reader: 13.56MHZ 125KHZ, Wiegand, Onvif

By connecting the system to the Internet, we can remotely operate the video intercom via a dedicated smartphone application. The smartphone can act as a video intercom monitor, providing the ability to answer calls, view and open the entrance from any place with Internet access. The price of the device includes activation of connections via the manufacturer's cloud. Operation can be performed on 4 Android/iOS smartphones. If you want to receive calls on more than 4 smartphones, you must purchase the activation of an additional account for the smartphone at one time directly from the application (max. 9 smartphones). No monthly subscription fees.

• Front panel: IP 65 aluminum alloy
• Camera: 2Mpix, automatic backlight
• Numeric keyboard
• Relay inputs/outputs: 2
• Electronic list of tenants
• number of monitors within 1 premises: 8
• Displaying messages
• Light sensor
• Night lighting: infrared
• Port Wiegand: TAK
• Port RS485: SO
• RFID card reader: 13.56 MHz and 125 kHz
• Microphone: -40dB
• Speaker: 8Ω / 2W
• Output power: 12V/400mA
• Ethernet port: RJ45, 10/100 Mbps auto-negotiation Power-over-Ethernet 802.3af 12V DC connector (if not using PoE)
• Waterproof and dustproof: IP65
• Installation: Surface mounting
• Operating humidity: 10 ~ 90%
• Operating temperature: -20 °C ~ + 55 °C
• Storage temperature: -40 °C ~ + 70 °C

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Wąscopemowymody codek audio: G.711a, G.711μ, G.729
• Wideband audio codec: G.722
• DTMF: IN-BOUND, OUT-BOUND, DTMF (RFC2833), SIP Info
• Comfort: noise and echo reduction system

• Camera: 1/2.7”, CMOS
• Video resolution: CIF, QCIF, VGA, 4CIF, 720p,
• Video codec: H.264
• FPS: 30 at 720p
• Max. image transfer rate: 720p – 30 fps
• Viewing angle: 110°(H)/58°(V)
• Illumination with infrared diodes at night
• Sensitivity: 0.1 Lux

• Obsługa protokołów: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

• Relays individually controlled by DTMF tones
• The camera works in continuous mode
• Night mode with IR LED lighting
• White balance: automatic
• Minimum illumination: 0.1 LUX

The video intercom works with drives from leading manufacturers, e.g. Beninca, FAAC, Nice, Somfy. Opening the gate with a button directly from the video intercom monitor or a smartphone with an installed mobile application.

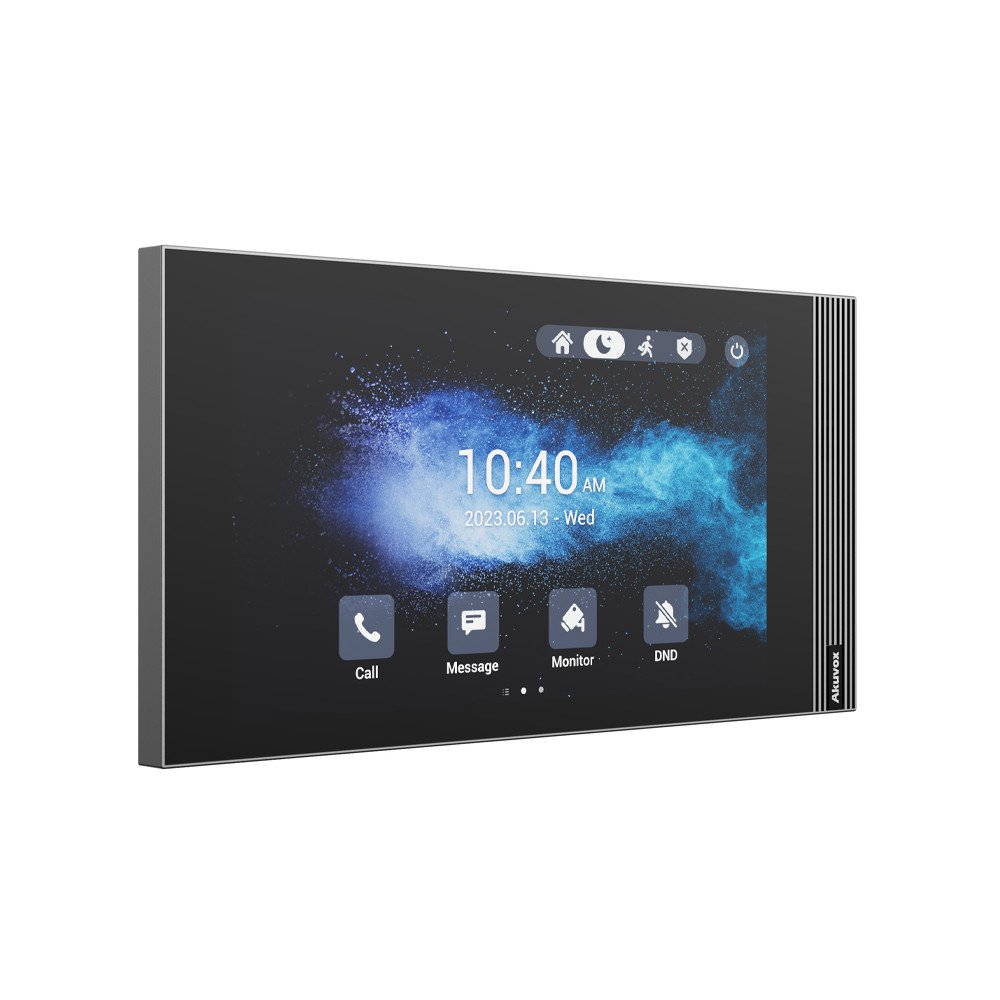

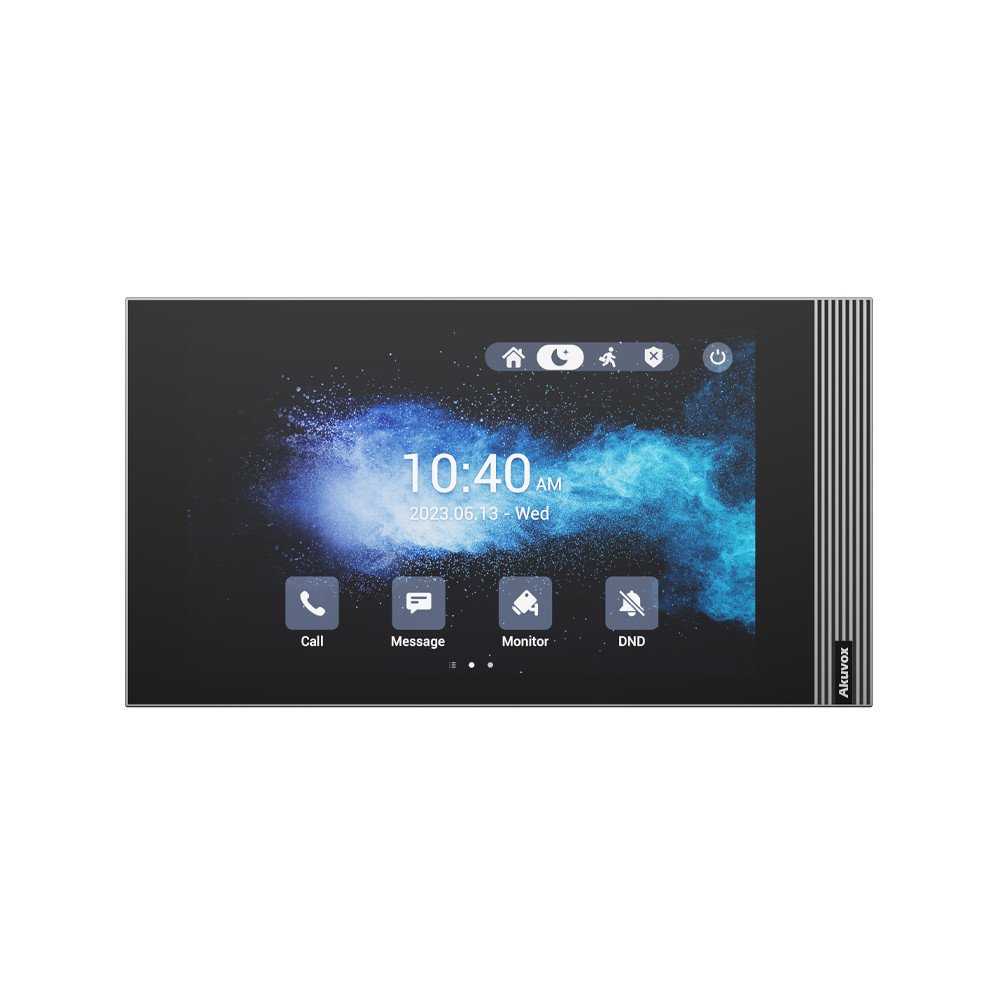

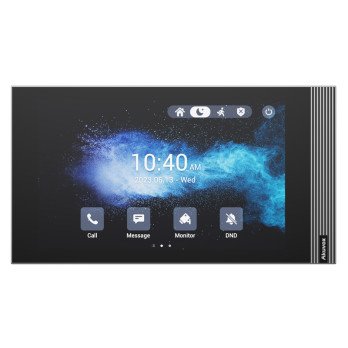

• 7" capacitive touch screen
• Resolution: 1024 × 600
• System: Linux
• 8 alarm inputs and 1 built-in relay
• Power supply: PoE (IEEE802.3af)
• Dimensions: 216.4x118.8x21.7 mm

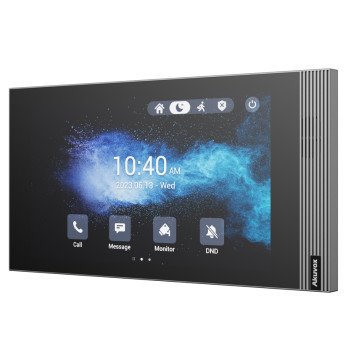

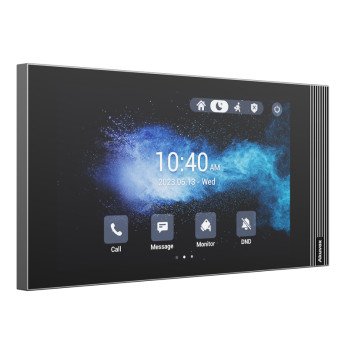

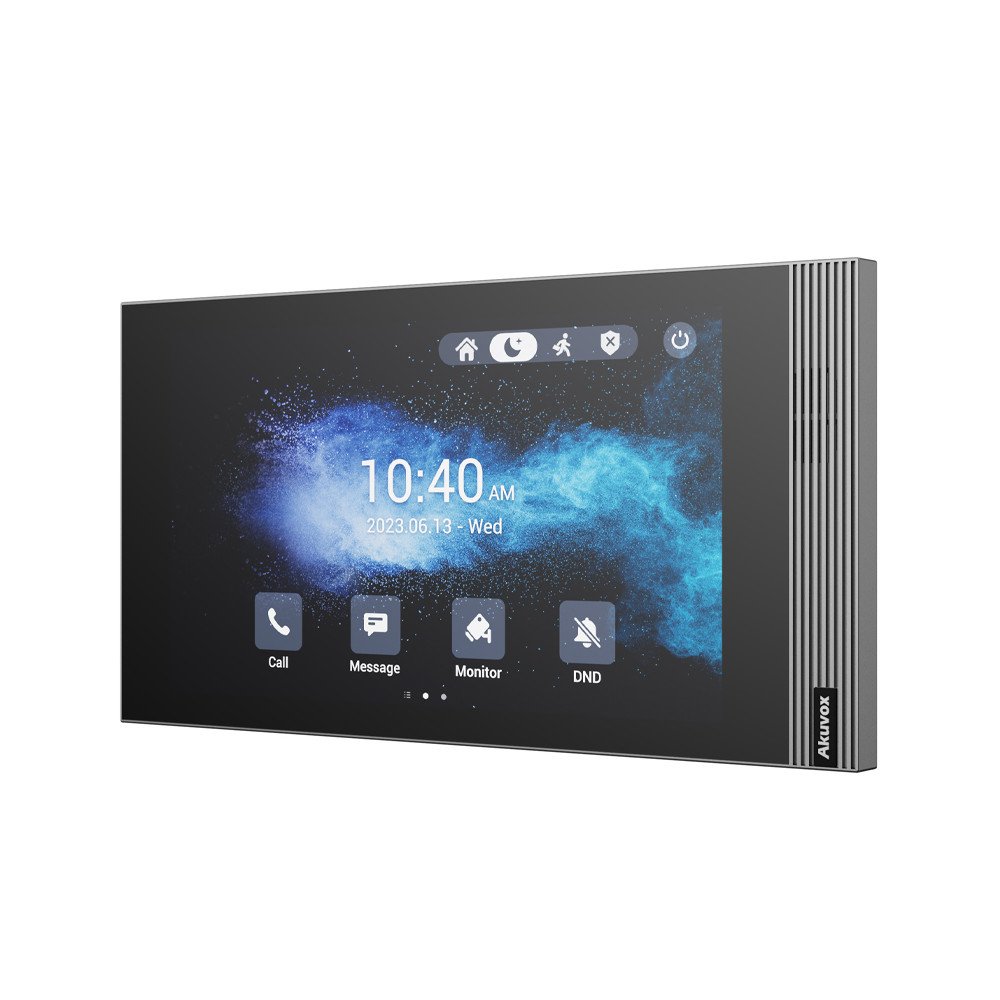

The Akuvox S562 monitor is a real treat for technology lovers. With a front-firing speaker and a 1024x600 display, it delivers excellent sound and clear, detailed images, offering users an exceptional audio-visual experience.

S562 is also a complement to any modern interior. Its slim body decorated with a linear grill that hides the loudspeaker gives it a coherent and refined look, perfectly matching the minimalist style of modern homes.

However, it is more than just a home intercom. The S562 supports integration with surveillance cameras, allowing users to transmit and view live images from both video intercom panels and third-party external cameras such as Tiandy.

The S562 has a 7-inch capacitive touchscreen, runs on Linux OS and supports 8 input channels and 1 built-in relay. It provides support for the RS485 standard. Additionally, the S562 monitor offers PoE power supply and the possibility of mounting on a typical electrical box, which facilitates its installation. Its dimensions allow for aesthetic and discreet installation in any home. With S562, your communication will become extremely simple and intuitive.
