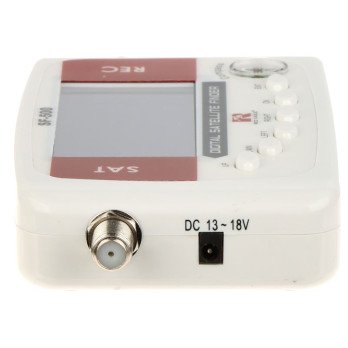

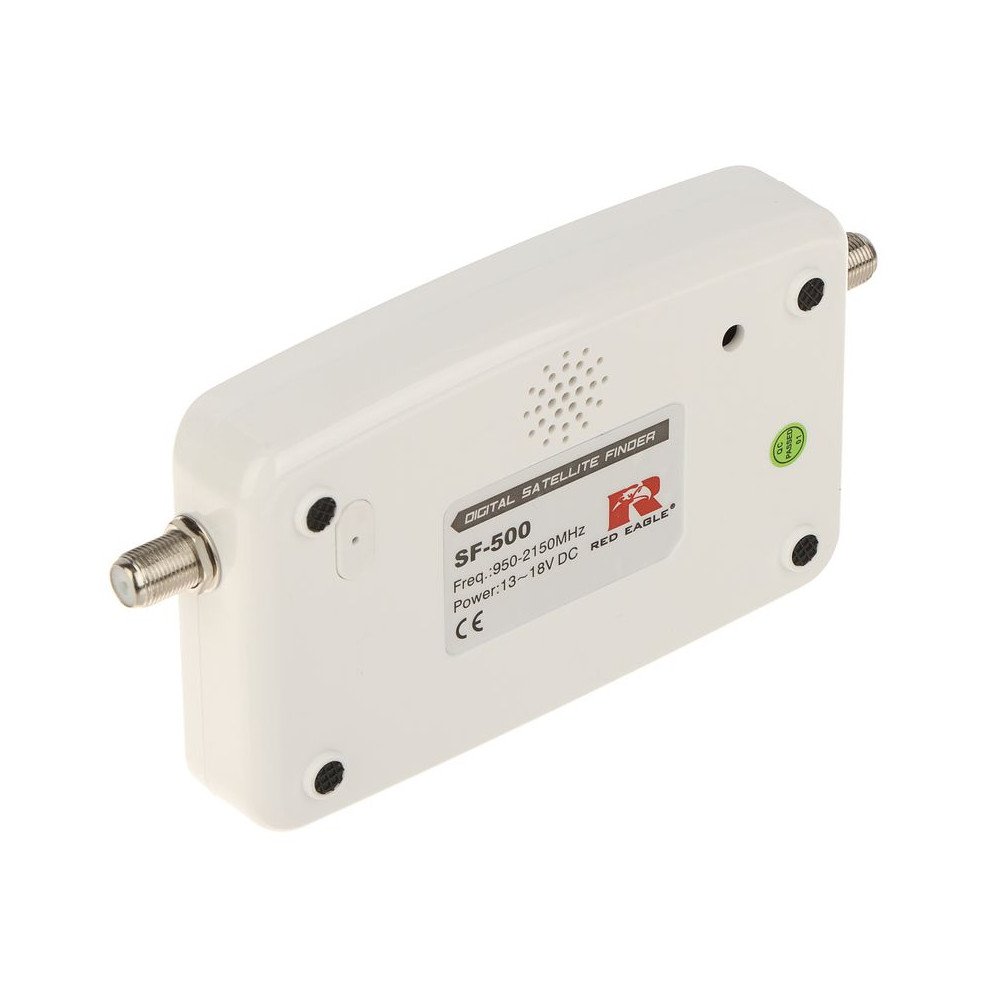

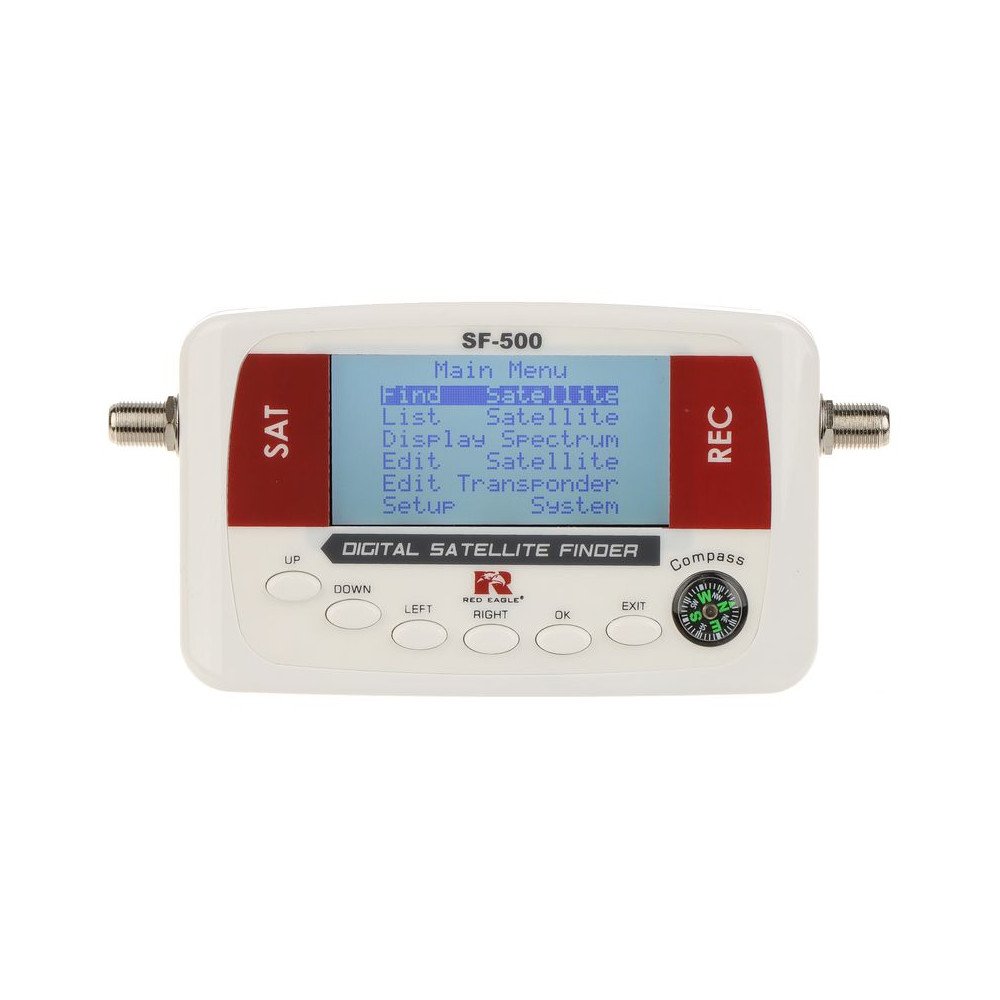

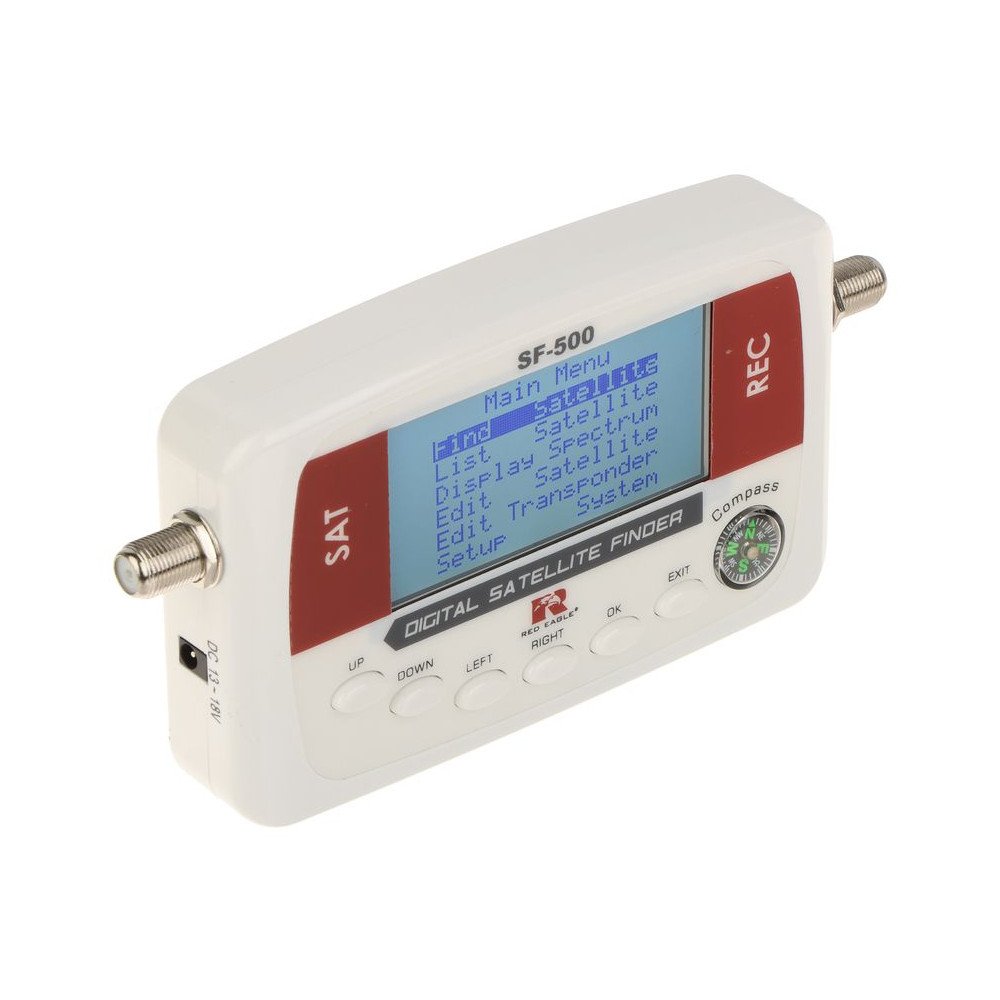

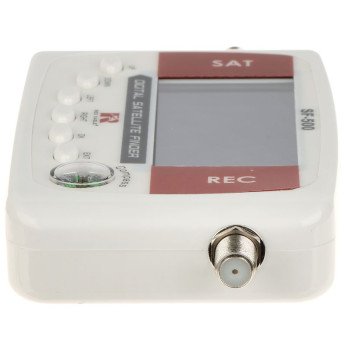

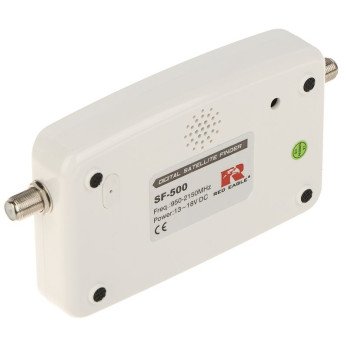

SF-500 DVB-S/S2 SATELLITE METER

€240.97

Tax included

Frequency range: 950 MHz ... 2150 MHz
Signal level: -65... -25 dBm
Display: TFT LCD
Selected features: measurement of DVB-S / DVB-S2 signals

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

The SF-500 satellite meter allows you to quickly align your satellite dish.

The SF-500 is equipped with a clear menu that will certainly facilitate the work of every installer. Several satellite positions have been entered into the device (satellites + transponders)

The SF-500 model allows you to measure DVB-S/S2 signals

Attention!

The built-in compass is too imprecise to correctly determine the direction

Output and input:	F-socket / F-socket
Frequency Range:	950 MHz ... 2150 MHz - measurement of DVB-S / DVB-S2 signals
Signal Level:	-65 ... -25 dBm
Converter power supply:	13/18 V, max. 500mA
Switching between bands:	22 kHz
DiSEqC:	1.0
Modulation:	QPSK, 8PSK, 16APSK, 32APSK
Symbolic speed:	2 ... 45 Msps
Battery powered:	5 pcs AA (Batteries)
Power supply:	13 V DC / 1 A
Display:	TFT LCD
Selected features:	Measurement of signal strength and quality Support Ku band/C band LNB Satellite position detection and identification Sound signaling DiSEqC and 22kHz signal support measurement of DVB-S / DVB-S2 signals
Libra:	0.14 kg
Dimensions:	154 x 78 x 28 mm
Guarantee:	2 lata
